Parker MiniKrimp Crimper
Parker Crimper Advantage
With Parker crimping equipment, anyone can make factory quality hose assemblies quickly, easily and cost effectively.
- Parker's eight segment crimp dies provide a smooth, even 360 degree crimp.
- Bottom-loading operation makes it easy to handle long hose assemblies.
- Parker dies are linked to keep die segments together - no loose parts to mismatch.
- Parker dies are color-coded for easy identification and fast set-up.
- Parker's exclusive Parkalign feature positions the fitting in the dies perfectly every time.
|
|
Parker MiniKrimp Hose CrimperFeatures: Light weight, portable, compact all-in-one unit; Handpump or air over hydraulic design Dimensions: 6” wide, 13” deep, 15” high Weight: 42 lbs (with hand pump), 45 lbs (with hydraulics) Rating: 30 ton force @ 10,000 psi maximum Cycle time: 30 seconds Use with hoses: 201, 206, 213, 225, 244, 266, 285, 295, 301, 302, 304, 341, 381, 422, 424, 426, 431, 436, 601, 604, 811, 881, 881, 221FR, 301LT, 351ST, 351TC, 421WC, 451ST, 451TC, 471ST, 471TC, 472TC, 482ST, 482T, 811HT, AX, BXX Fitting series: 25, 26, 43, 81 and HY Series Sizes: 1/4" - 3/4" I.D. CAUTION: DO NOT use this machine to assemble any size 56, CG, 93N, or 43 series Stainless Steel fitting. Use a minimum of a 60 ton crimp machine such as the Karrykrimp 2 |
Parker MiniKrimp Models
MiniKrimp - Hand Pump (94C-001-PFD)
MiniKrimp - Air Over Hydraulics (94C-002-PFD)

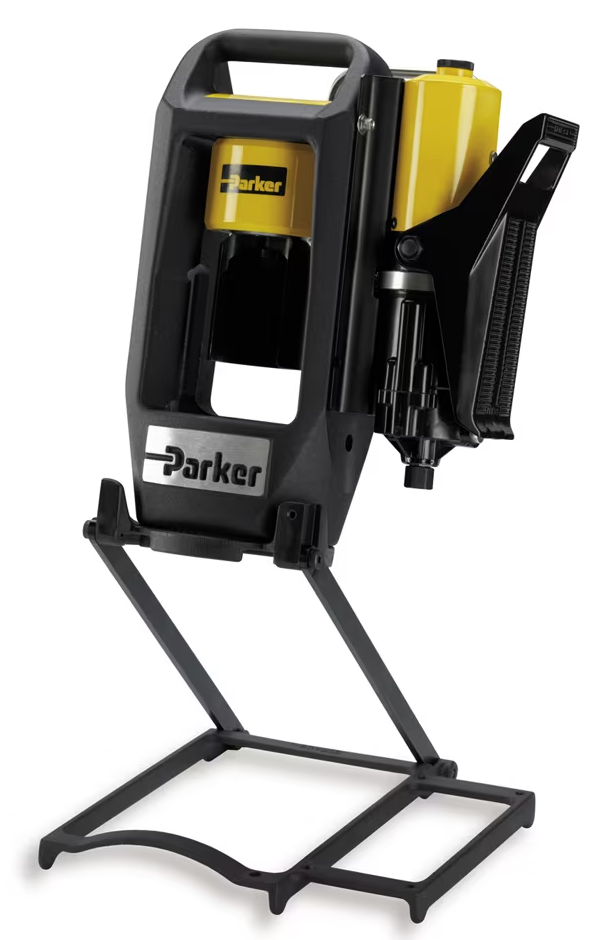

MiniKrimp - Air Over Hydraulics With Stand (94C-002-PFD-WS)
Parker MiniKrimp - Accessories
| Part | Part Number |
| Air Over Hydraulic Pump Upgrade Kit | 025411 |
| Upright Vise Mount | 015307 |
| Side Vise Mount | 015736 |
| Table Mount | 015306 |
| High Pressure Hose Assembly (Hand Pump) | 045234 |
| High Pressure Hose Assembly | 015309 |
| Folding Stand | 94C-MKS |
| Hand Pump Replacement Connector | 015308 |
| Air Over Hydraulic Replacement Connector | 025349 |
