Parker Parkrimp 2 Vertical Design Crimper

Parker Crimper Advantage

With Parker crimping equipment, anyone can make factory quality hose assemblies quickly, easily and cost effectively.

  • Parker's eight segment crimp dies provide a smooth, even 360 degree crimp.
  • Bottom-loading operation makes it easy to handle long hose assemblies.
  • Parker dies are linked to keep die segments together - no loose parts to mismatch.
  • Parker dies are color-coded for easy identification and fast set-up.
  • Parker's exclusive Parkalign feature positions the fitting in the dies perfectly every time.

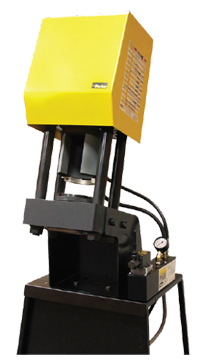

Parker Parkrimp 2 crimper

Parker Parkrimp 2

Features: Easy to use vertical design; Crimps full range of Parker hoses from 1/4” through 2” I.D.; Crimps both steel and stainless steel fittings.

Dimensions: 28” wide, 22” deep, 70” high

Weight: 842 lbs (Head is 558 lbs and base is 284 lbs)

Rating: 125 ton force @ 5,000 psi maximum

Cycle time: 30 seconds without adapter bowl;  20 seconds with adapter bowl

Use with hoses: 201, 206, 213, 221FR, 225, 244, 266, 285, 293, 301LT, 302/301, 304, 341, 351ST, 351TC, 381, 421WC, 422, 424, 426, 431, 436, 451ST, 451TC, 471ST, 471TC, 472TC, 482ST, 482TC, 601, 604, 701, F42 (-8 ONLY), 711, 721, 721ST, 721TC, 731, 761, 772ST, 772TC, 774, 781, 782ST, 782TC, 791TC, 792ST, 792TC, 811, 811HT, 881, 881, AX, BXX, CAH, F42, P35/78C, SS25UL

Fitting series: 25, 26, 43, 70, 71, 73, 76, 78/S6, 79, 81 and HY series

Sizes: 1/4" - 2"
