Constant Wattage Electric Trace Tubing | Parker CH

 Note: Parker Hannifin no longer offers this product. The information included here is for reference only.

Constant Wattage Electric Trace-High Temperature

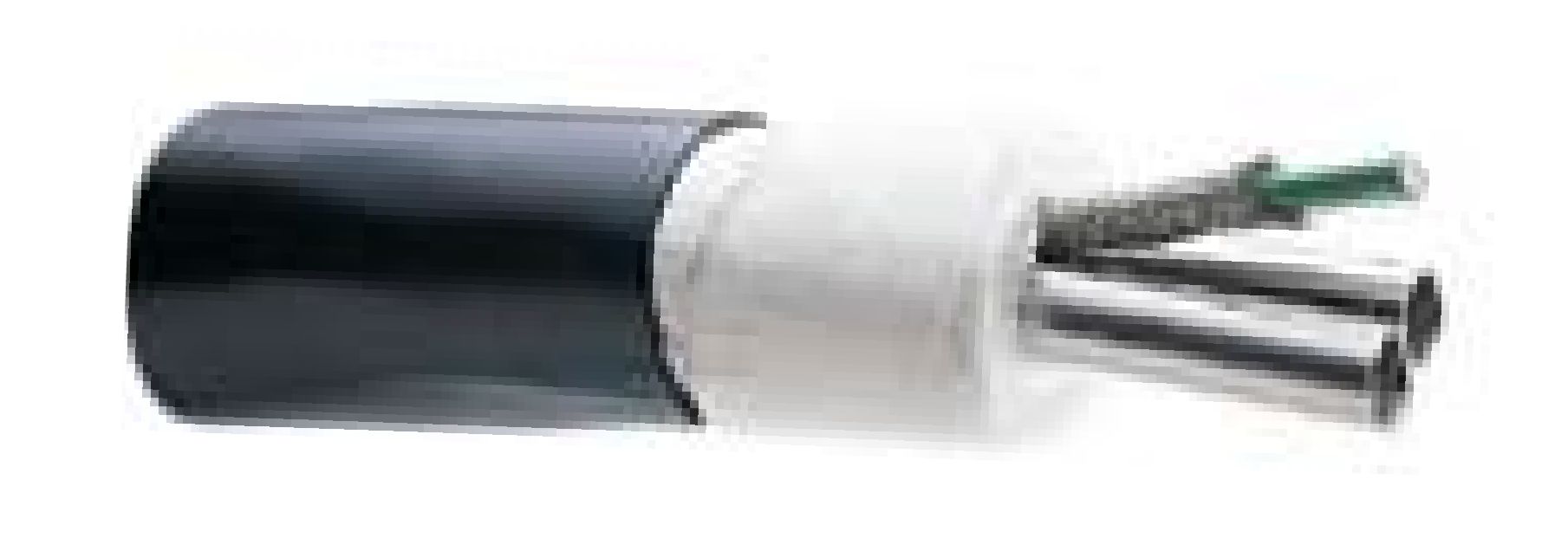

Parker CH Constant Wattage Temptrace™ electric trace tubing consists of process tubes traced with a constant wattage heating cable, a heat transfer foil wrap, a nonhygroscopic glass fiber insulation and a black, 105° C rated, flame-resistant PVC (FR PVC) jacket.



 Parker HT Tubing

Performance Data



Parker CH Constant Wattage Temptrace™ is designed for various temperature ranges including: Process temperature maintenance of 160° at -40° F (-40° C) ambient temperatures to 400°F (204°C) at 80°F (26.7°C) ambient. Contact the factory for complete design capabilities for your application. Standard product has a Maximum Temperature Rating (MTR*) of 400° F (204.4° C), Power-On.

*Maximum Temperature Rating is the maximum allowable temperature of the tracing fluid. Temperatures in excess of this may damage the product or alter its performance.

Applications

Analyzer, impulse and instrument lines; small diameter process lines; stack gas sampling lines; and utility lines.

Tubing

Type 122 DHP Seamless Copper and 316/316L Welded and Seamless Stainless Steel, PFA, FEP and PTFE are standard. Wall thicknesses are available upon request, please contact us.

Tubing Identification

When process tubes are the same size and materials, each individual tube is printed with tube number at two-inch intervals or color code.

Heat Transfer Foil

An aluminum heat transfer foil for even heat distribution for precise temperature control.

Insulation

Air-spaced, cross wrapped applied non-hygroscopic fiberglass thermal insulation for minimum heat loss.

Jacket

The tough, black, 105°C rated, flame-resistant PVC (FR PVC) jacket, protects the tubing against corrosive atmospheres, water, oils, acids, alkalies, and most chemicals. Additional jacket materials are available upon request. For Material Specifications of jackets, please contact us.

Testing

Each tube in every length of Parker Temptrace is pressure tested prior to shipment to assure the instrument engineer a high quality, reliable, trouble-free product. For Testing Specifications, please contact us.

Accessories

Accessories are available for electrical connections, bundle splicing and end terminations. Accessories for constant wattage bundles are
identified in this section.


NOTE: It is absolutely necessary to seal the ends against contamination from moisture and/or corrosive liquids. Neither Parker Hannifin and/or Hose & Fittings, Etc. can assume any liability for product damage caused by moisture from unsealed ends.
