Pipe Systems for Compressed Air, Vacuum & Inert Gas | Parker Transair

Transair piping system  Parker Transair is a fast, adaptable, and easy to modify aluminum pipe system for compressed air applications. Transair is also suitable for vacuum and inert gas applications.

Quick connections eliminate the need to thread or solder pipe. The lightweight aluminum pipe is easy to handle and safe to work with on elevated platforms.

Transair offers significant savings on installation, maintenance and operating costs, making it the most cost effective and efficient pipe system for compressed air, vacuum, and inert gases.



Suitable Fluids

  • Compressed Air:
    • Dry Compressed Air
    • Wet Compressed Air
    • Lubricated Compressed Air
  • Vacuum: 97% (29.6" Hg)
  • Inert Gases
  • Contact us for other fluids

Working Pressure

  • Except 6" Diameter:
    • 232 PSI (-4°F to +115°F)
    • 188 PSI (-4°F to +140°F)
  • 6" Diameter: 188 PSI

Temperature Range

  • Max Working: -4°F to +140°F
  • Storage: -40°F to 176°F

Download Assembly Guide

Transair Connections | Optimum Connection for Every Pipe Size

Connections for Ø 16.5 mm, Ø 25 mm & Ø 40 mm Piping

Transair Push-In Connector Pipe-to-pipe and male connectors in 16.5 mm (1/2"), 25 mm (7/8"), and 40 mm (1-1/2") sizes can be immediately connected to Transair pipe by simply pushing the pipe into the connector up to the connection mark. The gripping ring of each fitting is then automatically secured and the connection is completed.

Connections for Ø 63 mm Piping

Transair Double-Clamp Ring Connection Pipe-to-pipe and male connectors in 63 mm (2-1/2") size can be quickly connected to Transair aluminum pipe by means of a double clamp ring. This secures the connection between the nut and the pipe. Tightening of the nuts secures the final assembly.

Connections for Ø 76 mm, Ø 100 mm & Ø 168 mm Piping

 Transair Cartridge-and-Clamp Connection Pipe-to-pipe and male connectors in 76 mm (3"), 100 mm (4") and 168 mm (6") can be quickly connected to Transair aluminum pipe by using the Transair cartridge and clamp. Position the pipes to be connected within the Transair cartridge, then close and tighten the Transair clamp.



Transair Piping System | Most Cost Effective Piping System for Air & Inert Gas

Clean Air

Transair’s aluminum pipe ensures a total absence of corrosion. With no formation of rust on the inside of piping, the Transair inner pipe surface consistently delivers clean compressed air. The rust particle free air prevents problems caused by rust, thus increasing working life of system components and tools. Maintenance costs are reduced by less frequent replacement of tools and components, as well as less frequent changes of filtration elements.

Optimal Flow Rate

The “full bore” design of Transair’s components, the low friction coeficient of the aluminum pipe, and the sealing characteristics of the system ensure optimal and constant flow throughout the system. The Transair innovative technology provides better performance both in terms of improved flow and reduced pressure drop.

Ideal for Aggressive Environments

Dust and outdoor installations widely accelerate the deterioration of compressed air systems. To combat these elements, Transair piping is made from aluminum, which is naturally resistant to corrosion. To further enhance mechanical, physical and chemical properties (and the resistance to degradation as a result of industrial environment), the outside of Transair piping is specifically powder coated. The result is a lightweight piping system, resistant to corrosion, aggressive environments, mechanical shocks, thermal variations, mineral compressor oils, synthetic compressor oils, compressor oil carry over, and ultraviolet (UV) rays - all of which ensures extended longevity of your equipment and can help to avoid frequent changes of filter elements.

Eco-Friendly Product Design

The material used to manufacture Transair pipe and fittings are 100% recyclable, and meet the requirements set by the U.S. Green Building Council for Leadership in Energy and Environmental Design (LEED) certification credits.

Transair piping systems have been specifically designed to ensure a lower impact on the environment with a low carbon footprint, when compared to traditional piping systems. In a life cycle analysis, from production of raw materials to end of product life, the use of a six inch Transair pipe system is five times less harmful to the environment than a traditional steel pipe system.

Quick Connect Technology/Adaptability

Transair is the most versatile compressed air piping system available. The Transair connections are simply pushed or bolted together. Therefore, Transair can be easily disassembled when required (unlike other connection technologies that are permanently crimped or welded). Furthermore, the individual Transair components can be reused to modify an existing piping system – or to build a new one.

With Transair’s reusable and interchangeable components, manufacturing plant personnel can implement many layout changes within minutes, instead of hours. This ease of use minimizes downtime, and increases plant productivity and efficiency. Download Assembly Guide



Pipe System Part Selection

Transair Rigid Aluminum Pipe
Transair Rigid Aluminum Piping





Transair Flexible Hose
Transair Flexible Hoses



Transair Straight Connectors
Transair Straight Connectors



Transair 45 degree connections
Transair 45° Connectors

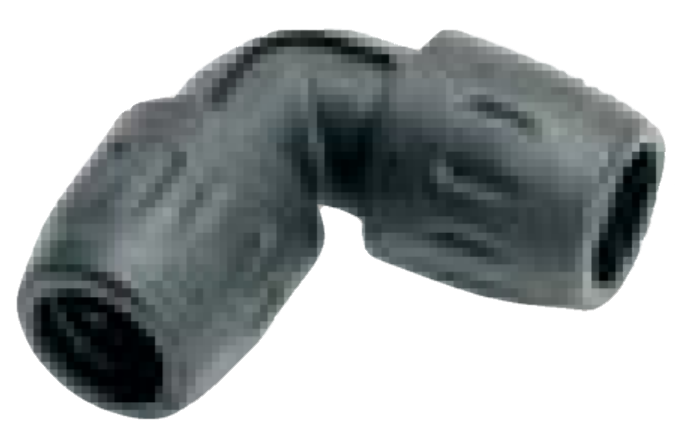

Transair 90 degree connectors
Transair 90° Connectors

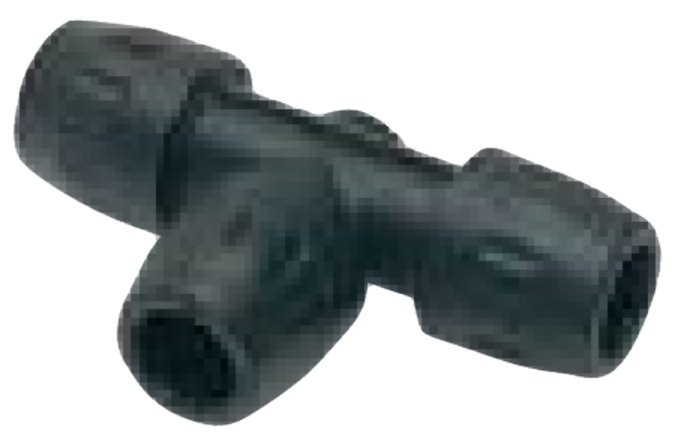

Transair Tee Connectors
Transair Tee Connectors



Transair Plug-In-Reducers
Transair Plug-in Reducers

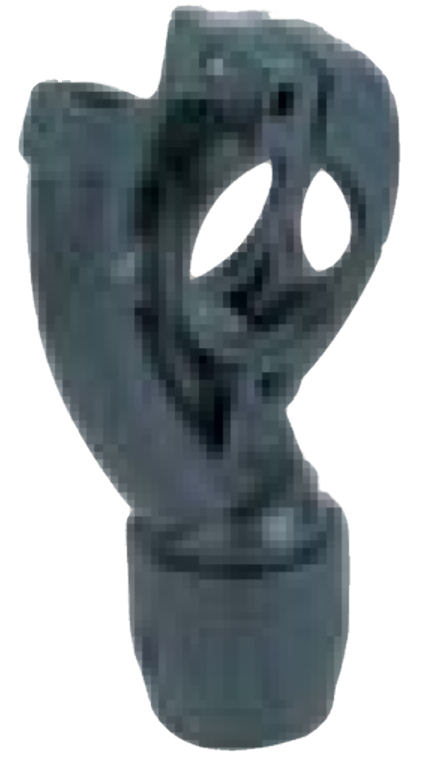

Quick Assembly Brackets
Transair Quick Assembly Brackets



Transair Wall Brackets
Transair Wall Brackets



Transair Pressurized System Outlets
Transair Pressurized System Outlets



Transair Valves
Transair Couplers
