Parker Transair - Advanced Air Pipe Systems | End Caps

The range of Transair pipe-to-pipe and stud connectors provides versatility of design and helps to overcome constraints often encountered with the structure of industrial buildings.
  • Quick connection
  • Full bore design (consistent inner diameter for both pipe and connectors)
  • Connectors are interchangeable and reusable
  • Non-flammable materials (UL94-HB standard)


Vented End Cap

Transair Plug-in Reducer Transair Plug-in Reducer

Vented End Cap - Ø16.5/25/40 (mm)


Transair

ØD

E

ØG

H

L

66251700

16.5

25.5

34.0

45.5

62.5

66252500

25

33.0

44.5

47.0

75.0

66254000

40

34.5

67.0

55.0

98.5

16.5mm: supplied with LF3000 6mm plus. Model Ø 25, Ø 40 and Ø 63: supplied with LF3000 5/16" (8mm) plug.


Transair Plug-in Reducer Transair Plug-in Reducer

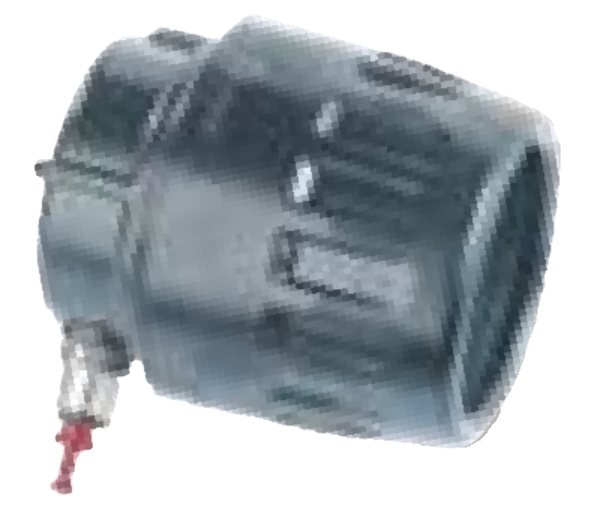

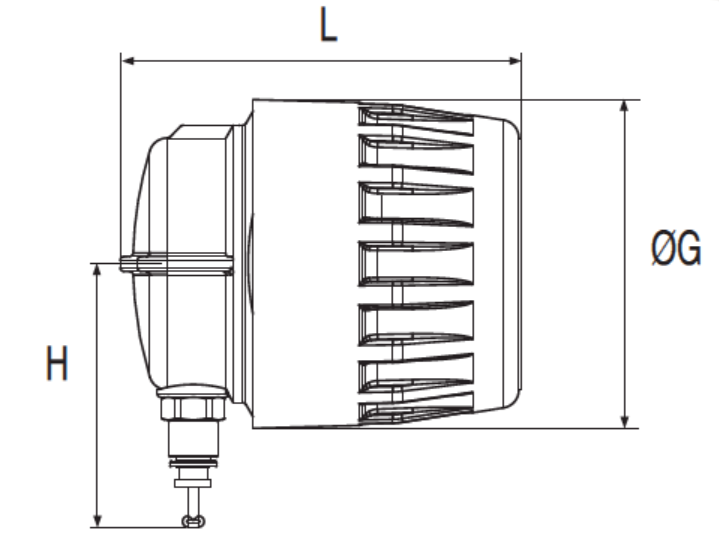

Vented End Cap - Ø63 (mm)


Transair

ØD

E

ØG

H

L

6625 63 00

63.0

31.0

91.0

74.0

111

16.5mm: supplied with LF3000 6mm plus. Model Ø 25, Ø 40 and Ø 63: supplied with LF3000 5/16" (8mm) plug.


End Cap

Transair Plug-in Reducer Transair Plug-in Reducer

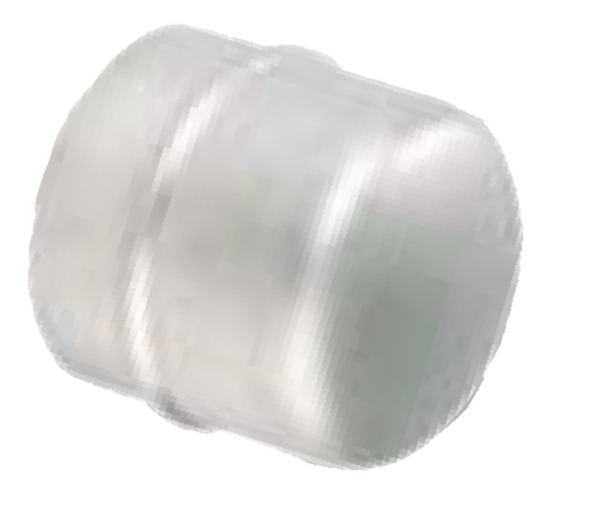

End Cap - Ø76 (mm)


Transair

ØD

L

RX25 L1 00

76.0

99.6

RX25 L3 00

100

107.4

Use one connector (RR01) to connect end caps (RX25) to Transair pipe.


Transair Plug-in Reducer Transair Plug-in Reducer

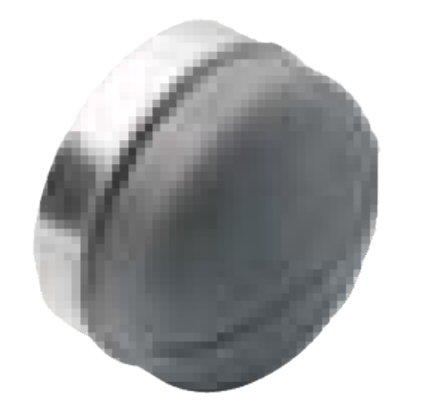

End Cap - Ø168 (mm)


Transair

ØD

L

RA25 L8 00

168.0

117

Use one connector (RR01) to connect end caps (RA25) to Transair pipe.

Note: As of January 2017, part number RA25 L8 00 has been obsoleted and replaced with part number RA25 L8 04.
