    The range of Transair pipe-to-pipe and stud connectors provides versatility of design and helps to overcome constraints often encountered with the structure of industrial buildings.
    • Quick connection
    • Full bore design (consistent inner diameter for both pipe and connectors)
    • Connectors are interchangeable and reusable
    • Non-flammable materials (UL94-HB standard)



    Flange

     Transair Flange Transair Flange

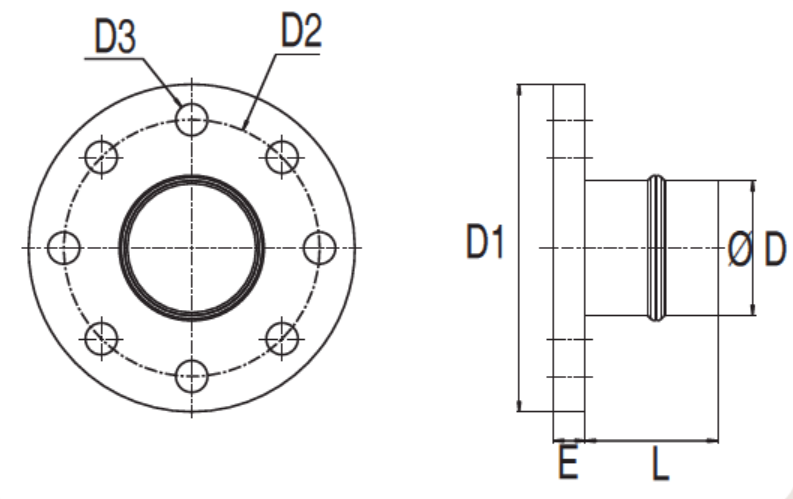

    Flange - Ø76/100/168 (mm)



    Transair

    ØD

    DN

    D1

    D2

    D3

    E

    L

    RX30 L1 00

    76

    65

    185

    145

    18

    10

    75

    RX31 L1 00

    76

    65

    200

    160

    18

    10

    75

    RX30 L3 00

    100

    100

    220

    180

    18

    10

    75

    RX31 L3 00

    100

    100

    228.5

    190.5

    19

    12.7

    75

    RX31 L8 00

    168

    150

    279

    240

    22

    25

    100

    RX30 dimensions conform to EN 1092-1 standard and the RX31 dimensions conform to ANSI B16.5 standard.



     Transair Flange

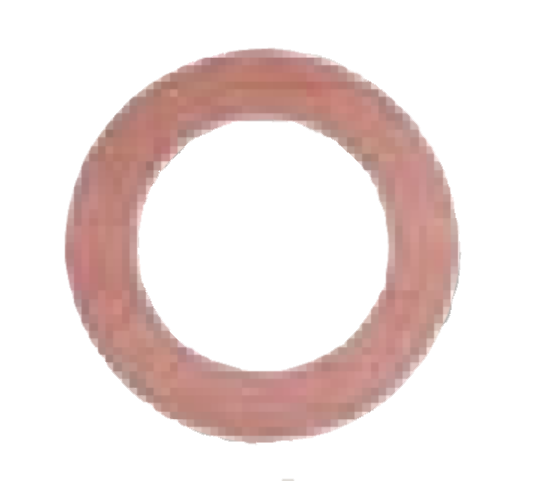

    Flange Gasket - Ø76/100/168 (mm)



    Transair

    ØD

    For use with flange
    reference

    EW05 L1 00

    76

    RX30/RX31 L1 00

    EW05 L3 00

    100

    RX30/RX31 L3 00

    EW05 L8 00

    168

    RA31 L8 00
    Note: As of January 2017, part number EW05 L1 00 has been obsoleted and replaced with part number EW05 63 00.



     Transair Flange

    Flange Bolt - Ø76/100/168 (mm)



    Transair

    C

    L

    EW06 00 01

    5/8"

    60

    EW06 00 05

    M20

    80

    Contains 8 bolts and 8 nuts.

    Note: As of January 2017, part number EW06 00 05 has been obsoleted and replaced with part number EW06 00 12.
