Parker Transair - Advanced Air Pipe Systems | Manifolds

The range of Transair pipe-to-pipe and stud connectors provides versatility of design and helps to overcome constraints often encountered with the structure of industrial buildings.

Quick connection
Full bore design (consistent inner diameter for both pipe and connectors)
Connectors are interchangeable and reusable
Non-flammable materials (UL94-HB standard)

Manifolds

Transair Manifold

Transair Manifold

4 Port Manifold - Ø25/40 (mm)

Transair	ØD	G	L	L1	L2	N	Z
6651 25 12 04	25	44.5	271.0	151.0	23.0	35.0	107.0
6651 40 12 04	40	67.0	400.0	204.0	27.0	50.0	150.0

Supplied with four Ø12 mm plugs.

Transair Manifold

Transair Manifold

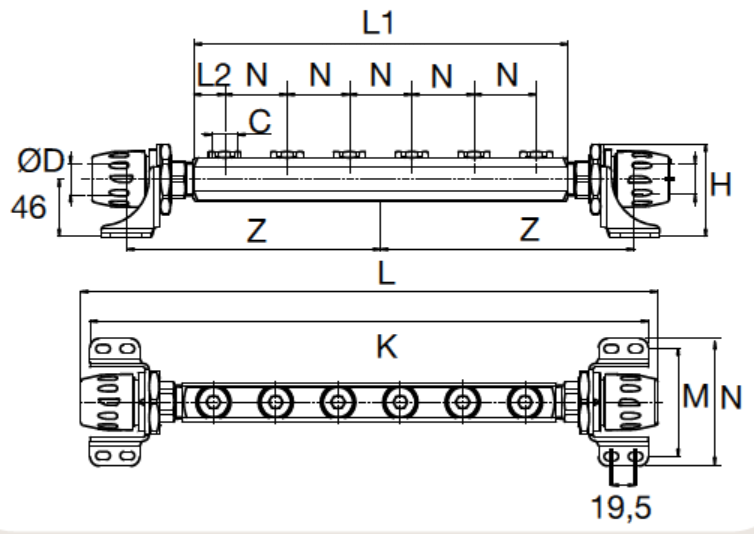

6 Port Manifold - Ø76/100/168 (mm)

Transair	ØD	C	L	L1	L2	K	N	Z	H	M
6653 25 22 06	25	1/2"	463	300	25	448	50	204	74	86.5
6653 40 22 06	40	1/2"	526	310	25	469	50	217	83	104.5

Supplied with 1/2" NPT ports.
