Parker Transair - Advanced Air Pipe Systems | Reducers

The range of Transair pipe-to-pipe and stud connectors provides versatility of design, and helps to overcome constraints often encountered with the structure of industrial buildings.
  • Quick connection
  • Full bore design (consistent inner diameter for both pipe and connectors)
  • Connectors are interchangeable and reusable
  • Non-flammable materials (UL94-HB standard)




Plug-In Reducers

 Transair Plug-in Reducer  Transair Plug-in Reducer

Plug-in Reducer - Ø16.5/25/40 (mm)



Transair

ØD1

ØD2

ØG

Z

L

6666 17 25

25

16.5

34.0

50.0

77.0

6666 25 40

40

25

44.5

71.0

99.0





 Transair Plug-in Reducer  Transair Plug-in Reducer

Plug-in Reducer - Ø63 (mm)



Transair

ØD1

ØD2

ØG

L

6666 40 63

63

40

67.0

112.5



 Transair Plug-in Reducer  Transair Plug-in Reducer

Plug-in Reducer - Ø76/100 (mm)



Transair

ØD1

ØD2

L

RX64 L1 63

76

63

230

RX64 L3 63

100

63

250

RX66 L3 L1

100

76

192.5



 Transair Plug-in Reducer  Transair Plug-in Reducer

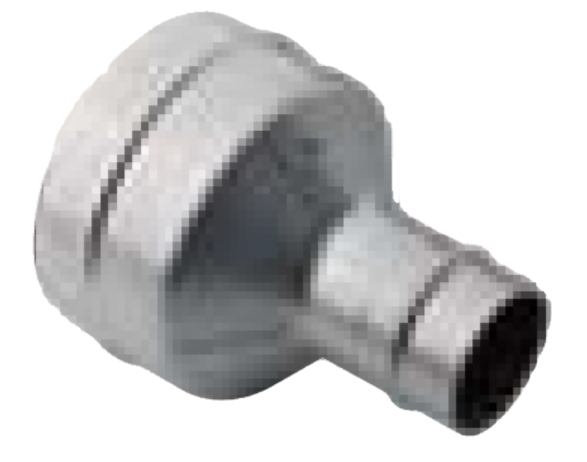

Plug-in Reducer - Ø168 (mm)



Transair

ØD1

ØD2

L

RA66 L8 L3

168

100

210

RA66 L8 L1

168

76

210
