Parker Transair - Advanced Air Pipe Systems | Straight Connectors

    The range of Transair pipe-to-pipe and stud connectors provides versatility of design and helps to overcome constraints often encountered with the structure of industrial buildings.
    • Quick connection
    • Full bore design (consistent inner diameter for both pipe and connectors)
    • Connectors are interchangeable and reusable
    • Non-flammable materials (UL94-HB standard)



    Straight Connectors

     Transair Connectors  Transair Connectors

    Pipe-to-Pipe Connector - Ø16.5/25/40 (mm)



    Transair

    ØD
    (mm)

    ØG
    (in)

    L

    Z

    6606 17 00

    16.35

    34

    120.5

    33.0

    6606 25 00

    25

    44.5

    151.5

    48.0

    6606 40 00

    40

    67.0

    205.0

    57.0



     Transair Connectors  Transair Connectors

    Pipe-to-Pipe Connector - Ø63 (mm)



    Transair

    ØD
    (mm)

    ØG
    (in)

    L

    Z

    6606 63 00

    63

    91.0

    171.5

    25.0



     Transair Connectors  Transair Connectors

    Pipe-to-Pipe Connector - Clamp and Cartridge



    Transair

    ØD
    (mm)

    L

    E1

    E2

    RR01 L1 00

    76

    146

    104

    132

    RR01 L3 00

    100

    146

    128

    157

    RR01 L8 00

    168

    139

    212

    230



     Transair Cartridge  Transair Cartridge

    Pipe-to-Pipe Connector - Cartridge (spare part)



    Transair

    ØD
    (mm)

    M

    N

    RP00 L1 00

    76

    88.7

    51.4

    RP00 L3 00

    100

    123

    52.7



     Transair Connectors  Transair Connectors

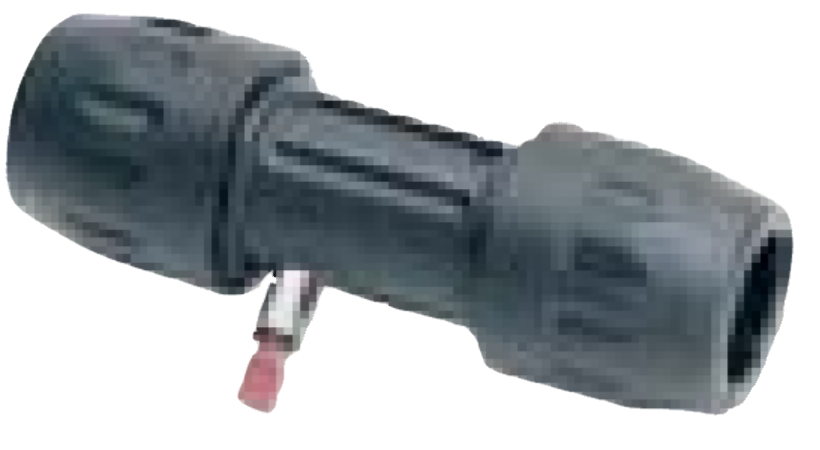

    Pipe-to-Pipe Connector with Vent - Ø25/40 (mm)



    Transair

    ØD

    ØG

    L

    Z

    66762500

    25

    44.5

    151.5

    48.0

    66764000

    40

    67.0

    205.0

    57.0



     Transair Connectors  Transair Connectors

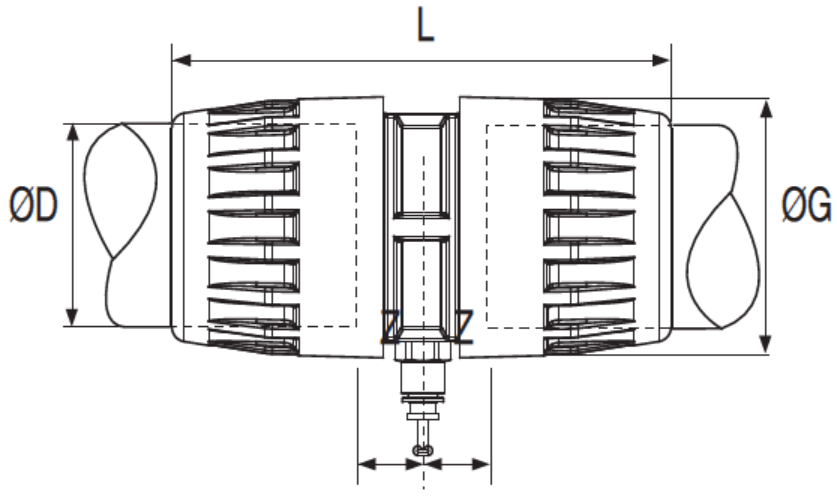

    Pipe-to-Pipe Connector with Vent - Ø63 (mm)



    Transair

    ØD

    ØG

    L

    Z

    66766300

    63

    91.0

    171.5

    25.0

    Model supplied with 1/4" threaded fitting and Ø 8 mm push-in connection, complete with blanking plug.



     Transair Threaded Connector Transair Threaded Connector

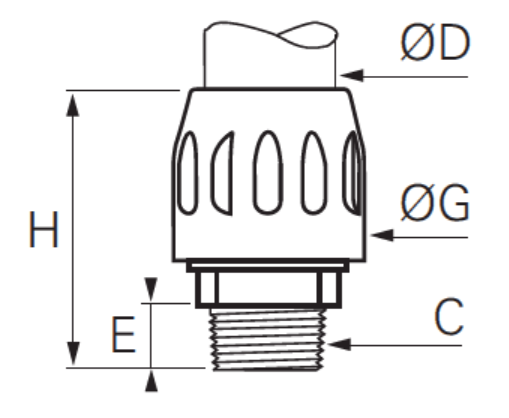

    Male Threaded Connector, NPT Thread - Ø16.5/25/40 (mm)



    Transair

    ØD

    C

    E

    ØG

    H

    6605 17 14

    16.5

    1/4"

    9.5

    34.0

    62.5

    6605 17 22

    16.5

    1/2"

    15.0

    34.0

    68.0

    6605 25 22

    25

    1/2"

    15.0

    44.5

    70.5

    6605 25 28

    25

    3/4"

    15.0

    44.5

    71.5

    6605 25 35

    25

    1"

    16.0

    44.5

    71.5

    6605 40 35

    40

    1"

    16.0

    67.0

    111.5

    6605 40 43

    40

    1 1/4"

    21.5

    67.0

    111.5

    6605 40 50

    40

    1 1/2"

    24.5

    67.0

    114.5

    6605 40 44

    40

    2"

    23.0

    67.0

    111.5





     Transair Threaded Connector Transair Threaded Connector

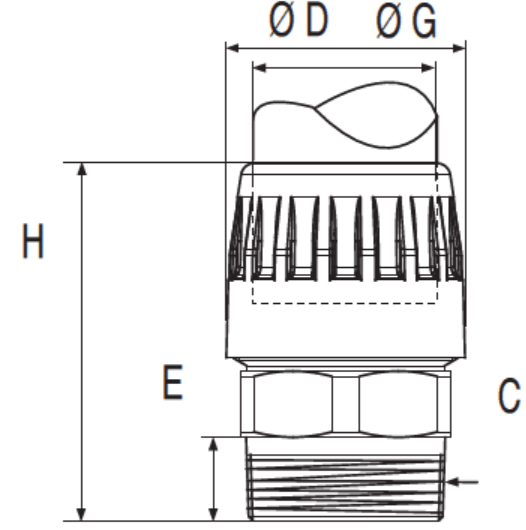

    Male Threaded Connector, NPT Thread - Ø63 (mm)



    Transair

    ØD

    C

    E

    ØG

    H

    6605 63 44

    63

    2"

    20.0

    91.0

    118.5

    6605 63 41

    63

    2 1/2"

    25.0

    91.0

    130.5

    6605 63 46

    63

    3"

    27

    91.0

    140.0





     Transair Threaded Connector Transair Threaded Connector

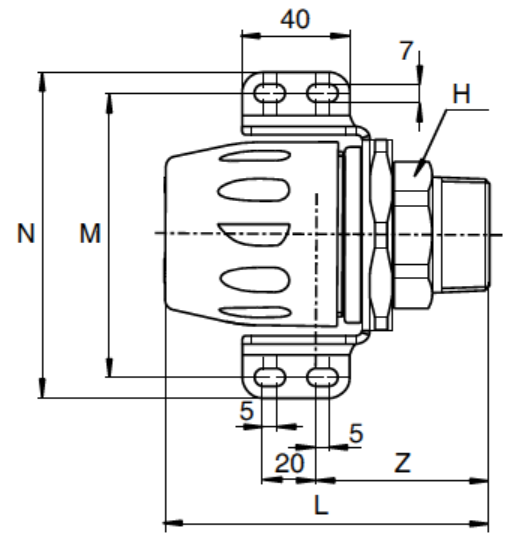

    Male Threaded Connector with Fixing Plate - Ø25/40 (mm)



    Transair

    ØD

    C

    H

    L

    M

    N

    Z

    6615 25 22

    25

    1/2"

    27

    76

    66.5

    82

    44

    6615 25 28

    25

    3/4"

    27

    77

    66.5

    82

    44

    6615 25 35

    25

    1"

    36

    77

    66.5

    82

    53

    6615 40 43

    40

    1 1/4"

    50

    121

    84

    105

    75

    6615 40 50

    40

    1 1/2"

    50

    121

    84

    105

    75





     Transair Male Adaptor NPT Thread Transair Male Adaptor NPT Thread

    Male Stud Nut - Ø16.5 to 63 (mm)



    Transair

    ØD

    C

    E

    ØG

    H

    6611 17 22

    16.5

    1/2"

    9.5

    34.0

    62.5

    6611 25 22

    25

    1/2"

    15.0

    34.0

    68.0

    6611 25 28

    25

    3/4"

    15.0

    44.5

    70.5

    6611 25 35

    25

    1"

    15.0

    44.5

    70.5

    6611 40 35

    40

    1"

    15.0

    44.5

    71.5

    6611 40 43

    40

    1 1/4"

    16.0

    44.5

    71.5

    6611 40 50

    40

    1 1/2"

    16.0

    67.0

    111.5

    6611 40 44

    40

    2"

    21.5

    67.0

    111.5

    6611 63 44

    63

    2"

    23.0

    67.0

    111.5

    6611 63 41

    63

    2 1/2"

    24.5

    67.0

    114.5





     Transair Male Stud Nut Transair Male Stud Nut

    Male Adaptor, NPT Thread - Ø16.5/25/40 (mm)



    Transair

    ØD (mm)

    C (in)

    L

    H

    6621 17 22

    16.5

    1/2"

    42.2

    5.0

    6621 25 22

    25

    1/2"

    49.0

    7.0

    6621 25 28

    25

    3/4"

    49.0

    7.0

    6621 25 35

    25

    1"

    49.0

    7.0

    6621 40 43

    40

    1 1/4"

    73.7

    8.0

    6621 40 50

    40

    1 1/2"

    75.7

    10.0





     Transair Male Adaptor NPT Thread Transair Male Adaptor NPT Thread

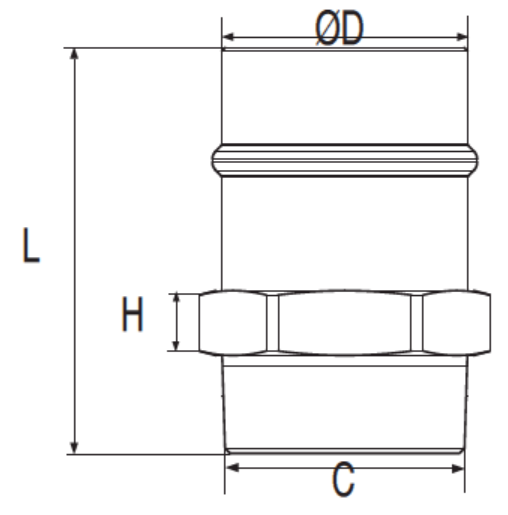

    Male Adaptor, NPT Thread - Ø76 (mm)



    Transair

    ØD (mm)

    C (in)

    L

    H

    RR21 L1N20

    76

    2 1/2"

    125

    20

    RR21 L1N24

    76

    3"

    125

    20

    Use one connector (RR01) to connect male adaptors (RR21) to Transair pipe.
