Parker Transair new generation quick assembly brackets are recommended for vertical or horizontal take-offs, using either rigid pipe or flexible hose.
  • Integral water retention device
  • Very high flow
  • Quick installation without any cutting of pipe or hose




Quick Assembly Brackets

 Transair Quick Assembly Brackets Transair Quick Assembly Brackets

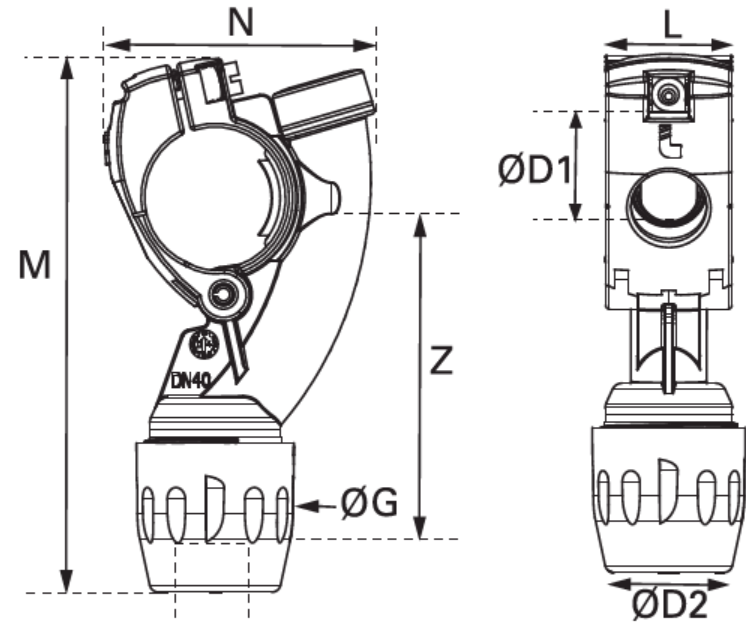

Quick Assembly Bracket - Ø25/40 (mm)



Transair

ØD1

ØD2

M

ØG

L

N

Z

6662 25 17

25

16.5

139.5

34

36

63.5

82

6662 25 00

25

25

134

44.5

36

63.5

74

6662 40 17

40

16.5

154

34

37.5

76.5

89

6662 40 25

40

25

149.5

44.5

37.5

76.5

82

To drill Transair pipe, use drilling tools 6698 02 01 and 6698 02 02.



 Transair Quick Assembly Brackets Transair Quick Assembly Brackets

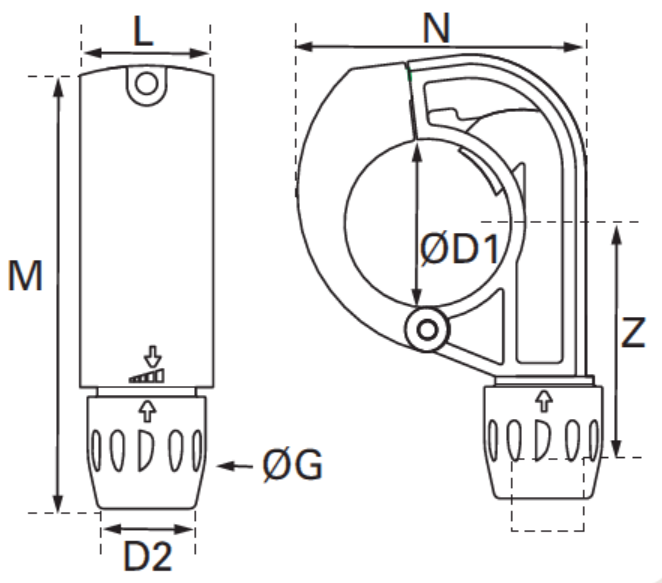

Quick Assembly Bracket - Ø63 (mm)



Transair

ØD1

ØD2

M

G

L

N

Z

6662 63 25

63

25

166.5

44.5

50

108.5

75

To drill Transair pipe, use drilling tool 6698 02 02.



 Transair Quick Assembly Brackets Transair Quick Assembly Brackets

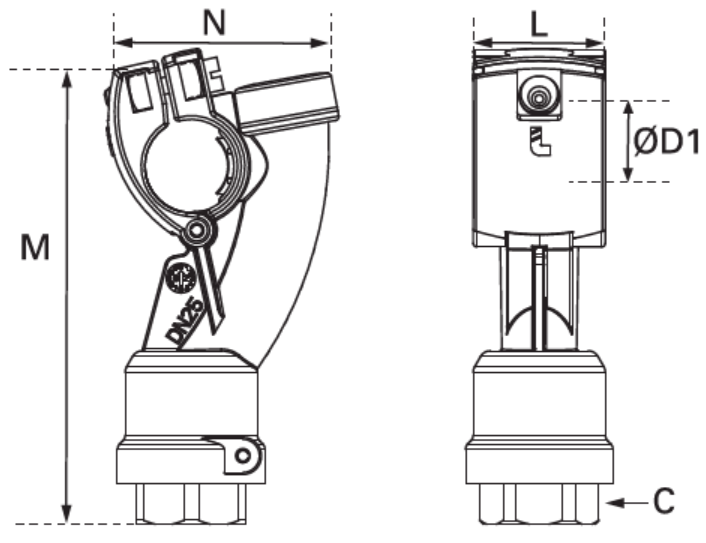

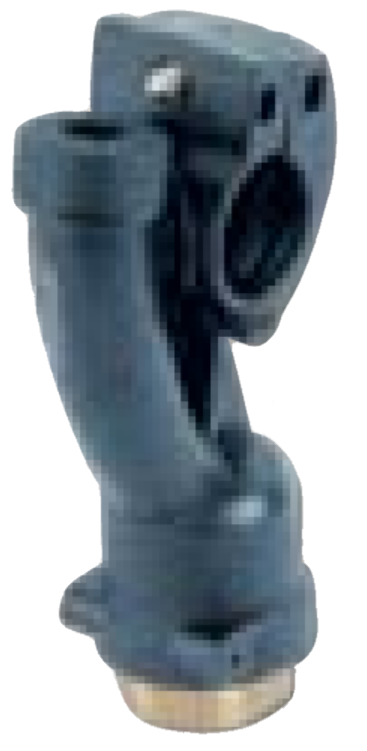

Quick Assembly Mini-Bracket with Female Thread NPT - Ø25/40 (mm)



Transair

ØD1

C

M

L

N

N

6663 25 22

25

1/2"

117.5

36

63.5

108.5

6663 40 22

40

1/2"

132

37.5

76.5

63.5

Supplied with brass plug. To drill Transair pipe, use drilling tools 6698 02 01 and 6698 02 02.



 Transair Quick Assembly Brackets Transair Quick Assembly Brackets

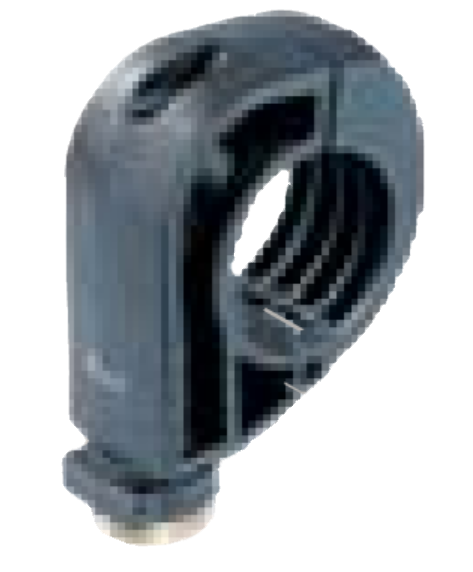

Quick Assembly Mini-Bracket with Female Thread NPT - Ø63 (mm)



Transair

ØD1

C

M

L

N

6663 63 22

63

1/2"

138.9

50

98.5

6663 63 28

63

3/4"

138.9

50

98.5

Supplied with brass plug. To drill Transair pipe, use drilling tools 6698 02 01.
