Parker Transair - Advanced Air Pipe Systems | Valves

Parker Transair ball valves and butterfly valves placed at strategic points (such as compressor outlets and upstream of pneumatic tools), allow for easy isolation of parts of the system for maintenance and pipe reconfiguration.
  • Quick connection
  • Working pressure:
    • 188 psi for working temperatures from -4°F to +140°F
    • 232 psi for working temperatures from -4°F to +115°F
    • Contact us for higher temperature requirements
  • Vacuum service up ot 98.7% (29.6 Hg)
  • Available in lockable version (in sizes 16.5 mm and 25 mm)
  • Manual and piloted operation valves available in 25 mm and 40 mm sizes
  • Quick installation without any cutting of pipe




Ball Valves

 Transair Ball Valves Transair Ball Valves

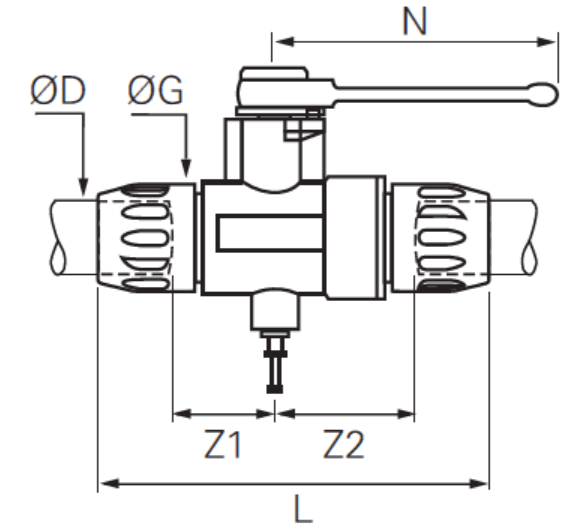

Double Female, Vented - Ø16.5/25 (mm)



Transair

ØD

G

L

N

Z1

Z2

4089 17 00

16.5

34.0

120.0

69.5

29.0

42.0

6694 25 22

25

44.5

152.0

108.5

40.0

55.0

Model 4089 17 00: supplied with Ø6 mm plug.

Model 4088 25 14: supplied with Ø8 mm plug.




 Transair Ball Valves Transair Ball Valves

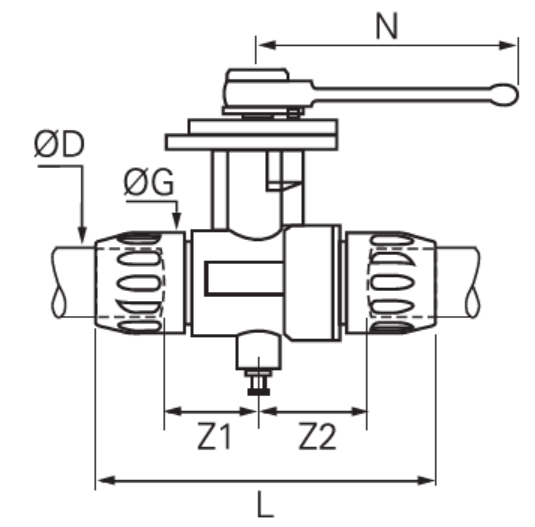

Lockable Valve, Vented - Ø16.5/25 (mm)



Transair

ØD

G

L

N

Z1

Z2

4099 17 00

16.5

34.0

121.0

69.0

29.0

42.0

4099 25 00

25

44.5

151.7

108.3

40.0

55.0

Model 4099 17 00: supplied with Ø6 mm plug.

Model 4099 25 00: supplied with Ø8 mm plug.




 Transair Ball Valves Transair Ball Valves

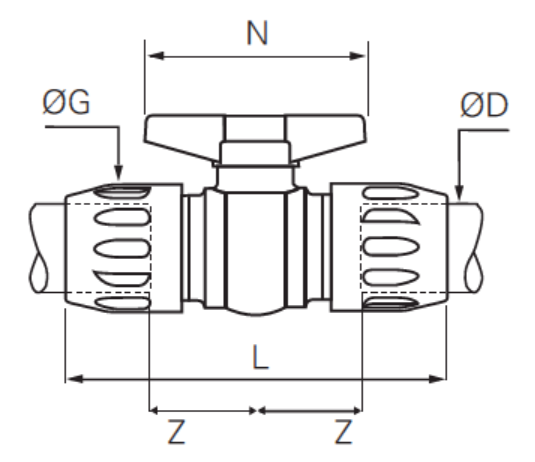

Double Female Valve - Ø40 (mm)



Transair

ØD

G

L

N

Z

4002 40 00

40.0

67.0

205.0

122.0

57.0






 Transair Ball Valves Transair Ball Valves

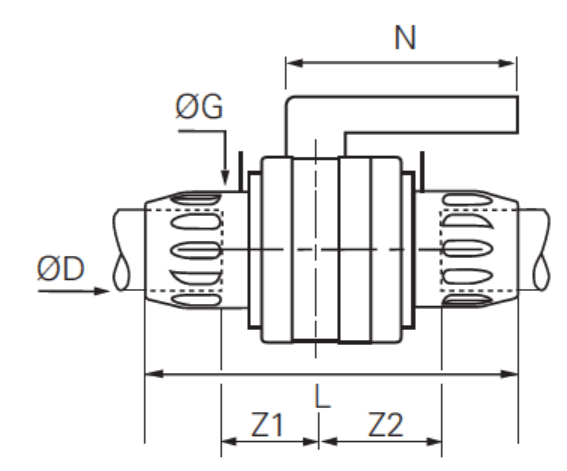

Double Female Valve - Ø63 (mm)



Transair

ØD

G

L

N

Z1

Z2

4002 63 00

63

91.0

278.0

185.0

84.0

98.0

4012 63 00*

63

91.0

278.0'

185.0

84.0

98.0

*lockable




 Transair Ball Valves Transair Ball Valves

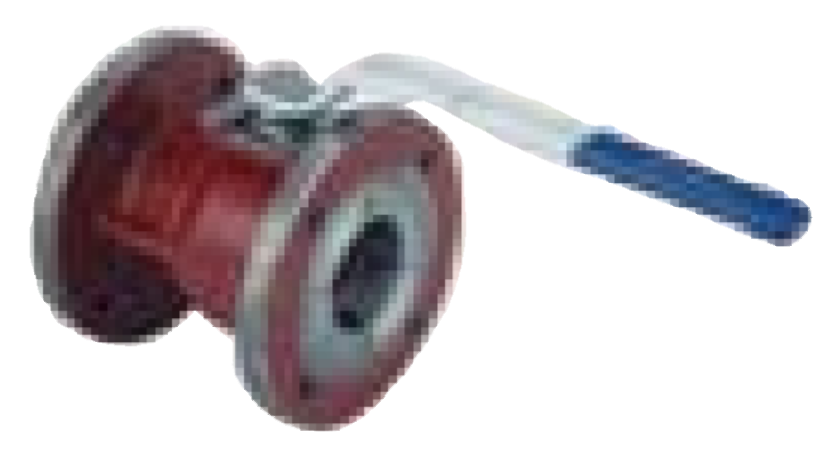

Ball Valve - Ø76 (mm)



Transair

ØD

A

B

D

L

K

R

VR01 L1 00

76

102

75

185

170

145

320

VR01 L3 00

100

136

104

220

190

180

380

Nitrile seal. Supplied with fixing bolts.




 Transair Butterfly Valves Transair Butterfly Valves

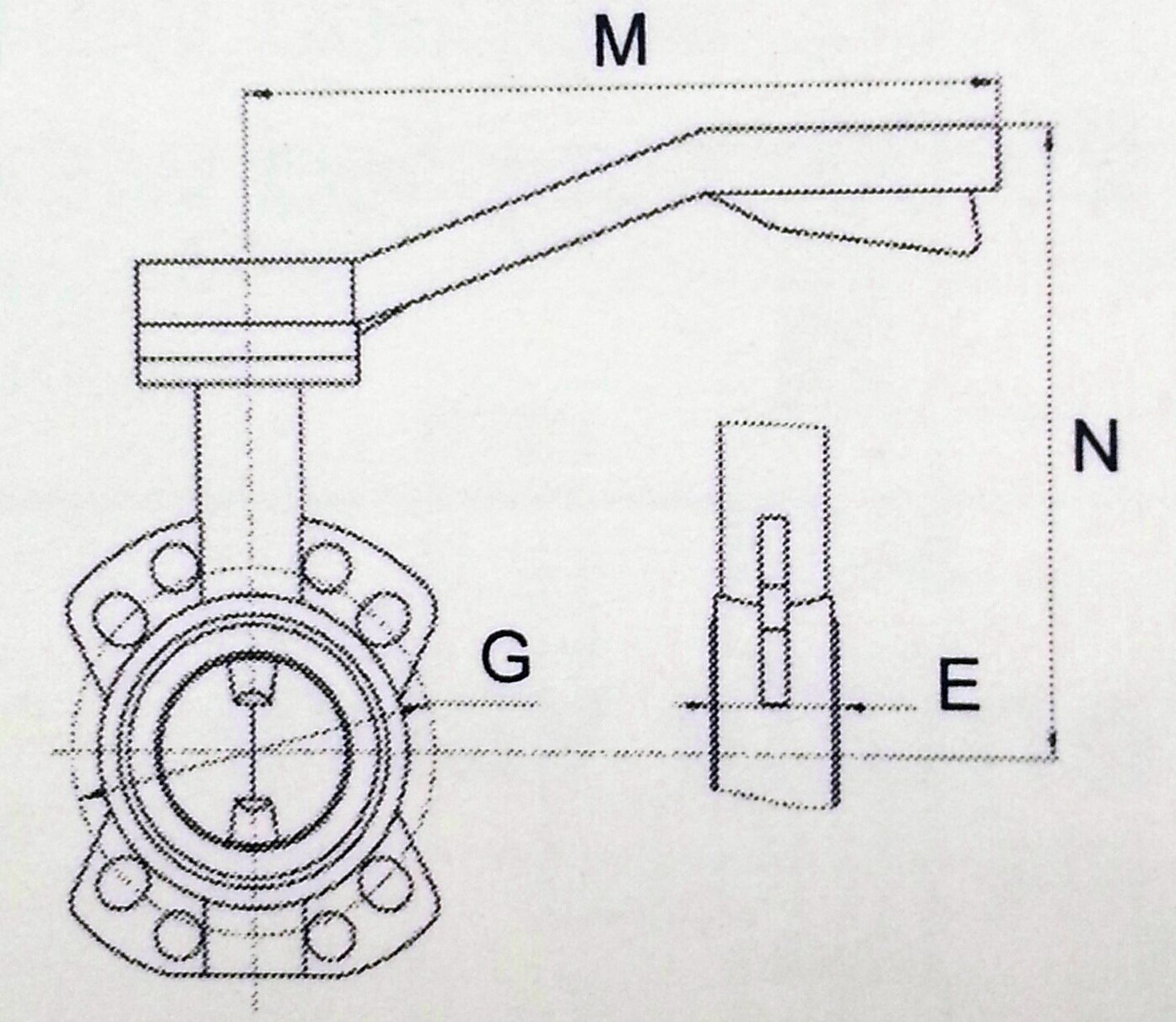

Butterfly Valve - Ø76/100 (mm)



Transair

ØD (in)

DN

G

M

N

E

VR02 L1 00

3

80

145

300

250

50

VR02 L3 00

4

100

180

270

210

56

Seal cast in one piece (do not use any flange gasket for mounting with a flange). Model has CE marking. Supplied with fixing bolts. Lockable version. Nitrile Seal.




 Transair Butterfly Valves Transair Butterfly Valves

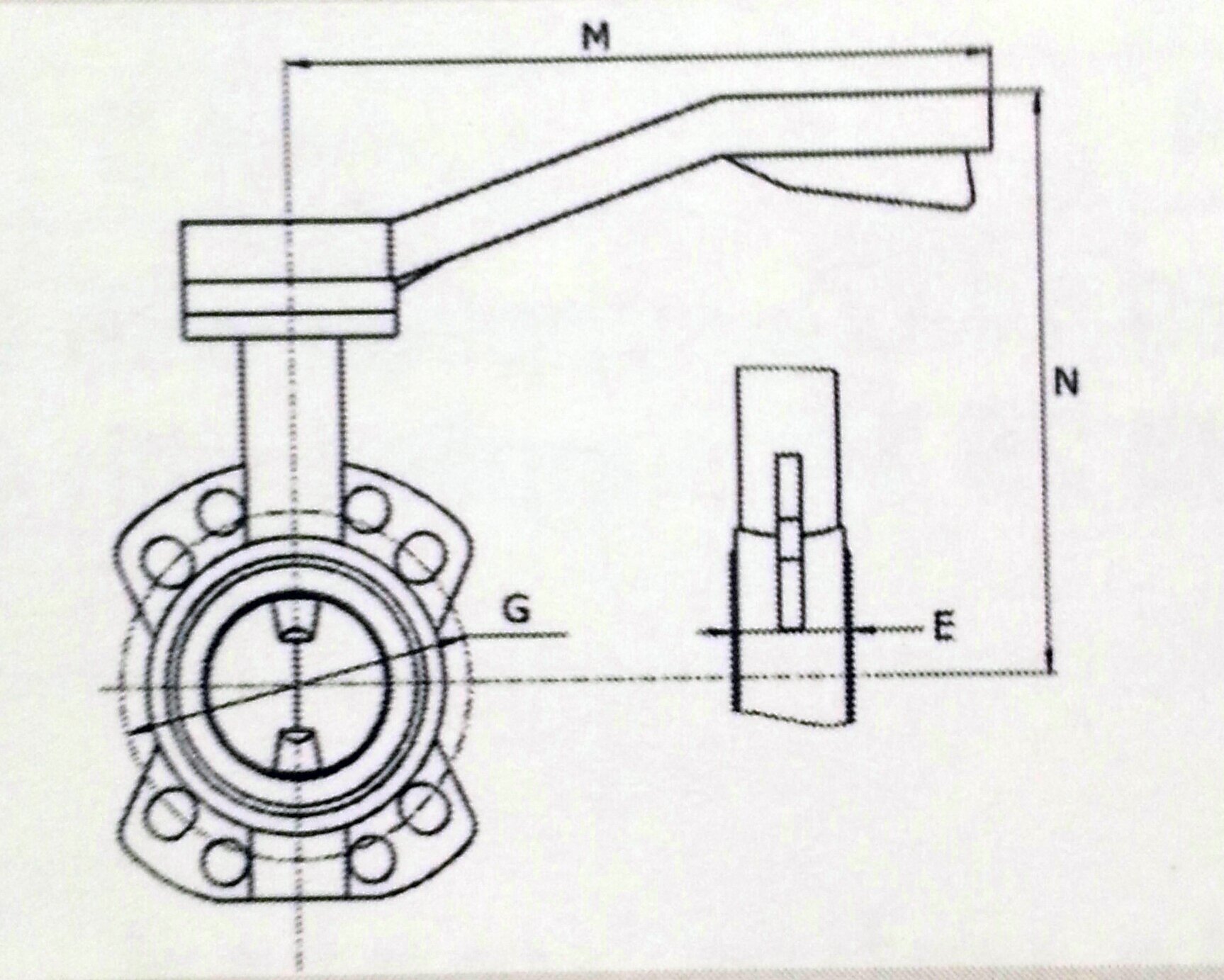

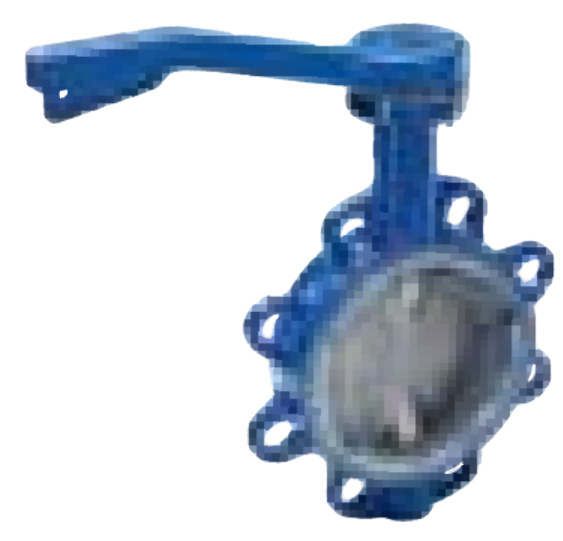

Butterfly Valve - Ø168 (mm)



Transair

ØD (in)

DN

G

M

N

E

VR02 L8 00

6

150

240

300

290

56

Model has CE marking. Supplied with eight M20 bolts kit (bolt length: 140mm). Nitrile seal.




 Transair Butterfly Valves Transair Butterfly Valves

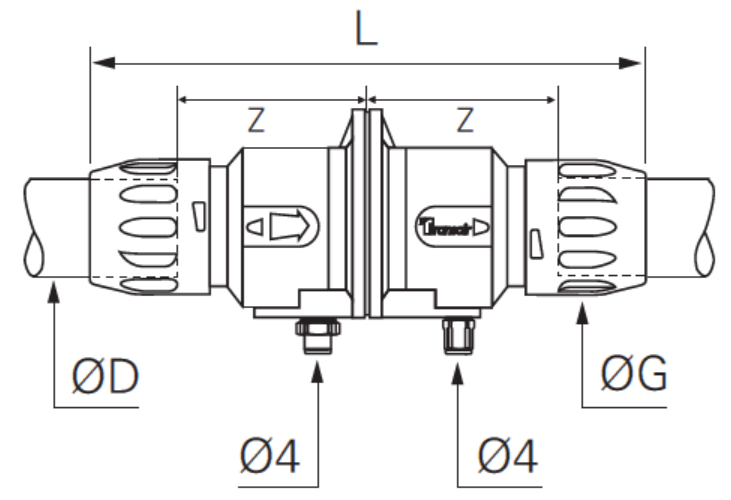

Remote Control Shut-Off Valve - Ø40 (mm)



Transair

ØD

G

L

Z

4230 00 40

40

67

261

85.0

Min. working pressure: 58 psi

Max working pressure: 235 psi

The Transair remote control shut-off valve is supplied with a plugged vent hole. This allows venting of the downstream network, after closing the valve.




 Transair Pilot Kits Transair Pilot Kits

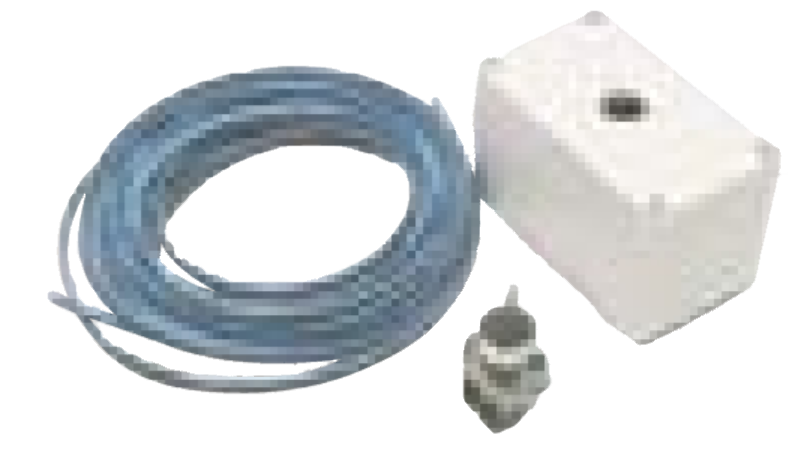

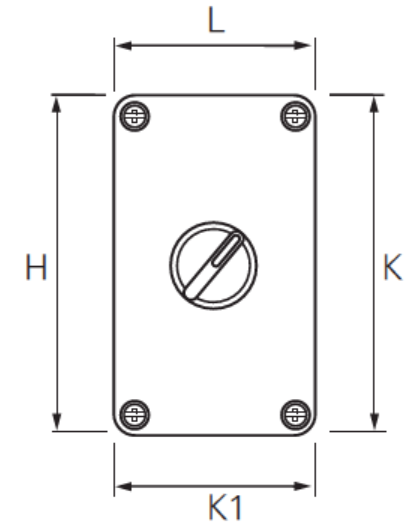

Pilot Kits



Transair

H

K

K1

L

4299 03 01

145

106

70

82

This pilot kit includes: pneumatic ON/OFF switch (maximum 235pi operating pressure), twin 4 mm OD polyurethane tube (length 10 m) and plastic box.
