    Parker Transair wall brackets are recommended for wall or machine mounting. They come as 1, 2, or 3-port brackets, and either with or without an integrated ball valve.
    • Working pressure:
      • 188 psi for working temperatures from -4°F to +140°F
      • 232 psi for working temperatures from -4°F to +115°F
    • Vacuum service up to 98.7% (29.6 Hg)
    • Non-flammable - conforms to UL94-HB standard
    • Well adapted for most original equipment manufacturer (OEM) applications and for use with neutral gases
    • Quick installation without any cutting of pipe



    Wall Brackets

     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

    1 Port 45° Wall Bracket, NPT - Ø16.5/25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6640 17 22

    16.5

    1/2"

    1/4"

    89.5

    63.5

    84.5

    82

    6640 25 22

    25

    1/2"

    1/4"

    92.5

    63.5

    84.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

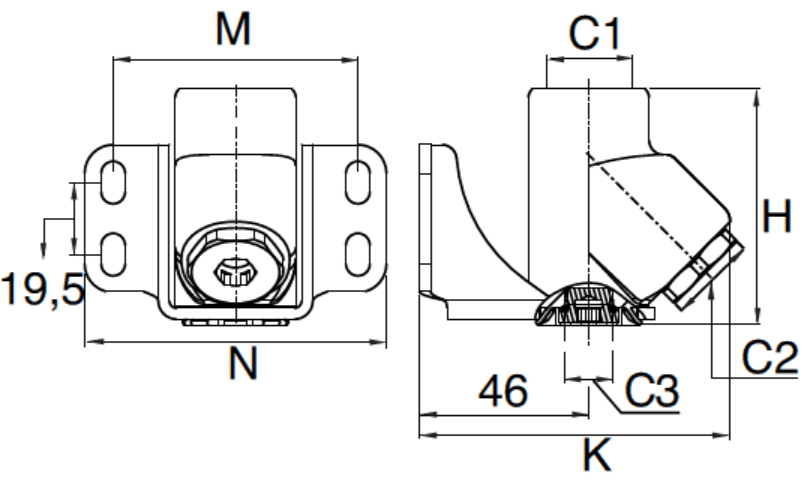

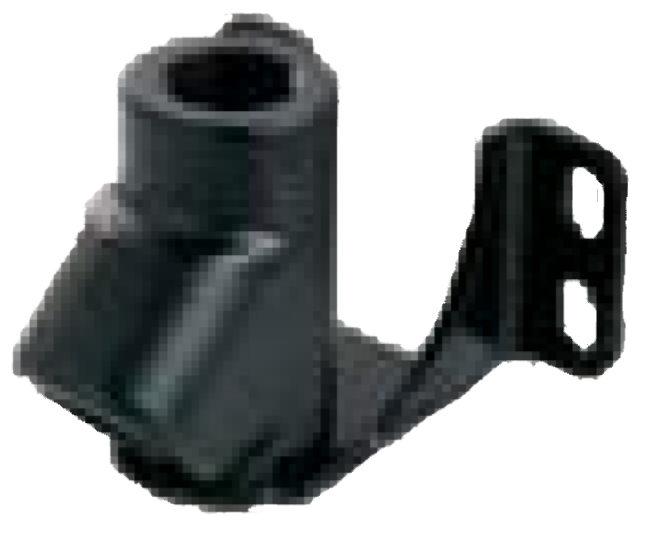

    1 Port 45° Threaded Wall Bracket, NPT - Ø16.5/25 (mm)



    Transair

    C1

    C2

    C3

    H

    K

    M

    N

    6642 22 22

    1/2"

    1/2"

    1/4"

    64

    84..5

    66.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

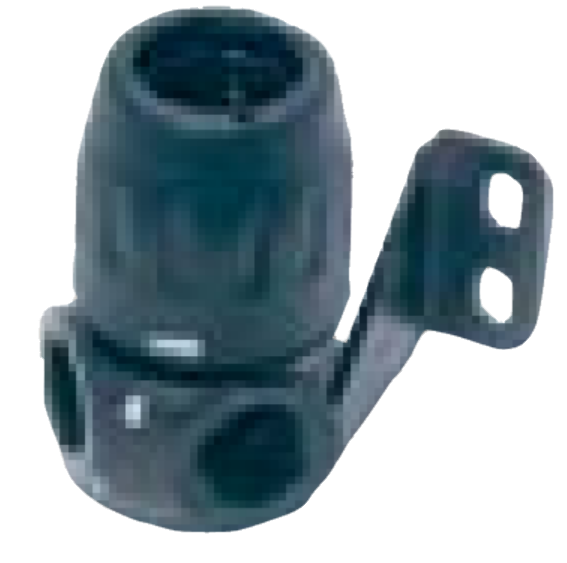

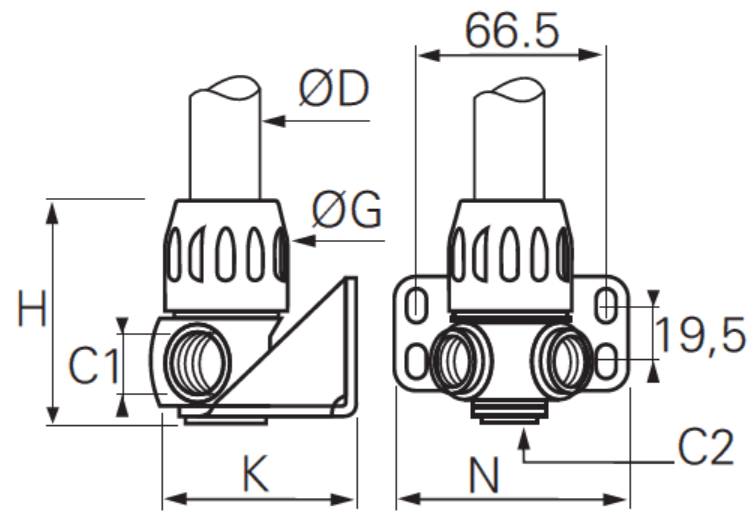

    2 Port Wall Bracket - Ø16.5/25 (mm)



    Transair

    ØD

    C1

    C2

    G

    H

    K

    N

    6684 17 22

    16.5

    1/2"

    1/4"

    34

    65

    74.5

    82

    6684 25 22

    25

    1/2"

    1/4"

    44.5

    81

    74.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

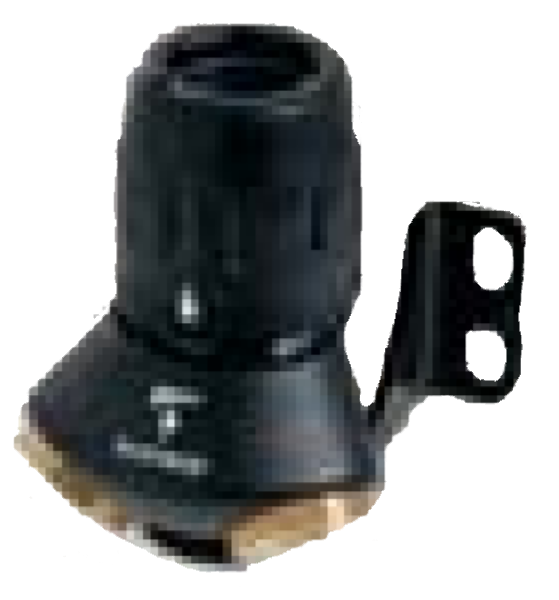

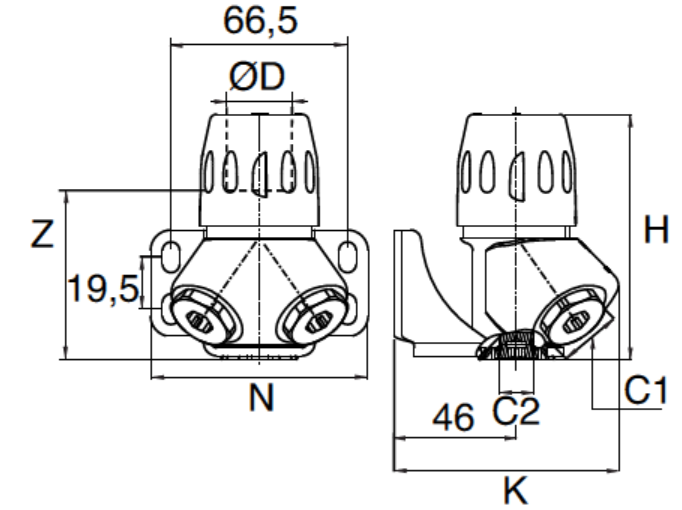

    2 Port 45° Wall Bracket, NPT - Ø16.5/25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6689 17 22

    16.5

    1/2"

    1/4"

    89.5

    63.5

    84.5

    82

    6689 25 22

    25

    1/2"

    1/4"

    92.5

    63.5

    84.5

    82



     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

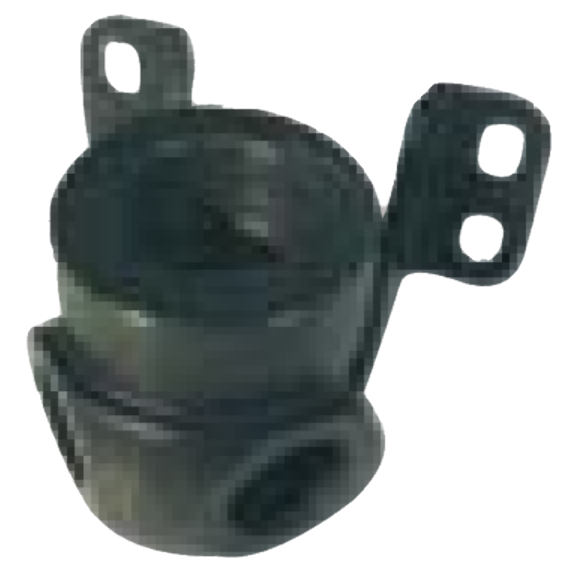

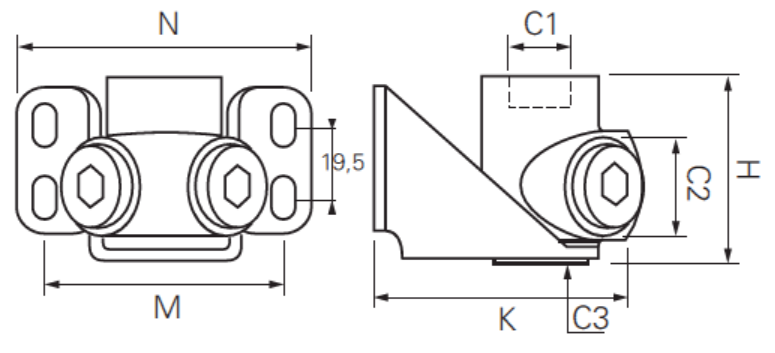

    2 Port Threaded Wall Bracket - Ø16.5/25 (mm)



    Transair

    C1

    C2

    C3

    H

    K

    M

    N

    6688 22 22

    1/2"

    1/2"

    1/4"

    48

    72.5

    66.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

    2 Port 45° Threaded Wall Bracket, NPT - Ø16.5/25 (mm)



    Transair

    C1

    C2

    C3

    H

    K

    M

    N

    6691 22 22

    1/2"

    1/2"

    1/4"

    64

    84.5

    66.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

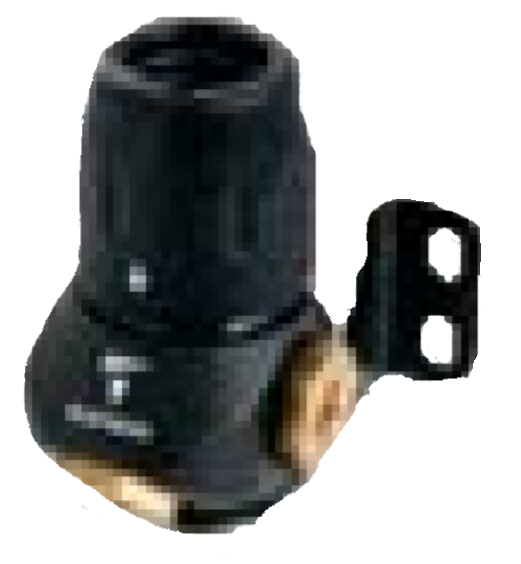

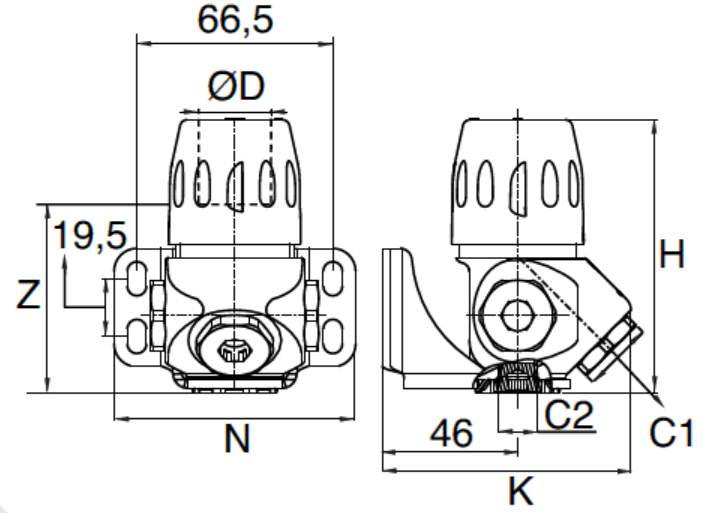

    3 Port Wall Bracket, NPT - Ø25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6696 25 22

    25

    1/2"

    1/4"

    92.5

    63.5

    84.5

    82





     Transair Quick Assembly Brackets Transair Quick Assembly Brackets

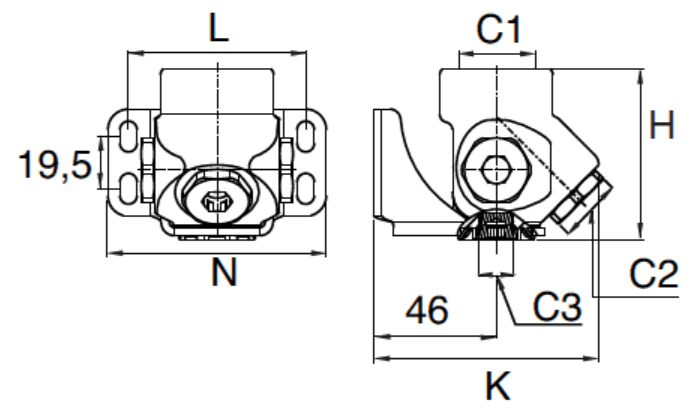

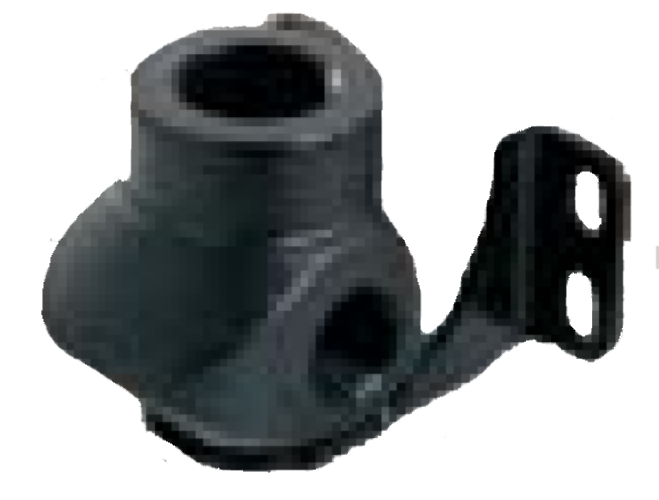

    3 Port Threaded Wall Bracket, NPT - Ø25 (mm)



    Transair

    C1

    C2

    C3

    H

    K

    M

    N

    6636 28 22

    3/4"

    1/2"

    1/4"

    64

    84.5

    66.5

    82





     Transair Wall Brackets Transair Wall Assembly Brackets

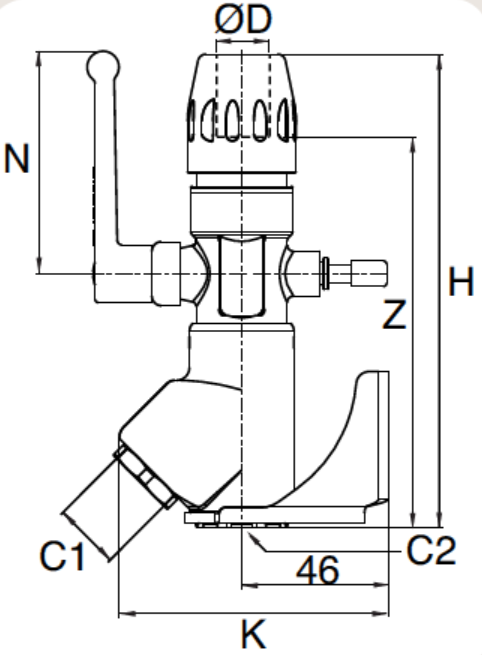

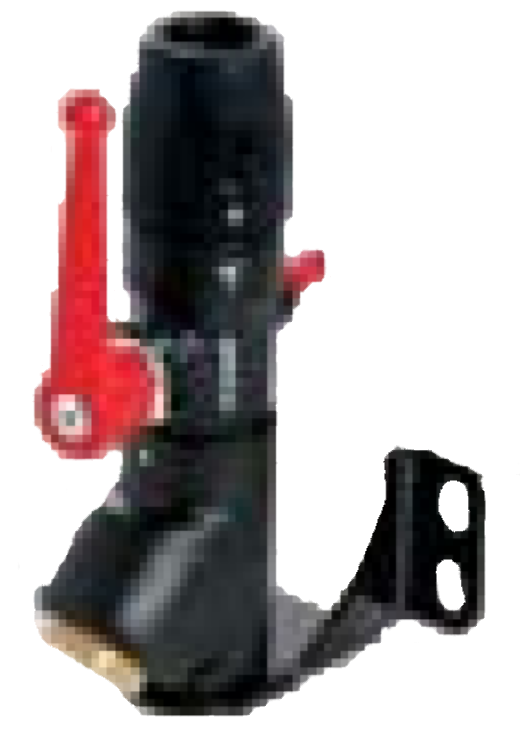

    1 Port 45° Wall Bracket with Ball Valve, NPT - Ø25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6679 17 22

    16.5

    1/2"

    1/4"

    148.5

    123

    84.5

    69.5

    6679 25 22

    25

    1/2"

    1/4"

    173

    142

    84.5

    108.5





     Transair Wall Brackets Transair Wall Assembly Brackets

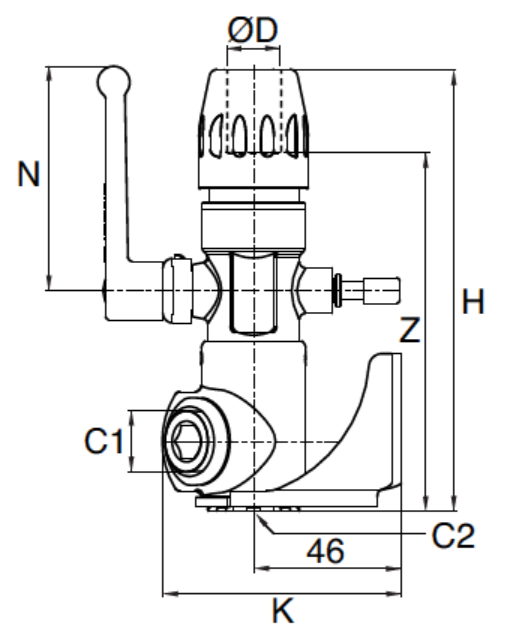

    2 Port 90° Wall Bracket with Ball Valve, NPT - Ø16.5/25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6675 17 22

    16.5

    1/2"

    1/4"

    137

    111.5

    74.5

    69.5

    6675 25 22

    25

    1/2"

    1/4"

    163

    132

    74.5

    108.5



     Transair Wall Brackets Transair Wall Assembly Brackets

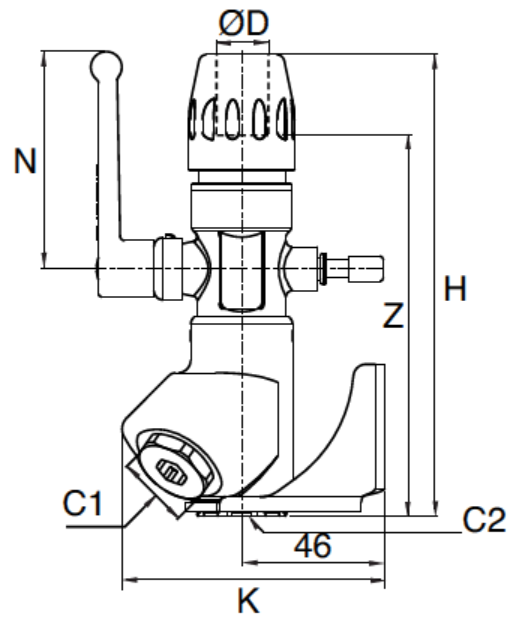

    2 Port 45° Wall Bracket with Ball Valve, NPT - Ø16.5/25 (mm)



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6694 17 22

    16.5

    1/2"

    1/4"

    148.5

    123

    84.5

    69.5

    6694 25 22

    25

    1/2"

    1/4"

    173

    142

    84.5

    108.5



     Transair Wall Brackets Transair Wall Assembly Brackets

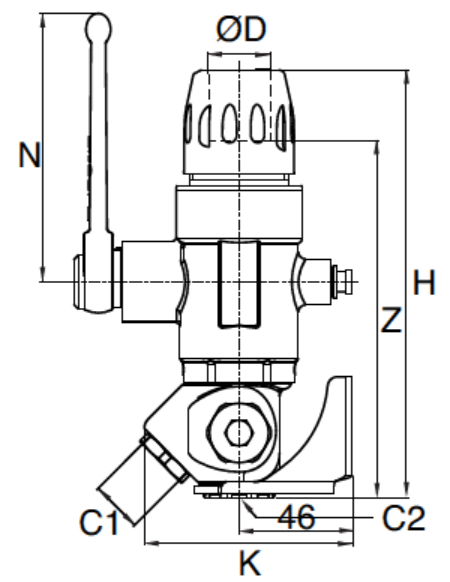

    3 Port Wall Bracket with Ball Valve, NPT



    Transair

    ØD

    C1

    C2

    H

    Z

    K

    N

    6638 25 22

    25.0

    1/2"

    1/4"

    173

    142

    84.5

    108.5
