JIC Mechanical Crimp Connection | Parker Triple-Lok

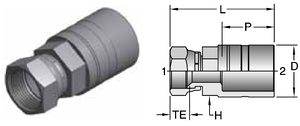

Parker MCC - JIC Swivel 06MC

37° Swivel / Mechanical Crimp
Sizes 1 5/16" - 2 1/2"


Go to Parker MCC ORFS Fittings
Go to Parker MCC Flange Crimp Fittings
Select Another Mechanical Crimp Connection



TUBE
FITTING
PART #
END SIZE H
Hex
(in.)
L
Overall
Length
(in)
P
Pipe Insertion Depth
(in)
D
Pre-Crimped
O.D.
(in)
Thread
Engagement

TE
(in.)
Dynamic
Pressure
(PSI)
1
UN/UNF
2
NPS Pipe
06MC-16-16P 1 5/16-12 1    1 1/2 3.75 1.85 1.85 0.59 4.00
06MC-20-20P 1 5/8-12 1 1/4 1 7/8 4.29 2.22 2.28 0.63 4.00
06MC-24-24P 1 7/8-12 1 1/2 2 1/8 4.77 2.45 2.58 0.73 3.00
06MC-32-32P 2 1/2-12 2    2 3/4 5.56 2.91 3.25 0.94 2.00

Note: The pressure rating listed in the product tables is the maximum working pressure of the fitting. If thinner wall thickness of scheduled pipe are used, then use ths maximum working pressure of the pipe.

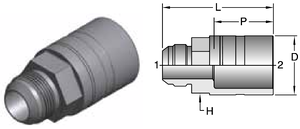

Parker MCC - JIC Swivel 03MC

37° Flare / Mechanical Crimp
Sizes 1 5/16" - 2 1/2"


Go to Parker MCC ORFS Fittings
Go to Parker MCC Flange Crimp Fittings
Select Another Mechanical Crimp Connection



TUBE
FITTING
PART #
END SIZE H
Hex
(in.)
L
Overall
Length
(in)
P
Pipe Insertion Depth
(in)
D
Pre-Crimped
O.D.
(in)
Dynamic
Pressure

(x 1,000PSI)
1
UN/UNF
2
NPS Pipe
03MC-16-16P 1 5/16-12 1    1 1/2 3.75 1.85 1.85 4.00
03MC-20-20P 1 5/8-12 1 1/4 1 7/8 4.29 2.22 2.28 4.00
03MC-24-24P 1 7/8-12 1 1/2 2 1/8 4.77 2.45 2.58 3.00
03MC-32-32P 2 1/2-12 2    2 3/4 5.56 2.91 3.25 2.00

Note: The pressure rating listed in the product tables is the maximum working pressure of the fitting. If thinner wall thickness of scheduled pipe are used, then use ths maximum working pressure of the pipe.



Orders & Quotes

PLACE ORDER
FAST QUOTES
ASK QUESTION

Mechanical Crimp Connections

Parker Mechanical Crimp Connection (MCC) technology presents a
reliable and leak-free connection for NPS piping systems. MCC is a great alternative to time consuming and costly welding.

MCC is a one piece crimp adapter with a specially designed bite ring and internal elastomeric seals. The bite ring attaches to the pipe during a crimping process and secures the adapter in place. The internal O-rings of MCC ensure that the internal fluid pressure is sealed as well as protect against the ingression of external contamination.



AVAILABLE MCC CONNECTIONS


Parker Crimp Fittings for Pipe
