End Caps for Industrial Water Distribution | Parker Transair

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

Max. working pressure:
  • 145 psi from -4°F to +185°F
Working Temperature:
  • Ø 1/2", Ø 3/4": from -4°F to +185°F
  • Ø 1 1/2", Ø 2", Ø 3", Ø 4": from -4°F to +140°F

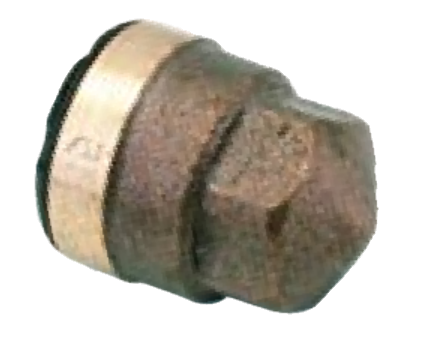

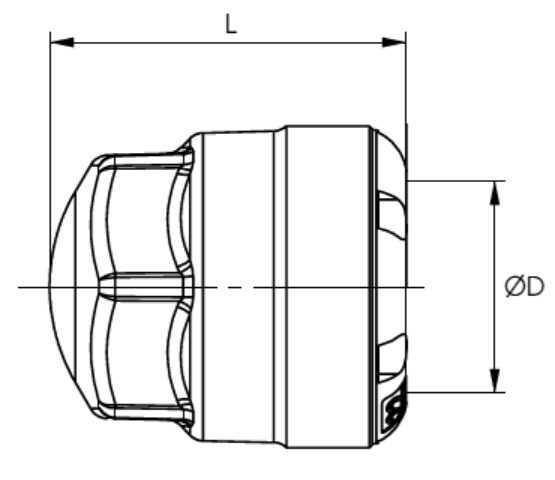

End Cap - Ø 1/2" - 3/4"



 End Cap  End Cap

Transair

ØD (in)

L

RR25 H3 01

1/2

41.1

RR25 H5 01

3/4

54.5



End Cap - Ø 1 1/2" - 2"



 End Cap  End Cap

Transair

ØD (in)

L

RR25 M4 00

1 1/2

85

RR25 M6 00

2

80

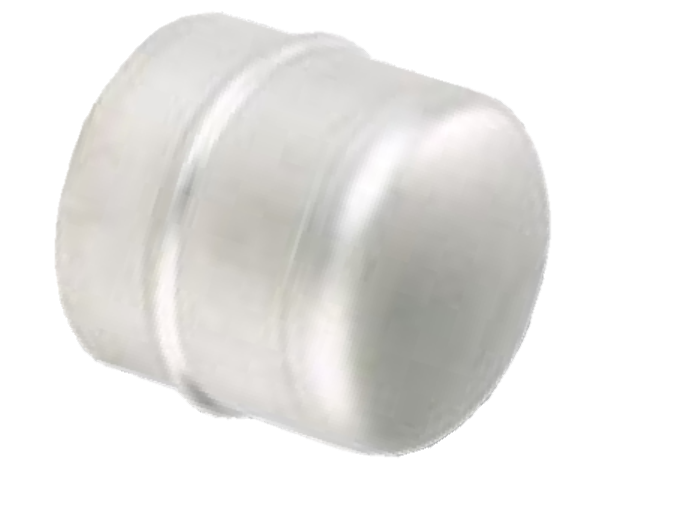

End Cap - Ø 3" - 4"



 End Cap  End Cap

Transair

ØD

L

RX25 L1 00

3

99.6

RX25 L3 00

4

107.4

Use connector RR01 to connect end-cap RX25 to Transair pipe.
