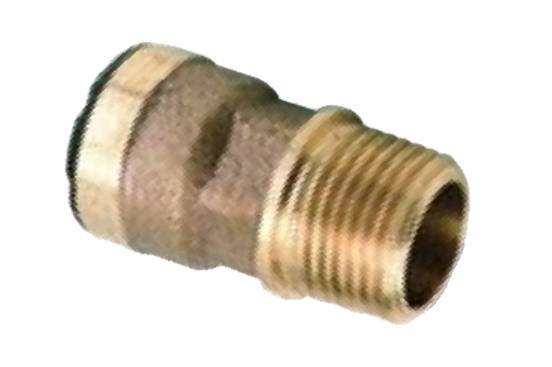

Male Stud Fitting, NPT for Industrial Water Distribution | Parker Transair

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

Max. working pressure:
  • 145 psi from -4°F to +185°F
Working Temperature:
  • Ø 1/2", Ø 3/4": from -4°F to +185°F
  • Ø 1 1/2", Ø 2", Ø 3", Ø 4": from -4°F to +140°F

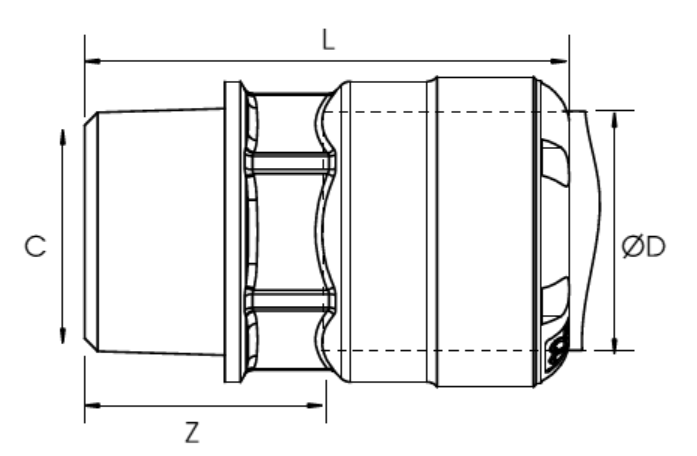

Male Stud Fitting, NPT - Ø 1/2" - 3/4"



 Male Stud  Male Stud

Transair

ØD (in)

C

L

Z

RR05 H3N04 01

1/2

1/2

51.1

20.7

RR05 H3N06 01

1/2

3/4

52.6

22.2

RR05 H5N04 01

3/4

1/2

63.6

22.1

RR05 H5N06 01

3/4

3/4

65.5

22.1
