Plug-In Reducers for Industrial Water Distribution | Parker Transair

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

Max. working pressure:
  • 145 psi from -4°F to +185°F
Working Temperature:
  • Ø 1/2", Ø 3/4": from -4°F to +185°F
  • Ø 1 1/2", Ø 2", Ø 3", Ø 4": from -4°F to +140°F

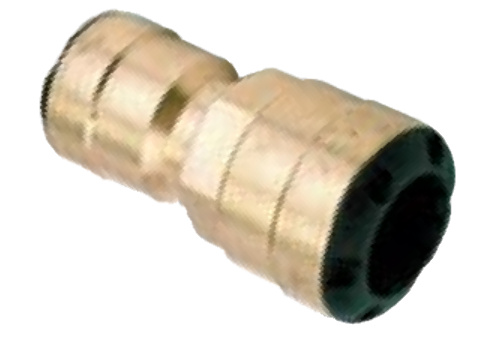

Plug-in Reducer - Ø 1/2" - 3/4"



 Equal Tee  Equal Tee

Transair

ØD1 (in)

ØD2 (in)

L

Z

RR06 H5 H3 01

3/4

1/2

73.2

3.2

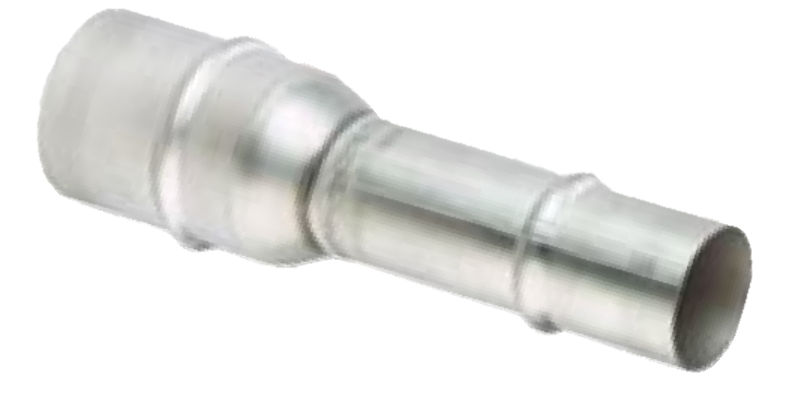

Plug-in Reducer - Ø 1/2" - 3/4"



 Equal Tee

Transair

ØD1 (in)

ØD2 (in)

L

RR65 M4N06

1 1/2

3/4

140

RR65 M6N06

2

3/4

150

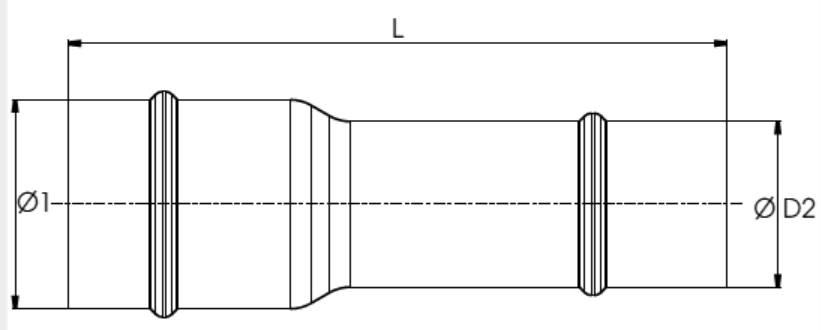

Plug-in Reducer - Ø 1", 1/2", 2", 3", 4"



 Equal Tee  Equal Tee

Transair

ØD1 (in)

ØD2 (in)

L

RX66 M6 M4

2

1 1/2

220

RX66 L1 M6

3

2

240

RX66 L3 L1

4

3

192

Use connector RR01 to connect plug-in reducer RX66 to Transair pipes Ø 3" or Ø 4" and pipe-to-pipe connector RP06 to connect to Transair pipe Ø 2".
