Pipe to Pipe Connector for Industrial Water Distribution | Parker Transair

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

The range of Transair pipe-to-pipe and threaded
connectors provides versatility of design and helps to
overcome constraints often encountered with the
structure of industrial buildings.

  • Quick connection
  • Removable and reusable
  • Full bore design
  • Non-flammable materials (UL94HB standard)

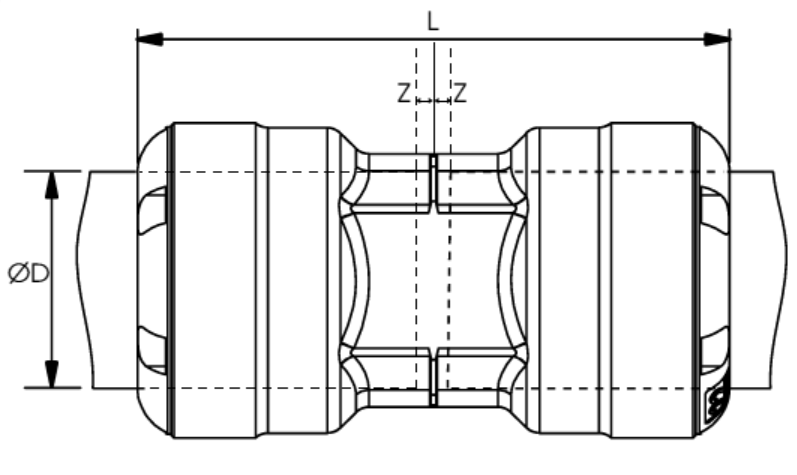

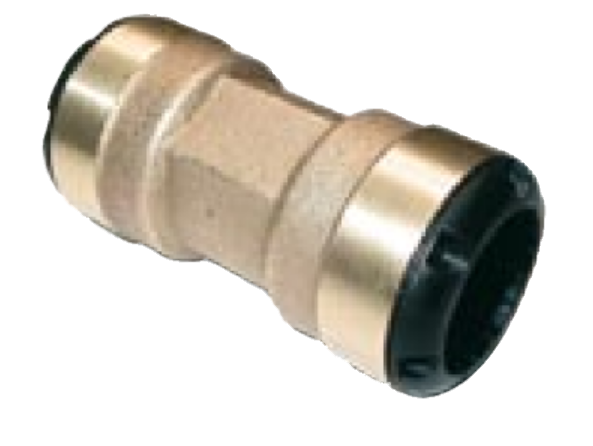

Pipe-to-Pipe Connector - Ø 1/2" - 3/4"



 Straight Connector  Straight Connector

Transair

ØD (in)

L

Z

RR06 H3 01

1/2

63.2

1.2

RR06 H5 01

3/4

85.5

1.2



Pipe-to-Pipe Connector - Ø 1 1/2" - 2"



 Straight Connector  Straight Connector

Transair

ØD (in)

ØG

L

Z

RR06 M4 01

1 1/2

82

155

2.6

RR06 M6 01

2

100

165

2.6

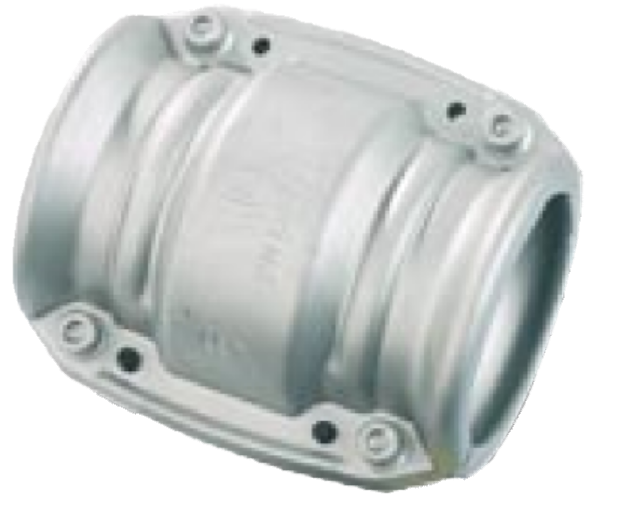

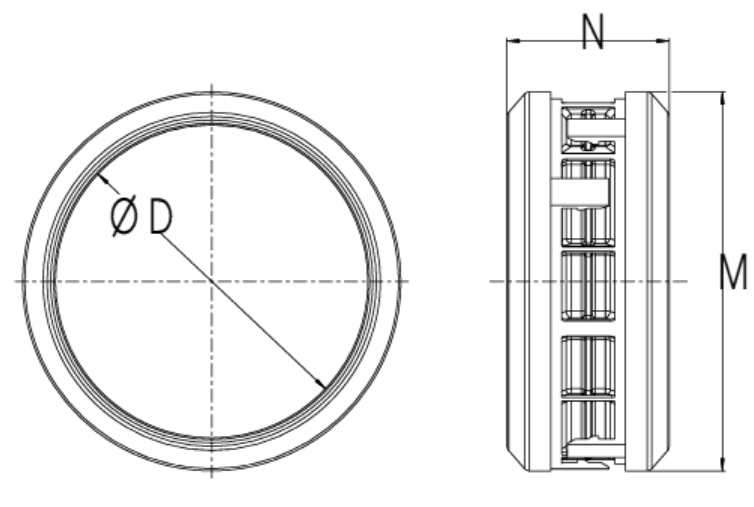

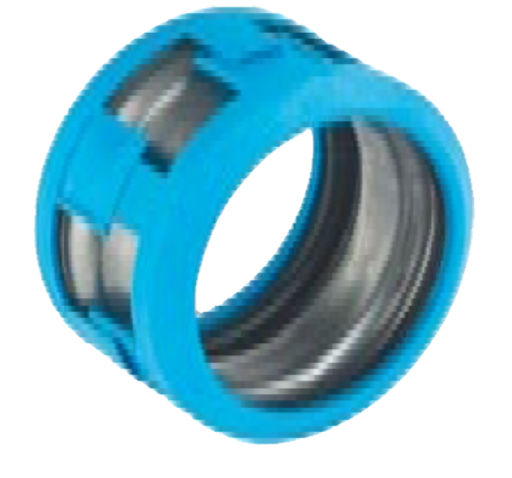

Connector (clamp + cartridge assembly) - Ø 3" - 4"



 Straight Connector

 Straight Connector
 Straight Connector

Straight Connector

Transair

ØD (in)

L

E1

E2

M

N

RR01 L1 01

3

146

104

132

88.7

51.4

RR01 L3 01

4

146

128

157

125

52.7
