THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

Max. working pressure:
  • 145 psi from -4°F to +185°F
Working Temperature:
  • Ø 1/2", Ø 3/4": from -4°F to +185°F
  • Ø 1 1/2", Ø 2", Ø 3", Ø 4": from -4°F to +140°F

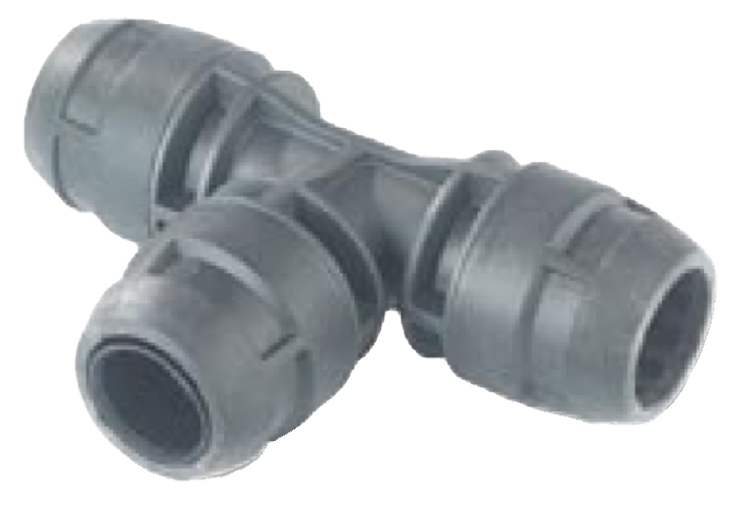

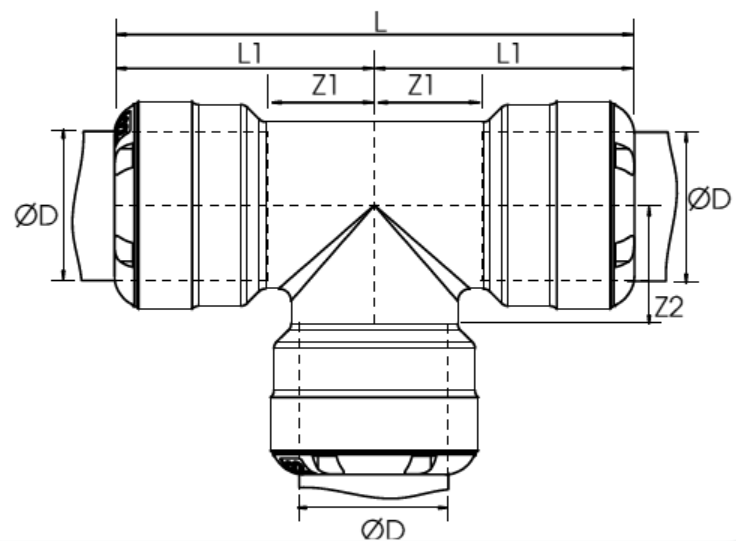

Equal Tee - Ø 1/2" - 3/4"



 Equal Tee  Equal Tee

Transair

ØD (in)

L

L1

Z1

Z2

RR04 H3 01

1/2

42.1

43.6

11.7

11

RR04 H5 01

3/4

56

56

14.5

14.5



Equal Tee - Ø 1 1/2" - 2"



 Equal Tee  Equal Tee

Transair

ØD (in)

ØG

L

H

Z1

Z2

RP04 M4 01

1 1/2

82

260

130

55

55

RP04 M6 01

2

100

279

139

64

64

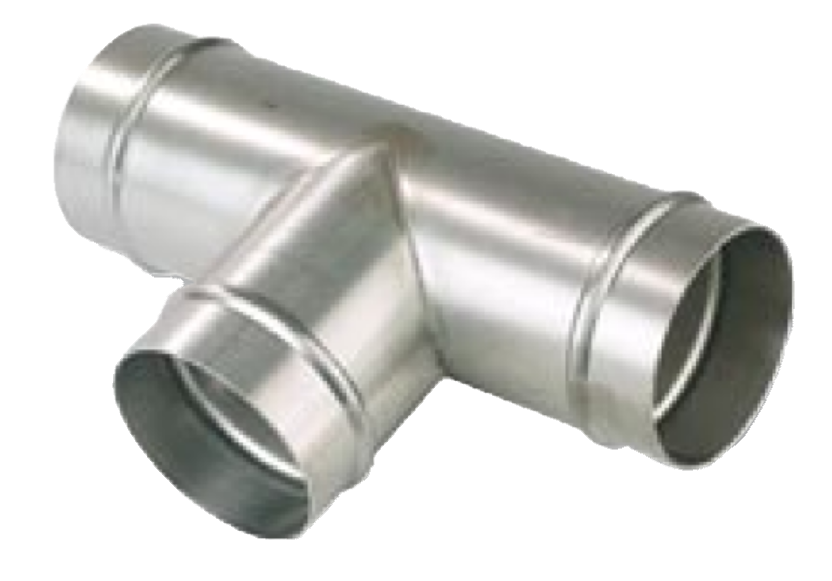

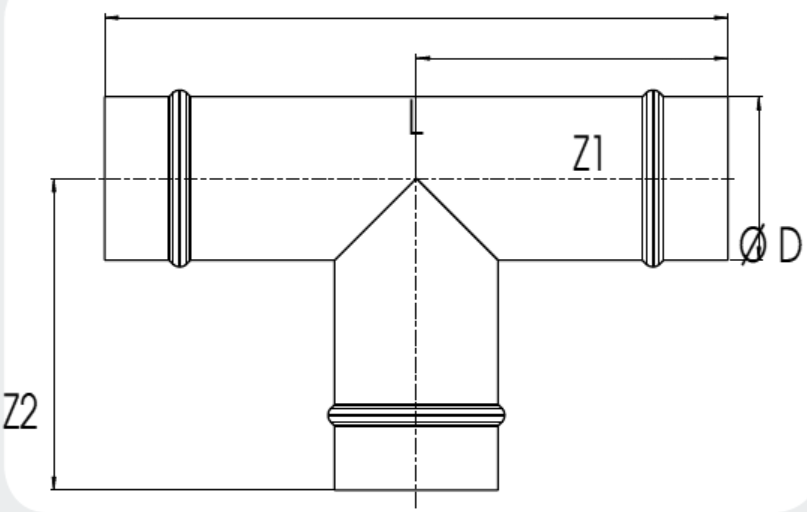

Equal Tee - Ø 3" - 4"



 Equal Tee  Equal Tee

Transair

ØD (in)

L

Z1

Z2

RX04 L1 00

3

290

145

145

RX04 L3 00

4

310

135

135

Use three connectors RR01 to connect equal tee RX04 to Transair pipe.

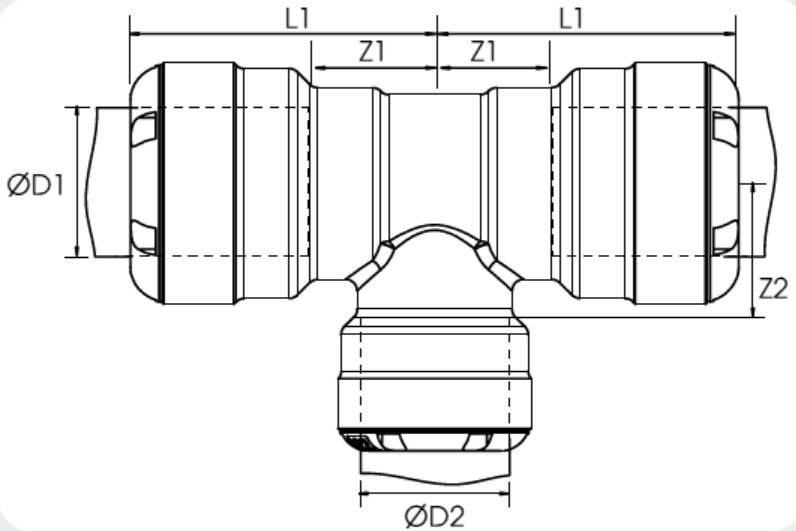

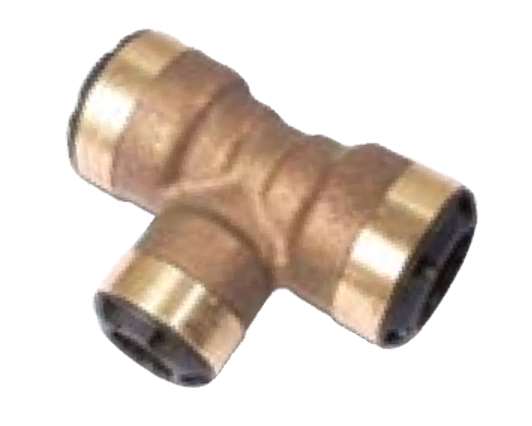

Reducing Tee - Ø 1/2" - 3/4"



 Reducing Tee  Reducing Tee

Transair

ØD1 (in)

ØD2 (in)

L

L1

Z1

Z2

RR04 H5 H3 01

3/4

1/2

53

46.6

11.5

16.2

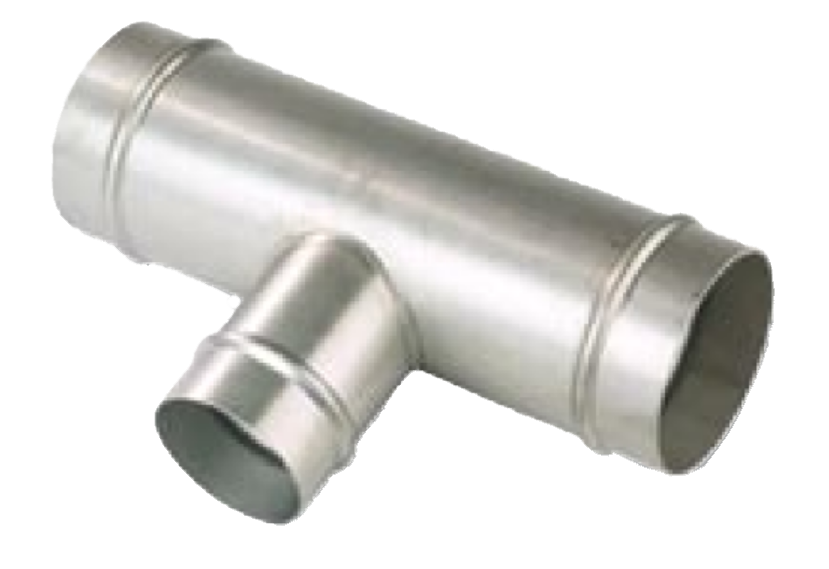

Reducing Tee - Ø 3" - 4"



 Reducing Tee  Reducing Tee

Transair

ØD1 (in)

ØD2 (in)

L

Z1

Z2

RX04 L1 M4

3

1 1/2

290

145

183

RX04 L1 M6

3

2

290

145

183

RX04 L3 M4

4

1 1/2

310

155

195

RX04 L3 M6

4

2

310

155

195

RX04 L3 L1

4

3

310

155

135

Use two connectors RR01 to connect reducing tee RX04 to Transair pipes 3" and 4" and connector RP06 to connect pipe-to-pipe connector RP06 to Transair pipes.

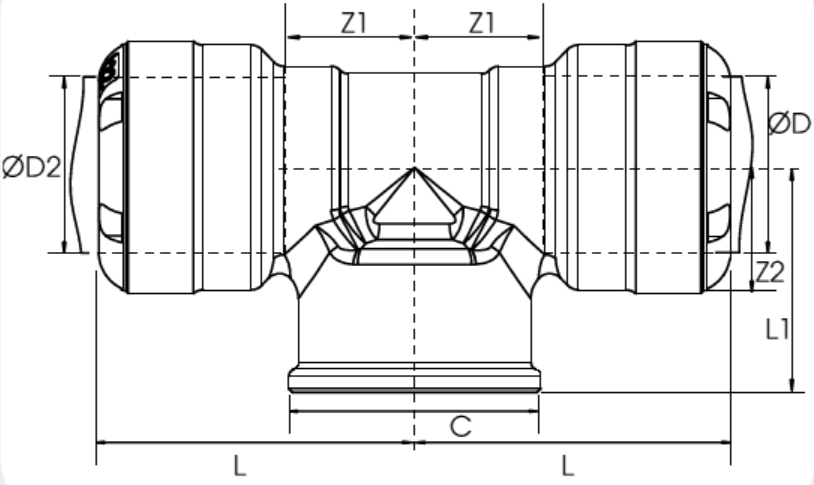

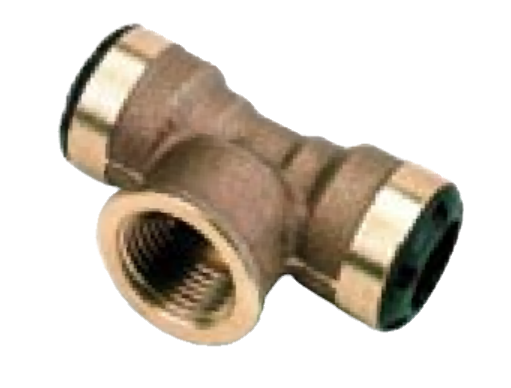

Threaded Tee - Ø 1/2" - 3/4"



 Threaded Tee  Threaded Tee

Transair

ØD (in)

L

L1

Z1

Z2

RR26 H3N04 01

1/2

42.1

30

11.7

13.7

RR26 H5N06 01

3/4

56

32.8

14.5

16.2



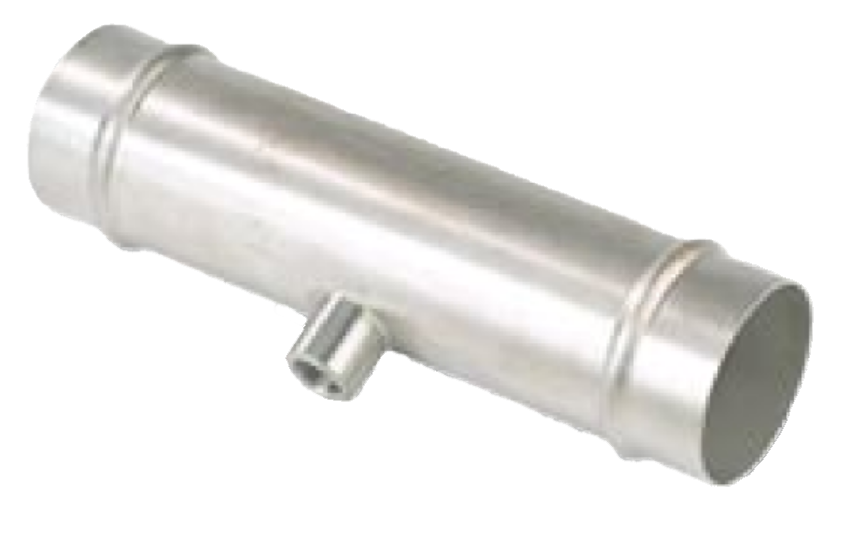

Threaded Tee - Ø 3" - 4"



 Threaded Tee  Threaded Tee

Transair

ØD (in)

C (in)

L

Z1

Z2

RX20 L1N04

3

1/2

290

145

63

RX20 L3N04

4

1/2

310

155

75.8

Use two connectors RR01 to connect threaded tee RX23 to Ø 3" or Ø 4" Transair pipe.
