Valves for Industrial Water Distribution | Parker Transair

THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER. The information below is for your reference only.

Transair ball valves and butterfly valves placed regularly throughout the system and at key locations, allow ease of system isolation,
adaptation and maintenance.

Max. working pressure:

145 psi from -4^°F to +185^°F

Working Temperature:

Ø 1/2", Ø 3/4": from -4^°F to +185^°F
Ø 1 1/2", Ø 2", Ø 3", Ø 4": from -4^°F to +140^°F

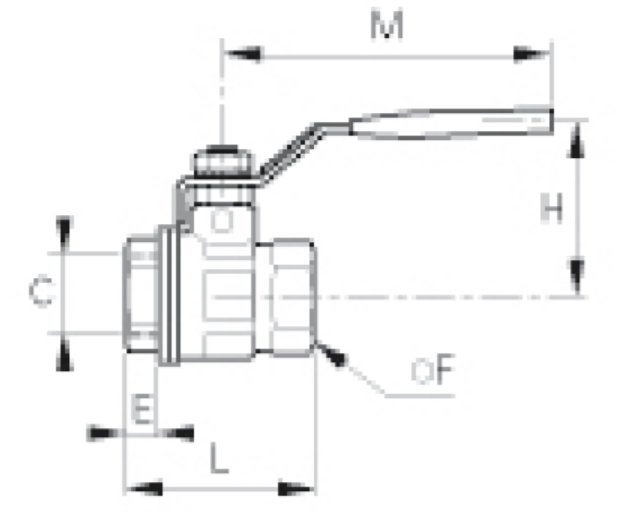

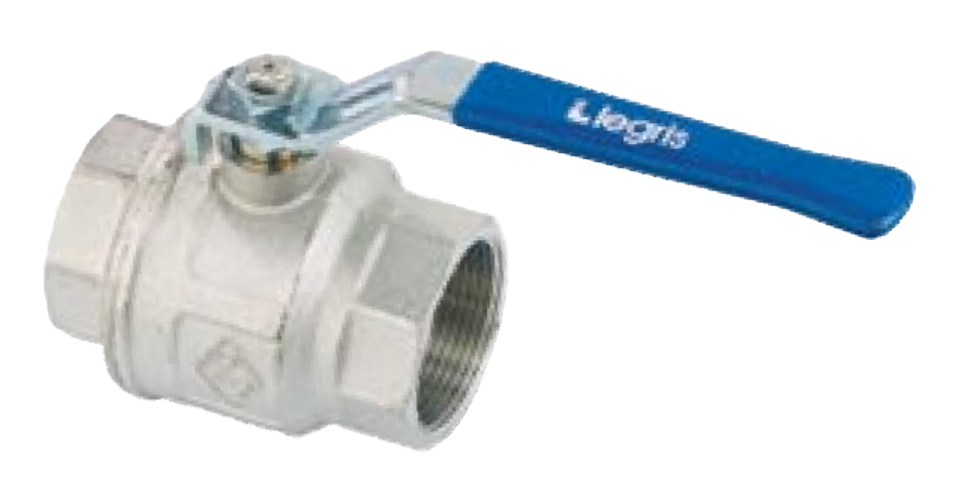

Double Female Valve, NPT

Transair	C	DN	Max Pressure (psi)	E	F	H	L	M
4962 60 14	1/4	10	435	11.4	20	43	51.5	98
4962 60 18	3/8	10	435	11.4	20	43	51.5	98
4962 65 22	1/2	15	435	13.5	25	47	55	98
4962 70 28	3/4	20	435	12.5	31	58	57.5	122
4962 75 35	1	25	435	15	38	60	69.5	122
4962 82 43*	1 1/4	32	362	17	48	77	81.5	153
4962 90 50*	1 1/2	40	362	28	54	83	95	153
4962 01 44*	2	50	362	22	66	95	113	162

*Model with CE marking.

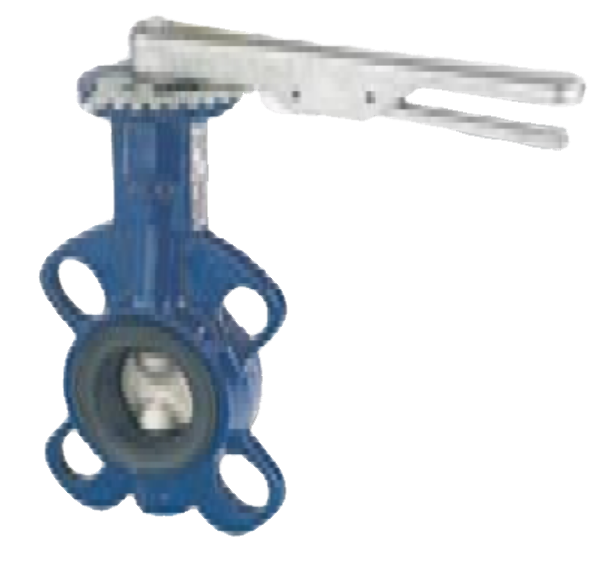

Butterfly Valve - Ø 1 1/2" - 2"

Transair	ØD (in)	DN	G	M	N	E
VR02 M4 01	3	80	145	300	250	50
VR02 M6 01	4	100	180	270	210	56

Seal cast in one piece (do not use any flange gasket for mounting with a flange).
Model with CE marking. Supplied with fixing bolts. Lockable version

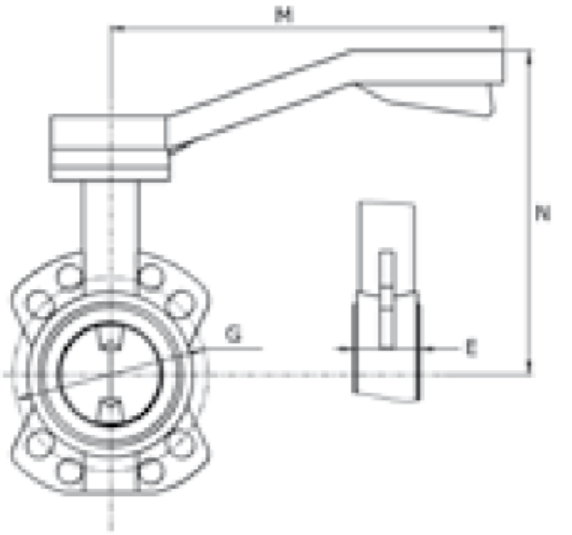

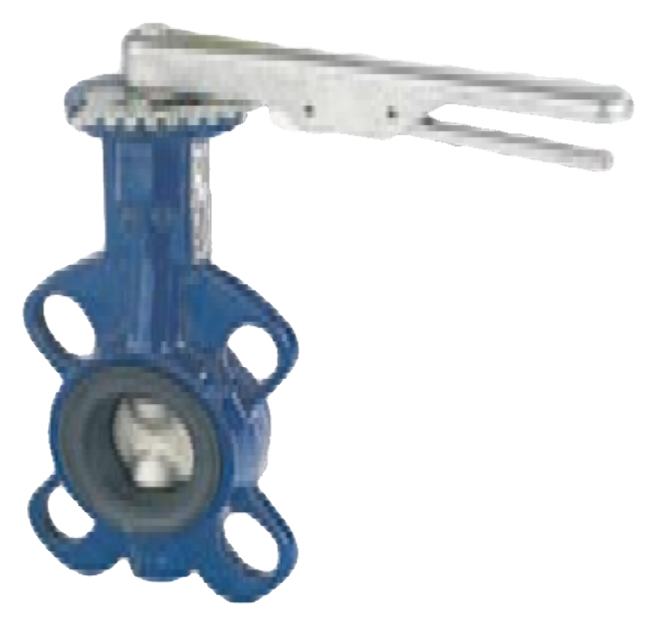

Butterfly Valve - Ø 3" - 4"

Transair	ØD (in)	DN	G	M	N	E
VR02 L1 01	3	80	145	300	250	50
VR02 L3 01	4	100	180	270	210	56

Seal cast in one piece (do not use any flange gasket for mounting with a flange).
Model with CE marking. Supplied with fixing bolts. Lockable version

Flange and Flange Gasket - Ø 1 1/2", 2", 3", 4"

Transair	ØD (in)	DN	D1	D2	D3	E	L	Associated Flange Gasket
RX30 M4 00	1 1/2	32	140	100	18	10	163	EW05 M4 01
RX30 M6 00	2	50	165	125	18	10	141	EW05 M6 01
RX30 L1 00	3	65	185	145	18	10	75	EW05 L1 01
RX30 L3 00	4	100	220	180	18	10	75	EW05 L3 01
RX31 L1 00*	3	80	200	160	18	10	75	EW05 L1 01
RX31 L3 00*	4	100	220	180	18	10	75	EW05 L3 01

The flange can be directly connected to the butterfly valve (do not use an additional gasket). For any other type of fitting (to machinery for example), please use the flange gasket. Performance conforms to standards EN 1092-1 and ISO 7005. *RX31 dimensions conform to ANSI standards.
