BVA Double Acting Hand Pumps

Model
Number

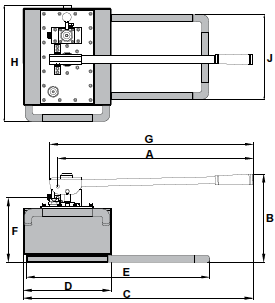

Dimensions (in)

A

B

C

D

E

F

G

H

J

K

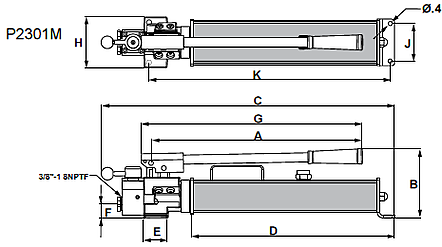

P2301M

25.45

6.81

27.44

3.74

1.06

25.93

21.73

4.72

3.54

22.56

P8701M

25.79

11.61

30.35

11.54

24.17

8.25

26.94

15.24

11.18

-

Used with
Cylinder

Pump
Type

Usable
Oil
Capacity
(in3)

Model
Number

Pressure Rating

Oil Displacement
per Stroke

Max.

Operating
Force
(lbs)

Piston
Stroke
(in)

Oil
Outlet
Port

Weight
(lbs)

1st
Stage
(psi)

2nd
Stage
(psi)

1st Stage
(in³)

2nd Stage
(in³)

Double
Acting

Two Speed

128.0

P2301M

200

10,000

0.81

0.14

99

0.82

3/8″-18NPTF

32.3

476.0

P8701M

290

10,000

7.31

0.29

143

1.67

3/8″-18NPTF

77.4
