PU55 Series Electric Pumps with Manual Valve | BVA Hydraulics

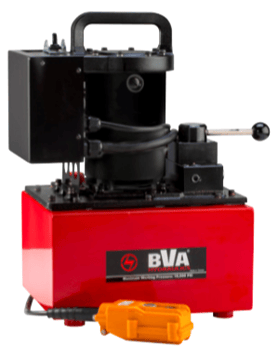

BVA PU55M4N025B Electric Pump with Manual Valve
  • Heavy duty universal 120 vac 50/60 Hz motor draws 25 amps at full load
  • Excellent power-to-weight ratio at only 63.1 lbs with 2.5 gallons of oil
  • Aluminum reservoir with optional roll cage provides strength and protection where plastic fails
  • Optional heat exchanger/system filter
  • 1 1/2 hp, 12,000 rpm, 64 cu. in/min

Electric Pump with Manual Valve Specifications

PU55M3N025B, PU55M4N025B, PU55M3L025B & PU55M4L025B

 Model #

Usable Oil Capacity

 Oil Output Flow Rate - 700 psi (in3) Oil Output Flow Rate - 5,000 psi (in3) Oil Output Flow Rate - 10,000 psi (in3) Valve Type Current Draw @ 10,000 psi (amps) Voltage Sound Level Weight (lbs)


2.5 gal (525 cu. in.)






3W/3P Manual Valve



50/60 Hz


90 63.1


4W/3P Manual Valve


3W/3P Manual Locking Valve
PU55M4L025B 4W/3P Manual Locking Valve

BVA PU55 Flow Chart
