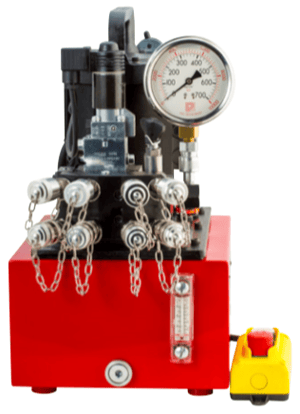

BVA PU55T4W025B Electric Pump with Torque Wrench Tools
  • Heavy duty universal 120 vac 50/60 Hz motor draws 25 amps at full load
  • Excellent power-to-weight ratio at only 63.1 lbs with 2.5 gallons of oil
  • Aluminum reservoir with optional roll cage provides strength and protection where plastic fails
  • Optional heat exchanger/system filter
  • 1 1/2 hp, 12,000 rpm, 64 cu. in/min

Electric Pump with Torque Wrench Tools Specifications

PU55T1W025B & PU55T4W025B

Model #

Usable Oil Capacity

 Oil Output Flow Rate - 700 psi (in3) Oil Output Flow Rate - 5,000 psi (in3) Oil Output Flow Rate - 10,000 psi (in3) Valve Type Current Draw @ 10,000 psi (amps) Voltage Sound Level Weight (lbs)
PU55T1W025B 2.5 gal (525 cu. in) 448.5



75.7



64

1 Torque Wrench Tool
25

120VAC

50/60 Hz



 90 63.1
PU55T4W025B 4 Torque Wrench Tools
