BVA Single Speed Metal Hand Pumps



Used with
Cylinder

Pump
Type

Usable
Oil
Capacity
(in3)

Model
Number

Pressure Rating
(psi)

Oil Displacement
per Stroke

Max.
Operating

Force

(lbs)

Piston
Stroke
(in)

Oil
Outlet
Port

Weight
(lbs)

Single
Acting

Single
Speed

36.5

P601S

10,000

0.15

109

0.79

3/8″-18NPTF

13.0

67.0

P1201S

10,000

0.13

89

0.82

3/8″-18NPTF

20.0

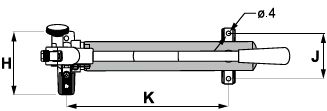

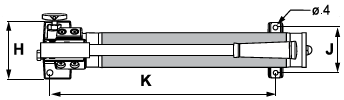

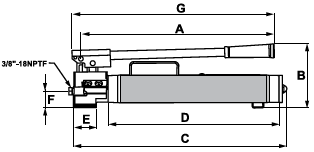

Dimensions (in)

Model Number

A

B

C

D

E

F

G

H

J

K

P601S

18.94

6.46

19.53

15.35

1.57

1.26

20.79

5.20

3.74

14.45

P1201S

21.73

6.73

23.07

3.74

1.06

1.73

21.73

5.31

3.74

18.27
