BVA Two Speed Metal Hand Pumps

Model
Number

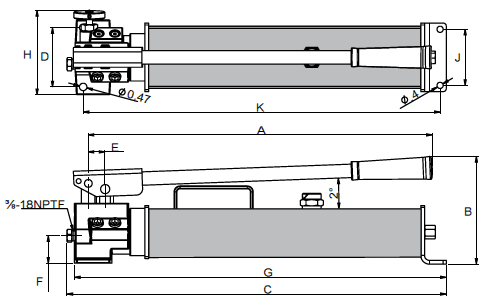

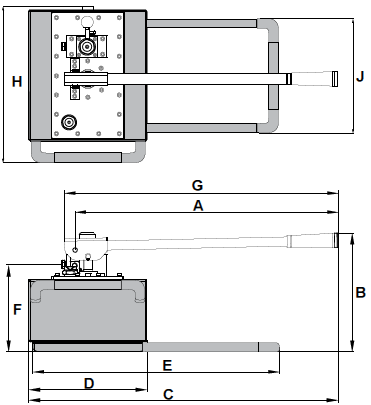

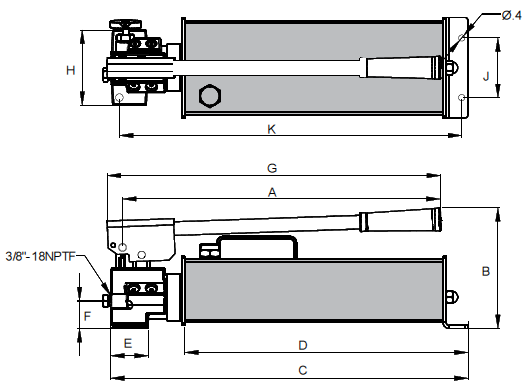

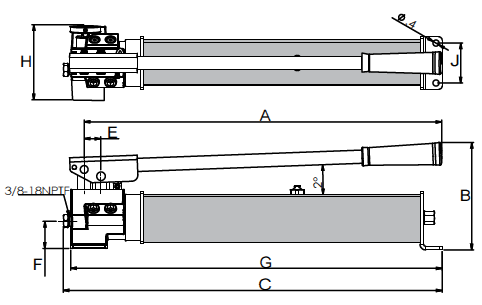

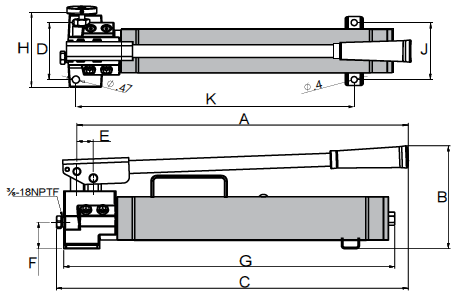

Dimensions (in)

A

B

C

D

E

F

G

H

J

K

P1201

21.73

6.73

23.07

3.74

1.06

1.73

21.73

4.92

3.74

18.27

P2001

22.91

6.89

24.29

−

1.06

1.73

23.82

4.80

2.56

−

P2301

21.73

6.81

23.98

3.74

1.06

1.73

23.50

5.31

3.54

22.56

P4301

21.73

7.68

22.87

3.74

1.06

1.73

22.40

5.31

3.74

21.46

P8701

25.79

11.61

30.35

11.54

24.17

8.25

26.94

15.24

11.18

-

Used with
Cylinder

Pump
Type

Usable Oil
Capacity
(in3)

Model
Number

Pressure Rating

Oil Displacement
per Stroke

Max.
Operating

Force

(lbs)

Piston
Stroke
(in)

0.82 0.82 0.82 0.82

Oil
Outlet
Port

Weight
(lbs)

1st
Stage
(psi)

2nd Stage
(psi)

1st Stage
(in³)

2nd Stage
(in³)

Single Acting

Two Speed

67.0

P1201

200

10,000

0.81

0.14

99

3/8″-18NPTF

20.5

122.0

P2001

200

10,000

0.81

0.14

95

3/8″-18NPTF

24.2

128.0

P2301

200

10,000

0.81

0.14

99

3/8″-18NPTF

27.7

250.0

P4301

200

10,000

0.81

0.14

99

3/8″-18NPTF

37.6

476.0

P8701

290

10,000

7.71

0.29

143

1.69

3/8″-18NPTF

76.0
