Popular FRL Combinations | Parker P3Y Series

 P3Y-Filter-Regulator-Lubricator

FEATURES

  • 1" or 3/4" ports
  • 5 micron element
  • 12 bar (174 psig) regulator + gauge
  • Wall mounting brackets

SYMBOLS

p3y-filterregulator-lubricator-symbol

Back to Global FRLS Main Page


Part Numbers


Part Numbers Description Port Size Flow Weight
P3YCB96SECNFLNF Combined manual / semi-auto drain
3/4" 91 dm3/s (193 SCFM) 7.3 lbs (3.3 kg)
P3YCB96SEANFLNF Auto drain
3/4" 91 dm3/s (193 SCFM) 7.3 lbs (3.3 kg)
P3YCB98SECNFLNF Combined manual / semi-auto drain 1" 174 dm3/s (369 SCFM) 7.3 lbs (3.3 kg)
P3YCB98SEANFLNF Auto drain
1" 174 dm3/s (369 SCFM) 7.3 lbs (3.3 kg)

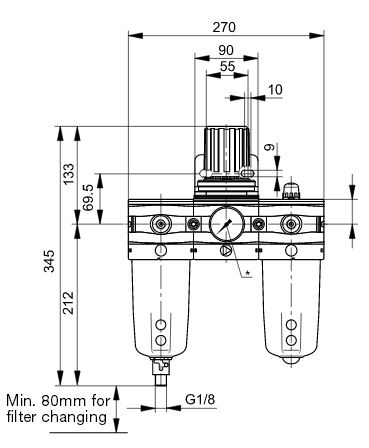

p3y-filterregulator-lubricator-dimensions

Warning Triangle WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
