Particulate Filter | Parker P3Y Series

 P3Y-Particulate-Filter

FEATURES

  • Integral 3/4" or 1" ports
  • High efficiency particulate element
  • Excellent water removal efficiency
  • Robust, lightweight aluminum construction
  • Low minimum temperature (-40°F) with combined manual/semi-auto drain

SYMBOLS

P31-Mini-Particulate-Filter-Pulse-Drain P31-Mini-Particulate-Filter-Pulse-Drain
Manual/Semi-Auto Drain Auto Drain

Back to Global FRLs Main Page


Part Numbers


Part Number  Description

Port Size

 Flow dm3/s (scfm)

Max. Bar (psig)

Height

mm (in)

Width

mm (in)

Depth

mm (in)

P3YFA16GSCN

Combined manual / semi-auto drain

 3/4"  116  (246)
17.5 (254) 244 (9.6) 90 (3.5) 94 (3.7)
P3YFA16GSAN

Auto drain

 3/4" 116  (246)  17.5 (254) 244 (9.6) 90 (3.5) 94 (3.7)
P3YFA18GSCN Combined manual / semi-auto drain  1" 119 (252)
17.5 (254) 244 (9.6) 90 (3.5) 94 (3.7)
P3YFA18GSAN  Auto drain 1" 119 (252) 17.5 (254) 244 (9.6)  90 (3.5)
94 (3.7)

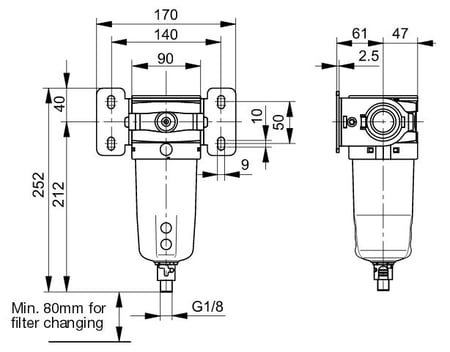

p3y-particulate-filter-dimensions


Service Kits

Part Number Description
P3YKA00ESE 5 micron element kit
P3YKA00ESG 40 micron element kit
P3YKA00BSC Bowl kit with combined manual / semi-auto drain
P3YKA00BSA Bowl kit with auto drain

Technical Specifications

Maximum Inlet Pressure:
17.5 bar (254 psig)
Temperature Range: (Auto drain)  14°F to 140°F
  (Combined drain) -40°F to 140°F
Typical flow (5 micron element, 6.3 bar inlet pressure, 0.5 bar pressure drop): 119 dm3/s (252 scfm)
Particle Removal: 5 micron
Bowl Capacity: 4.4 oz
Manual / semi-auto drain:
Closed at 0.8 bar (11.6 psig)
  G1/8 thread male
Auto drain powl pressure to close drain: 0.8 bar (11.6 psig)
Operating range manual override facility:
0.8 bar (11.6 psig) to 17.5 bar (254 psig)
