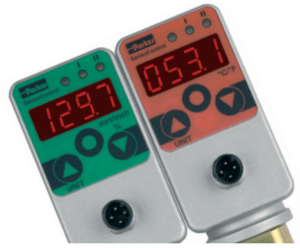

SCLTSD Level Temperature Controller Parker’s SensoControl Level /Temperature Controllers provide a single instrument solution for monitoring two vital system parameters; fluid level and temperature. The color coded displays allow the user to easily identify tank and temperature measurements. This simple, robust solution is programmable, aiding in the regulation of critical operating parameters for fluid systems.

 Parker SCLTSD Level/Temperature Controller Applications & Features

Applications Include:

  • Hydraulic Power Units
  • Test Stands
  • Industrial plant & Equipment
  • Power Generation Systems

Features:

  • 290ƕ Rotatable digital display
  • Vibration resistant
  • Rugged housing (IP67 Rated)
  • Dual function, single point access

 Parker SCLTSD Series Level/Temperature Controllers

Part Number Probe Length Electrical Output Port Connection Electrical Connection
SCLTSD-14.6-17-07 14.6 inch 1 sw / 1 analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 4 pin
SCLTSD-14.6-17-05 14.6 inch 2 sw / 1 analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 5 pin
SCLTSD-14.6-07-07 14.6 inch 2 sw / no analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 4 pin
SCLTSD-20.5-17-07 20.5 inch 1 sw / 1 analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 4 pin
SCLTSD-20.5-17-05 20.5 inch 2 sw / 1 analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 5 pin
SCLTSD-20.5-07-07 20.5 inch 2 sw / no analog 1-1/16 - 12 UNF male SAE-12 with O-ring M12 X 1, 4 pin

Parker SCLTSD Series Level/Temperature Controller Dimensions

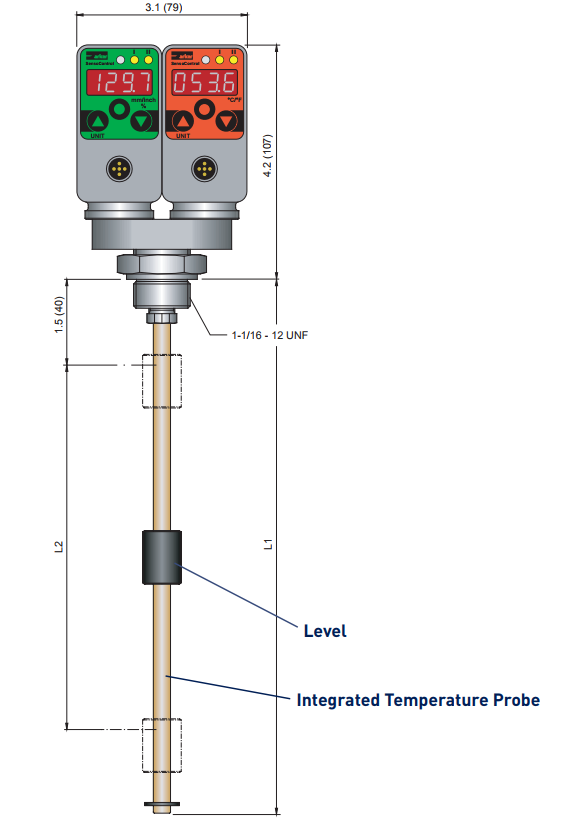

SCLTSD Level Temperature Controller Dimensions

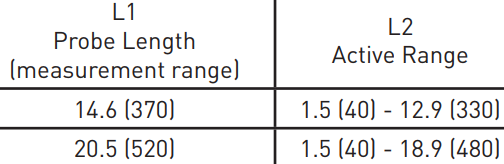

SCLTSD Level Temperature Controller Dimension Specs

SCLTSD Series Level/Temperature Controller Electrical Connection Options

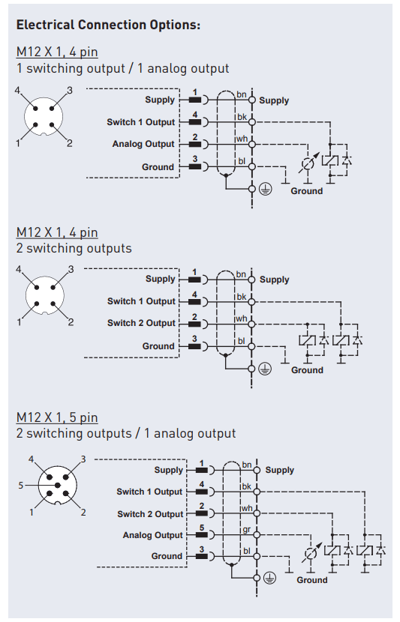

SCLTSD Level Temperature Controller Electrical Connections



Technical Specifications
Outputs 2 PNP MOSFET switches, optional analog (4-20 mA)
Contact Functions Normally open / closed, window / hysteresis, freely settable
Switching Point & Display Accuracy +/- 1% FS
Protection Class IP67
Response Speed < 700ms
Long Term Stability < 0.1% FS/a
Load Reversals > 20 M
Resolution 0.2 inches (5mm)
Temperature Resolution 1° F



Physical Properties
Material Housing Zinc diecasting Z 410; painted
Material Fitting Nickel plated brass
Material Seal Nitrile
Material Float Nitrile
Material Level Rod Brass
Sensing Element level Resistance reed with float
Sensing Element Temperature PT1000 RTD
Display 4 figure, 7 segment red LED; digit height 0.35 inches (9mm)



General Data
Measuring Element Resistance reed array with float
Electrical Protection Short circuit, reverse polarity, overload production
Power Supply 15…30 VDC nominal 24 VDC; protection class 3
Switching Voltage Power supply 1.5 VDC
Temperature Range - Enviromental, Media -4° to 185° F
Temperature Range - Storage -40° to 212° F
Temperature Coefficient < +/- 0.3% FS/10K
Vibration Resistance Meets IEC 60068-2-29
Shock Resistance Meets IEC 60068 2-32
EMI Compatibility DIN EN 61000-6-3
DIN EN 61000-6-2
Working Pressure 14.5 PSI
Media Compatibility Water, lubricating oil, hydraulic oil, acids, and alkalis



Dimensions
Float 0.71 inches wide, 1.38 inches long (18mm wide, 35mm long)
Level Rod 0.31 inches wide (8mm wide)

 Parker SCLTSD Series Level/Temperature Controller Display Options

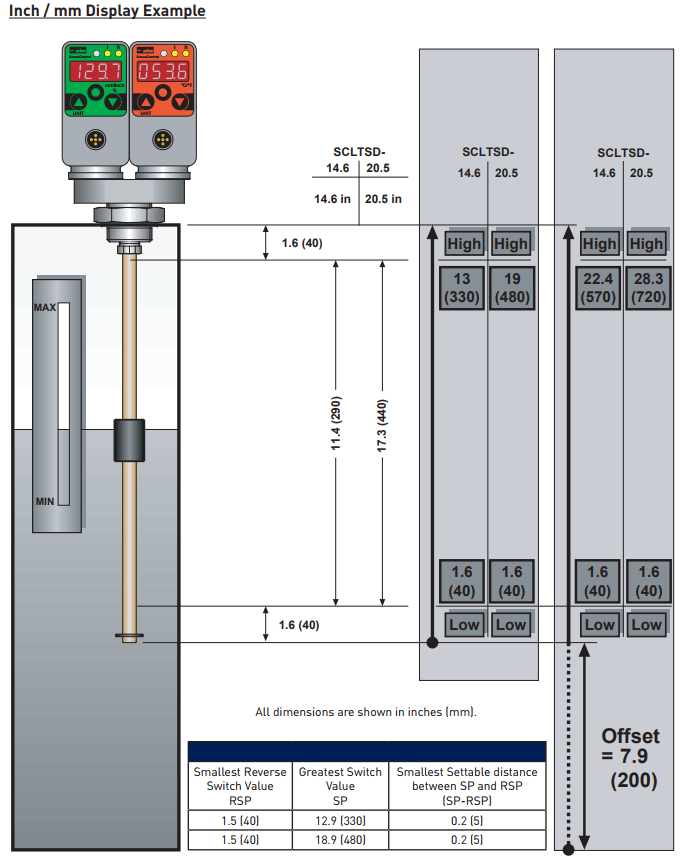

SCLTSD Level Temperature Controller Display Options
