Industrial Sensor Accessories | Cables & Plugs
 |

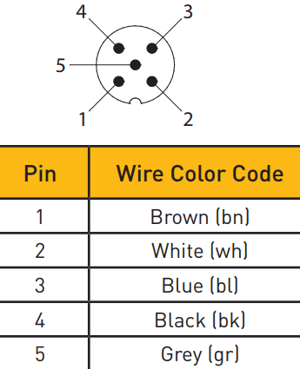

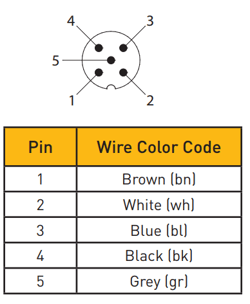

SensoControl Cables and Plugs are designed in accordance with the requirements of industrial sensors and controllers. M12 cables and plugs are shielded to protect against interference and have a five pin configuration. Five pin cables are suitable for both four and five pin connections. The five pin cables are fully compatible with sensor variants having a four pin plug. |
SensoControl Industrial Sensor Cable & Plugs Compatibilities & Features
|
Compatible with:
|
Features:
|
SensoControl Industrial Sensor SCK Connecting Cables (open end)
| Part Number | Cable Length (m) | Plug-in Connector |

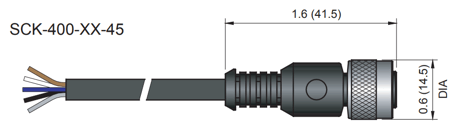

| SCK-400-02-45 | 6.5 ft (2m) | M12 socket, straight |

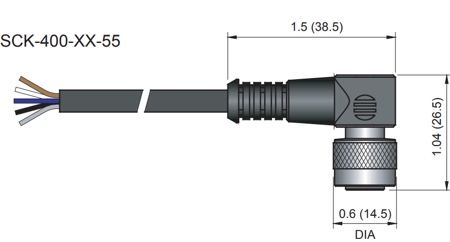

| SCK-400-02-55 | 6.5 ft (2m) | M12 socket, 90° |
| SCK-400-05-45 | 16 ft (5m) | M12 socket, straight |
| SCK-400-05-55 | 16 ft (5m) | M12 socket, 90° |
| SCK-400-10-45 | 32.5 ft (10m) | M12 socket, straight |
| SCK-400-10-55 | 32.5 ft (10m) | M12 socket, 90° |
 |
 |
 |
SensoControl Industrial Sensor SCK Seperate Plugs
| Part Number | Plug-in Connector |

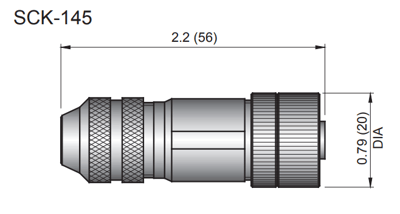

| SCK-145 | M12 socket, straight |

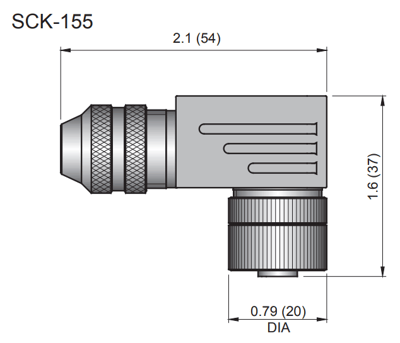

| SCK-155 | M12 socket, 90° |

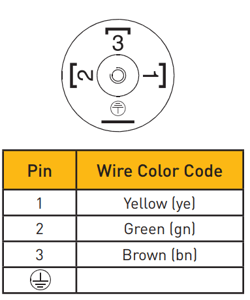

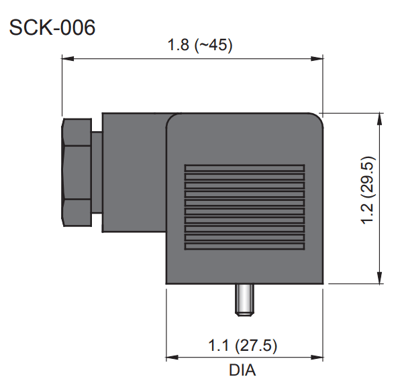

| SCK-006 | DIN EN 175301-803 form A |
 |
 |
 |
|
 |
 |
