Communication Hardware | Transair SCOUT


FEATURES


  • Wireless star topology with sensors communicating directly
  • Primary receiver node connected to collection server via USB 2.0 port to primary receiver node
  • Data buffer storage for communication interruptions
  • Data transmission to the cloud through wireless, ethernet or cellular options
  • Wireless signal strength and battery voltage reported in software
  • Wireless Frequency: 902 to 928 MHz
  • Temperature Range: 4°F to 167°F
  • Data Upload Rate: 60 seconds to Variable Rate
  • AC Power Input: 100 to 240V ~ 1.8A, (50 to 60 Hz)
  • Standard External Communication Modes: Ethernet, Wireless



Collection Server

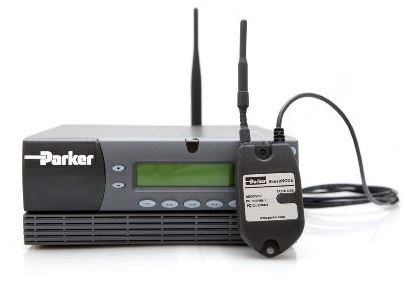

Transair SCOUT communication hardware
Part Number Ethernet Wifi CDMA GPRS
SN-CS-1 ◊ ◊
SN-CS-2 ◊ ◊ ◊
SN-CS-3 ◊ ◊   ◊

Primary Receiver Node

Part Number: SNPRN-2



Optional Enclosure



SCOUT sensor communicationhardware enclosure



Impact and corrosion-resistant polycarbonate enclosure with a NEMA 4X rating for indoor and outdoor use, non-hazardous dust, washdown and splash applications.


Dimensions: 11"w x 15"d x 5"h

Part Number: SN-CS-EN


Collection Server-Mounting Kit


 SCOUT sensor communication hardware mounting kit

Corrosion-proof aluminum shelf with 1-1/2" backsplash, pre-drilled gusset supports and two fasteners for long-lasting durability and dependability.


Dimensions: 24"w x 12"d

Part Number: SN-CS-MK
