High-Strain Sensors | Parker SensoNODE™ Blue

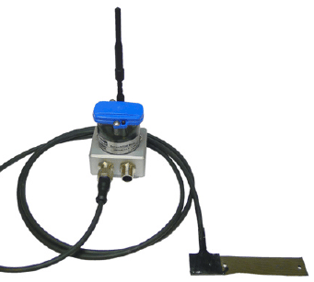

Parker High-Strain sensors are soft, thin devices made from tough silicone rubber that can be used to measure strain, displacement or vibration in machines, vehicles and facilities. These sensors take accurate measurements and readings while being strained up to 100% for milions of cycles. They can withstand heat, cold, vibration, moisture and shock in the harshest environments.
FEATURES
|
Technical Data

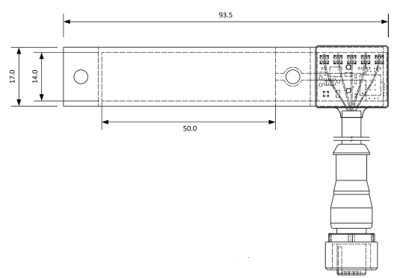

Active Area Dimensions |
SNES-50R14-C3-02: 50mm x 14mm SNES-100R14-C3-02: 100mm x 14mm |
Maximum Extension |
100% stretch of the active area (e.g. 50 mm for SNES-50RT14) |
Accuracy | ±0.25% strain (±125μm) |
Sensitivity |
0.026% strain (e.g. 13μm for SNES-50RT14) |
Linearity |
±1% Full Scale |
Hysteresis | ±1% Full Scale |
Stretching Force Profile |
<1N @ 10% Strain; <9N @ 100% Strain |
Cyclic Life |
> 1 Million Cycles |
Measurement Outputs |
Percent strain in 100th of a percent of the length of the active area, Temperature in degrees Kelvin |
Sampling Rate | 1 - 10hz for standard configuration (designed for reporting via wireless), 1 - 100hz+ by request |
Wired Electrical Interface |
Serial (UART & SPI); 3.3V DC |
Operating Environment |
-40°C to 85°C, 0 to 100% RH, IP67 rated for industrial applications |
Wireless Radio |
2.4Ghz for SensoNODE Blue Radio Transmitter |
SensoNode Part Numbers
Part Number | Active Area (mm) |
Extension (mm) |
SNES-50R14-C3-02 | 50 x 14 | 50 |
SNES-100R14-C3-02 | 100 x 14 | 100 |
