Wireless Temperature Sensors | Parker SensoNode

 SensoNode temperature sensors

 FEATURES

  • Available in a unique clamp design for quick attachment to pipe or hard tubing
  • User definable measurement units
    (Celsius or Farenheit)
  • Ports: FNPT
  • Corrosion resistant materials
Back to SensoNode Main Page

Technical Data

 TEMPERATURE SENSORS  Sensonode Temperature Ported Sensor Black Sensonode Temperature Ported Sensor White   SensoNode Temperature Clamp
 Working Pressure 0-150 psi 0-150 psi N/A
 Max Overload  3x  3x N/A
 Burst Pressure  4x  4x N/A
 Accuracy (77°F) ±2.5%  ±2.5%  ±5.0%
 Resolution  1°F  1°F 2°F
 Scan/Transmit Rate  5 secs  5 secs  2 secs
 Ambient Temp Range  -4°F to 167°F  -4°F to 167°F   -4°F to 167°F
 Media Temp Range 14°F to 185°F 14°F to 185°F   -40°F to 257°F
 Port  1/4" Female NPTF 1/4" Male NPTF  Clamp



Part Numbers

Sensonode Temperature Ported Sensor Black Sensonode Temperature Ported Sensor White Sensonode Temperature Clamp
SNT-10-B-4FP-KB SNT-10-B-4FP-WB SNT-0-B-CL-KB



Part Number Nomenclature

 SensoNode Temperature Part Numbers

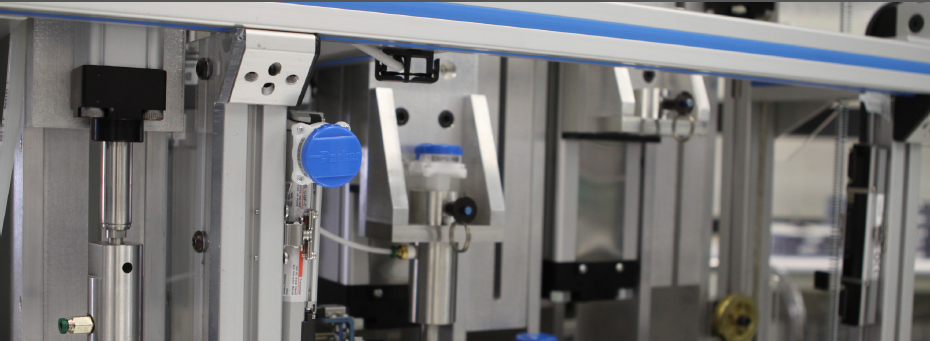

parker-sensonode-installed
