Tube Nuts for Automotive Brake & Clutch Applications | BrakeQuip
Most BrakeQuip tube nuts have two distinct features for easier installation & dismantling:1. A small step on the end of the thread allows for easier installation, because the step acts as a guide. It also makes it easier to start the thread, and gives the thread clearance at the end. Thread clearance is important in a nut, because it eliminates the problem of flaring out when over tightened. If this happens, the nut can be very hard to remove and can destroy the thread when removed.
2. A thread relief under the hex allows the nut to be screwed down right up to the hex if necessary.
FEATURES:
  |
1. Male & Female Nuts Available 2. Imperial & Metric Threads 3. Great selection of thread sizes 4. Zinc plated for corrosion resistance 5. Assortment kits available (See PN BQ7005 or BQ 7006 on our Automotive Fitting Assortment Kits page). |
Tube Nuts

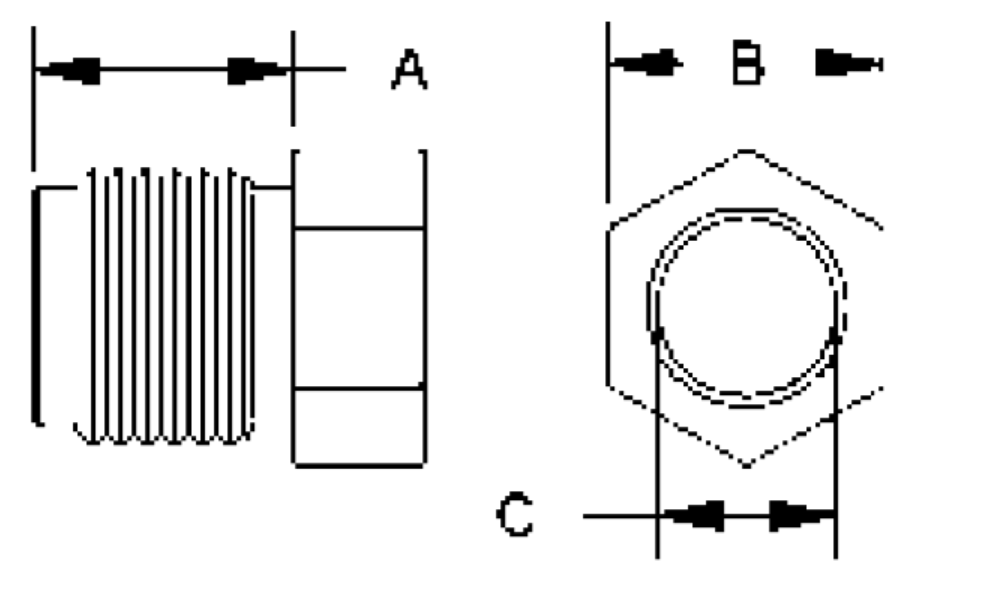

Steel Male Tube Nuts
| PART NO | THREAD | DIM A | DIM B | DIM C |
| BQ2577 | 7/16" x 24NS | 13mm | 7/16" | 1/4" |
| BQ2578 | 1/2" x 20NF | 12mm | 1/2" | 5/16" |
| BQ4276 | 3/8" x 20BSF | 16mm | 3/8" | 3/16" |
| BQ4277 | 7/16" x 20NF | 18mm | 7/16" | 1/4" |
| BQ4285 | 3/8" x 24NF | 16mm | 3/8" | 3/16" |
| BQ4510 | M9 x 1 | 14mm | 10mm | 3/16" |
| BQ4511 | M10 x 1 | 14mm | 10mm | 3/16" |
| BQ4511-11 | M10 x 1 | 12mm | 11mm | 3/16" |
| BQ4511LT | M10 x 1 | 14mm | 10mm | 3/16" |
| BQ4512 | M10 x 1.25 | 15mm | 10mm | 3/16" |
| BQ4513 | M12 x 1 | 15mm | 12mm | 1/4" |
| BQ5555 | 3/8" x 24NF | 10mm | 3/8" | 3/16" |
| BQ5842 | 7/16" x 24NS | 10mm | 7/16" | 3/16" |
| BQ6118 | 7/16" x 20NF | 18mm | 7/16" | 3/16" |
| BQ9169 | M12 x 1 | 15mm | 14mm | 1/4" DIN |
| BQ9180 | M12 x 1 | 15mm | 12mm | 3/16" |
| BQ9181 | 5/8" x 18NF | 14mm | 5/8" | 3/8" |
| BQ9182 | M12 x 1.5 | 13mm | 12mm | 1/4" |
| BQ9183 | M14 x 1.5 | 15mm | 14mm | 1/4" |
| BQ9184 | 1/2" x 20NF | 13mm | 1/2" | 3/16" |
| BQ9185 | 9/16" x 18NF | 14mm | 9/16" | 3/16" |
| BQ9186 | 9/16" x 18NF | 14mm | 9/16" | 1/4" |
| BQ9187 | 1/2" x 20NF | 14mm | 1/2" | 1/4" |
| BQ9188 | M10 x 1.5 | 15mm | 10mm | 3/16" |
| BQ9189 | M11 x 1.0 | 15mm | 11mm | 3/16" |
| BQ9190 | M11 x 1.25 | 15mm | 11mm | 3/16" |
| BQ9191 | M11 x 1.5 | 15mm | 11mm | 3/16" |
| BQ9192 | M12 x 1.25 | 15mm | 12mm | 3/16" |
| BQ9193 | M12 x 1.5 | 15mm | 12mm | 3/16" |
| BQ9194 | M13 x 1.0 | 15mm | 13mm | 3/16" |
| BQ9195 | M13 x 1.25 | 15mm | 13mm | 3/16" |
| BQ9196 | M13 x 1.5 | 15mm | 13mm | 3/16" |
| BQ9197 | M14 x 1.5 | 15mm | 14mm | 5/16" |
| BQ9198 | M16 x 1.5 | 16mm | 16mm | 5/16" |
| BQ9199 | M18 x 1.5 | 16mm | 18mm | 5/16" |
Steel Female Tube Nuts
| PART NO. | THREAD | A | B | C |
| BQ55 | 3/8' x 24NF | 8mm | 1/2' | 3/16' |
| BQ57 | 7/16' x 20NF | 3/8' | 9/16' | 1/4' |
| BQ9174 | M12 x 1 | 10mm | 16mm | 3/16' |
| BQ9175 | M10 x 1 | 10mm | 1/2' | 3/16' |
| BQ9176 | 3/8' x 24NF | 10mm | 1/2' | 3/16' |
| BQ9177 | 1/2' x 20NF | 7/16' | 5/8' | 5/16' |
| BQ9178 | M12 x 1.5 | 10mm | 16mm | 1/4' |
| BQ9179 | M12 x 1 | 10mm | 16mm | 1/4' |
FEATURES:
  |
Give your vehicle the professional look of non rusting stainless steel. 1. Bright Finish 2. Professional Design 3. Long Lasting |
Stainless Steel
Stainless Steel Tube Nuts
| PART NO. | TYPE | THREAD | A | B | C |
| BQ2577SS | Male | 7/16' x 24NS | 13mm | 7/16" | 1/4" |
| BQ4511SS | Male | M10 x 1 | 14mm | 10mm | 3/16" |
| BQ4513SS | Male | M12 x 1 | 15mm | 12mm | 1/4" |
| BQ5555SS | Male | 3/8' x 24NF | 10mm | 3/8" | 3/16" |
| BQ5842SS | Male | 7/16' x 24NS | 10mm | 7/16" | 3/16" |
