Parker Twist-Lock Series Pneumatic Couplings | General Purpose - Push-to-Connect

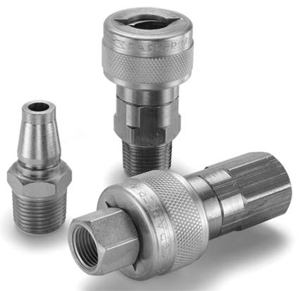

Parker Twist-Lock Series Pneumatic QC

Parker Twist-Lock Series Push-to-Connect design is meant for easy, one handed operation.

Twist-Lock series interchange with Schrader Twist-Lock couplings.

Standard seals are Nitrile. Optional materials are available - contact us with questions.



Twist-Lock Series QC Dimensions & Specifications:


Choose another GP - Push-To-Connect QC
Choose another Pneumatic QC
Go back to Product Overview



Parker Twist-Lock series has a variety of port configurations that are available to meet specific needs.

Twist-Lock series has zinc bodies with Chromium-6 Free plated steel sleeves and nipples. It is designed to protect against accidental uncoupling.

Common applications: compressed air, water, grease, paint, limited vacuum and limited gases.

Parker Twist-Lock Series Couplings Specifications & Performance



Body Size (in.) 1/4 1/2
Rated Pressure (PSI) 300 300
Temperature Range (Nitrile seal) -40° F to +250° F.
Locking Device CAM
Vacuum Service Not Recommended



Parker Twist-Lock Series QC Pressure Drop Chart



Parker General Purpose Pneumatic Coupling Repair Kits



The repair kits below are for Parker 10, 20, 30, 50, 70, & TL Series Pneumatic Couplings.

Body
Size
Seal
Material
Part
No.
1/4 Nitrile 21K
1/4 Ethylene Propylene 21KW
1/4 Fluorocarbon 21KY
3/8 Nitrile 14K
3/8 Ethylene Propylene 14KW
3/8 Fluorocarbon 14KY
1/2 Nitrile 16K
1/2 Ethylene Propylene 16KW
1/2 Fluorocarbon 16KY
3/4 Nitrile 38K
3/4 Ethylene Propylene 38KW
3/4 Fluorocarbon 38KY
