Parker KH | 24° Flareless Two-Way Ball Valves for Metric Tubing | Parker
EO fittings are a great choice for leak free connections under various service conditions ranging from sealing high vacuum and small molecule gases, to high-pressure hydraulic fluids. EO fittings’ compact design makes them ideal for plumbing applications in limited or tight space. |

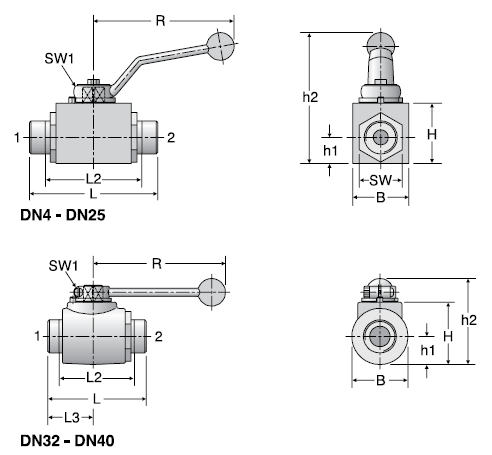

Parker KH | Ball Valves for Metric Bite-Type Fittings | EO-2
Bite-Type Part #: KH
24° Flareless / 24° Flareless |
TUBE |
END |
DN |
L2 |
L |
h1 |
h2 |
H |
R |
B |
SW |
SW1 |
Pressure |
|
EO |
EO2 |
||||||||||||
CF |
CF |
||||||||||||
KH06ZL |
6 |
4 |
53 |
67 |
10.0 |
55.0 |
25 |
76 |
20 |
19 |
7 |
500 |
500 |
KH08ZL |
8 |
6 |
53 |
67 |
10.0 |
55.0 |
25 |
76 |
20 |
19 |
7 |
500 |
500 |
KH10ZL |
10 |
8 |
61 |
75 |
14.5 |
68.0 |
35 |
100 |
30 |
24 |
8 |
500 |
500 |
KH12ZL |
12 |
10 |
61 |
75 |
14.5 |
68.0 |
35 |
100 |
30 |
24 |
8 |
500 |
500 |
KH15ZL |
15 |
12 |
69 |
83 |
17.0 |
92.0 |
40 |
112 |
35 |
30 |
10 |
500 |
500 |
KH18ZL |
18 |
16 |
67 |
82 |
20.0 |
105.0 |
45 |
166 |
45 |
36 |
11 |
400 |
400 |
KH22ZL |
22 |
20 |
84 |
99 |
24.0 |
113.0 |
55 |
187 |
45 |
41 |
14 |
400 |
400 |
KH28ZL |
28 |
25 |
93 |
108 |
26.0 |
118.0 |
60 |
187 |
55 |
50 |
14 |
400 |
400 |
KH35ZL |
35 |
32 |
100 |
121 |
36.5 |
180.5 |
80 |
320 |
73 |
60 |
17 |
315 |
315 |
KH42ZL |
42 |
40 |
96 |
118 |
42.5 |
190.5 |
90 |
320 |
85 |
70 |
17 |
315 |
315 |
KH08ZS |
8 |
4 |
59 |
73 |
10.0 |
55.0 |
25 |
76 |
20 |
19 |
7 |
500 |
500 |
KH10ZS |
10 |
6 |
58 |
73 |
10.0 |
55.0 |
25 |
76 |
20 |
19 |
7 |
500 |
500 |
KH12ZS |
12 |
8 |
62 |
77 |
14.5 |
68.0 |
35 |
100 |
30 |
24 |
8 |
500 |
500 |
KH14ZS |
14 |
10 |
65 |
81 |
14.5 |
68.0 |
35 |
100 |
30 |
24 |
8 |
500 |
500 |
KH16ZS |
16 |
12 |
70 |
87 |
17.0 |
92.0 |
40 |
112 |
35 |
30 |
10 |
500 |
500 |
KH20ZS |
20 |
16 |
69 |
90 |
20.0 |
105.0 |
45 |
166 |
45 |
36 |
11 |
400 |
400 |
KH25ZS |
25 |
20 |
83 |
107 |
24.0 |
113.0 |
55 |
187 |
45 |
41 |
14 |
400 |
400 |
KH30ZS |
30 |
25 |
93 |
120 |
26.0 |
118.0 |
60 |
187 |
55 |
50 |
14 |
400 |
400 |
KH38ZS |
38 |
32 |
95 |
127 |
36.5 |
180.5 |
80 |
320 |
73 |
60 |
17 |
315 |
315 |
Flareless Fittings with Seal
for Metric Tubing | Parker EO-2
The EO-2 series are high-pressure metric tube fittings combining bite type technology with elastomeric seal on all joints.
The EO-2 fittings are true metric design, conforming to 24° bite-type standards such as ISO 88434-1, DIN 2353 or DIN 3861. The EO-2 fittings come in three series: LL, L and S (very light, light, standard/heavy)
The EO-2 is similar to EO – it consists of a body, a progressive ring (ferrule) and a nut – with an addition of elastomeric seal. The elastomeric seal is located between the inner cone of the fitting body and the tube surface, blocking the only possible leak path.
EO-2 fitting bodies are available in over thirty configurations. The shaped products (i.e., elbows, tees, crosses) are hot forged, then machined to the stringent EO-2 fitting specifications. The forging process used by Parker further improves the strength and metallurgical properties of the fitting material.
