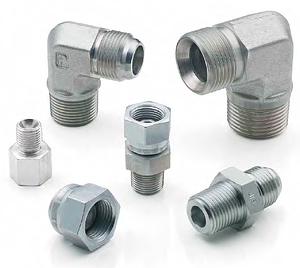

    Parer JIS Fittings JIS fittings are typically used as hose adapters on equipment designed and/or manufactured in Japan and Korea. Parker’s JIS adapters are designed with 30° flare and 60° cone connections and typically incorporate BSP threads.

    Below is the selection of T4 (30° flare, BSPP threads).

    Please note that KA (Komatsu flare) and K4 (BS B5200) adapters, are similar to JIS style fittings but KA/K4 FITTINGS ARE NOT INTERCHANGABLE WITH JIS FITTINGS.

    List of Parker 30° Flare JIS fitting configurations available from Motion & Flow Control Products, Inc.



    Parker F3T4: BSPT to 30-Deg Flare Male Connector

    BSPT / 30° Flare

    F3T4

     Parker PNMT4: JIS 30-Degree Plug

    30 Flare Plug

    PNMT4

    Parker FNMT4: JIS 30-Deg Cap

    Bulkhead Union

    FNMT4

    Parker V3T4: JIS 30-Deg Flare to BSPT 45-Deg Male Elbow

    BSPT / 30° Flare

    V3T4

    parker-c3t4

    BSPT / 30° Flare

    C3T4

    60 Cone JIS Fittings



    Product Details | JIS Fittings

    Parker JIS Fittings and Adapters

    Parker Pipe Fittings

    JIS fittings are typically used as hose adapters on equipment designed and/or manufactured in Japan and Korea. Parker’s JIS adapters are designed with 30° flare and 60° cone connections and typically incorporate BSP threads.

    Parker JIS adapters are designed with BSPP and BSPT port ends and two styles of hose ends: T4 (30° flare, BSPP threads) and P4 (60° cone, BSPP threads). Two additional Parker series of tube fittings, KA (Komatsu flare) and K4 (BS B5200) adapters, are similar to JIS style fittings but KA/K4 FITTINGS ARE NOT INTERCHANGABLE WITH JIS FITTINGS.
