Air & Multipurpose Industrial Hoses | Parker | SUPER-LOK™ GS Push-On Hose | 7211 Series

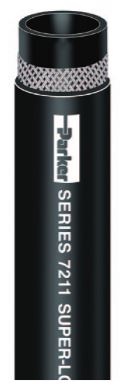

Parker SUPER-LOK GS 7211 Series Hose


Parker Series 7211 is a versatile push-on hose designed to handle air, mild chemicals and water. The hose construction incorporates a silicone-free tube that does not contaminate air powered paint spray systems, and is compatible with light oil mists found in air tool lubricating systems. The braided textile reinforcement is applied at a precise angle to provide kink resistance and superior coupling retention—push-on couplings do not require bands, clamps or special tools for installation. The cover is resistant to abrasion, heat and ozone, and is available in multiple standard colors for color-coded identification.

Note: Do not use with oil or refined fuel. Do not use bands or clamps to attach push-on couplings.



Parker SUPER-LOK GS 7211 Series Hose Features

TUBE Black EPDM; ARPM Class C oil resistance
REINFORCEMENT One textile braid
COVER Black, blue, gray, green, or red EPDM; smooth finish
TEMPERATURE RANGE

-40°F to 212°F (-40°C to 100°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS ARPM class C oil resistant tube
APPLICATIONS
  • Air (including oil mist), mild chemicals, water
  • Air operated paint systems, air tools, transfer lines, vacuum lines
  • Agriculture, construction, general industrial; automotive/factory color-coded assembly equipment
VACUUM 28" Hg
PACKAGING Reels
COLOR CODES BK (black), BL (blue), GN (green), GY (gray), RD (red)

Parker SUPER-LOK GS 7211 Series Hose Specifications

Part Number

ID

Reinf
Braids

OD

Min Bend Rad

Max Rec WP

Perm
Cplg
Rec

in

in

in

psi

7211-251BK

1/4

1

0.494

3.0

300

HY

7211-251BL

1/4

1

0.494

3.0

300

HY

7211-251GN

1/4

1

0.494

3.0

300

HY

7211-251GY

1/4

1

0.494

3.0

300

HY

7211-251RD

1/4

1

0.494

3.0

300

HY

7211-381BK

3/8

1

0.617

3.0

300

HY

7211-381BL

3/8

1

0.617

3.0

300

HY

7211-381GN

3/8

1

0.617

3.0

300

HY

7211-381GY

3/8

1

0.617

3.0

300

HY

7211-381RD

3/8

1

0.617

3.0

300

HY

7211-501BK

1/2

1

0.750

5.0

300

HY

7211-501BL

1/2

1

0.750

5.0

300

HY

7211-501GN

1/2

1

0.750

5.0

300

HY

7211-501GY

1/2

1

0.750

5.0

300

HY

7211-501RD

1/2

1

0.750

5.0

300

HY

*Permanent Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

 Reattachable Couplings: Parker Series 82 Push-Lok couplings.

„



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
