Food & Beverage Industrial Hoses | Parker | Food Discharge Hose (Natural Rubber Tube) | SS231 Series

Note: As of November 2016, the Series SS231 Food Discharge Hose has been discontinued by Parker. The SS232 Heavy Duty Dry Food Hose is recommended as a replacement.

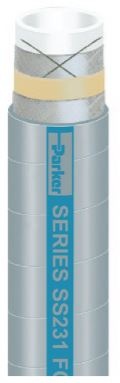

Series SS231 is a medium pressure discharge hose designed to handle dry abrasive materials such as grains, granules, pellets and powders; and non-fatty and non-oily foods, liquids, sanitary products and potable water in a variety of transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth, bacteria-free tube that will not impart taste or odor, and is resistant to abrasion. The natural rubber cover is resistant to abrasion, mild chemicals and ozone. Series SS231 incorporates dual static wires to conduct an electrical charge to ground.



TUBE White natural rubber
REINFORCEMENT Multiple textile plies with dual static wire
COVER Gray natural rubber; wrapped finish
TEMPERATURE RANGE

-40°F to 150°F (-40°C to 66°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS FDA, PMO, USDA, 3-A
APPLICATIONS
  • Flour, dry abrasive materials, grains, granules, pellets, powders, sugar
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer, delivery, transport
VACUUM Not recommended
PACKAGING Coils

Part Number

ID

Reinf
Plies

OD

Max
Rec WP

Std Pack Qty

in

in

psi

ft

SS231-2000

2

2

2.844

200

100

SS231-2500

2-1/2

2

3.344

200

100

SS231-3000

3

2

3.844

140

100

SS231-4000

4

2

4.844

120

100

SS231-6000

6

2

6.844

110

100

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.
