Food & Beverage Industrial Hoses | Parker | Food Suction Hose (Chlorobutyl Tube) | SW330 Series

Note: As of November 2016, the Series SW330 Food Suction Hose has been discontinued by Parker. The SW630 Titanflex Food Suction Hose is recommended as a replacement.

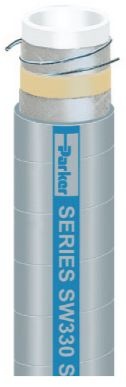

Series SW330 is a suction and discharge hose designed to handle non-fatty and non-oily foods, liquids, sanitary products and potable water in a variety of food transfer applications. The hose is manufactured using polished stainless steel mandrels for an ultra-smooth tube that will not impart taste or odor, and is resistant to bacteria and microbes. The lightweight construction incorporates a dual wire helix that provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The EPDM cover is resistant to abrasion, mild chemicals and ozone.



TUBE White chlorobutyl
REINFORCEMENT Multiple textile plies with dual wire helix
COVER Gray EPDM; wrapped finish
TEMPERATURE RANGE

-40°F to 225°F (-40°C to 107°C)
DESIGN FACTOR 4:1
INDUSTRY STANDARDS FDA, PMO, USDA, 3-A
APPLICATIONS
  • Non-fatty and non-oily foods, liquids, milk, potable water, sanitary products
  • In-plant and tank transfer
  • Delivery, transport
VACUUM Full
PACKAGING Coils



Part Number

ID

Reinf
Plies

OD

Min Bend Rad

Max Rec WP

Std Pack Qty

in

in

in

psi

ft

SW330-1000

1

2

1.625

4.0

150

100

SW330-1500

1-1/2

2

2.188

6.0

150

100

SW330-2000

2

2

2.625

7.0

150

100

SW330-2500

2-1/2

2

3.250

8.0

150

100

SW330-3000

3

2

3.750

9.0

150

100

SW330-4000

4

2

4.750

12.0

150

100

*Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.

WARNING!

Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
„
