Petroleum Dispenser Industrial Hoses | Parker | Farm Pump/Gravity Tank Fuel Hose | 7175 Series

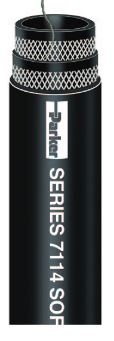

 SOFT-FLEX-2000-7114

Series 7175 is designed or low pressure gravity flow dispensing or transfer of refined fuels such as biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline and oil from drums, gravity-feed farm pumps, hand pumps, powered pumps, skid tanks and storage tanks where Underwriters Laboratories (UL) listing is not required. The softwall construction incorporates multiple textile plies of reinforcement for flexibility and a static wire as a path to conduct a static electrical charge to ground. The cover is resistant to abrasion, oil and ozone.



TUBE Black nitrile
REINFORCEMENT Multiple textile plies with static wire
COVER

Black chloroprene; smooth finish

TEMPERATURE RANGE -40°F to 180°F (-40°C to 82°C)
DESIGN FACTOR 4:1
APPLICATIONS
  • Biodiesel (to B20 in dedicated service), diesel, ethanol, gasoline, oil
  • Gravity tanks, hand pumps, powered pumps
  • Agriculture
VACUUM Not recommended
COMPARE TO Thermoid Premier Farm Tank
PACKAGING Reels



Part #

ID (in) Reinf Plies
OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
7175-75052 3/4 2 1.112 5.0 50 *
7175-100052 1 2 1.390 8.0 50 *

 *Couplings: Bulk farm pump hose couplings are not sold separately. Refer to CrimpSource at www.safehose.com for other coupling recommendations and crimp specifications.



Farm Pump Hose Factory Assemblies

Crimped on Brass Rigid Male NPT Couplings Each End

Part # (3/4" NPT Each End) ID (in) Length (ft)
71753PR-120 3/4 10
71753PR-144 3/4 12
71743PR-168 3/4 14

Part # (1" NPT Each End) ID (in) Length (ft)
71751PR-120 1 10
71751PR-144 1 12
71741PR-168 1 14
