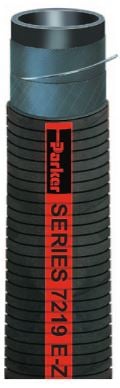

Parker EZ Form Series 7219 MP Hose

Series 7219 is an extremely flexible, lightweight, low pressure oil suction/return hose and vehicle fuel fill connector line--as well as a suction and discharge hose designed for refined fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and gasoline. The lightweight Greek corrugated hose construction incorporates a wire helix that provides full suction capability, superior kink resistance, minimal force-to-bend and a path to conduct a static electrical charge to ground. The unique Greek corrugations are tightly pitched and precision-engineered, providing extreme flexibility and kink resistance compared to the conventional rounded corrugation profile. The cover is resistant to oil and weathering. Series 7219 is capable of being routed through confined spaces where formed hose might normally be required.

Note:

  • Do not use in fuel dispensing or service applications requiring API, NFPA, UL, ULC or any other agency approval or listing. Hose does not meet SAE standards for mobile equipment or vehicle engine service.
  • Do not drag across sharp edges or highly abrasive surfaces.
  • For E-Z FORM™ coolant, vacuum and water hose, refer to Series 7395.

Parker EZ Form Series 7219 Hose Features

TUBE Black nitrile
REINFORCEMENT Multiple textile plies withl wire helix
COVER

Black chlorophene; Greek corrugated finish

TEMPERATURE RANGE

-20°F to 200°F (-29°C to 93°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol, gasoline, oil
  • Oil suction/return lines; vehicle fuel fill connector lines
  • Agricultural equipment, construction equipment, off-road equipment
VACUUM Full
PACKAGING

1/2" through 1": 25-ft coils in cartons; nominal 300-ft reels, 5-pc max, 25-ft min

1-1/8" through 4": Coils

Parker EZ Form Series 7219 Hose Specifications

Part # ID (in) Reinf Plies OD (in) Min Bend Rad (in) Max Rec WP (psi)
Perm Cplg Rec* Std Pack Qty
7219-0500025 1/2 2 0.906 1.4 75 HY 25
7219-0500300 1/2 2 0.906 1.4 75 HY 130
7219-0625025 5/8 2 1.024 1.8 75 HY 25
7219-0625300 5/8 2 1.024 1.8 75 HY 130
7219-0750025 3/4 2 1.142 2.0 75 HY 25
7219-0750300 3/4 2 1.142 2.0 75 HY 130
7219-1000025 1 2 1.378 2.0 75 HY 25
7219-1000300 1 2 1.378 2.0 75 HY 130
7219-1125025 1-1/8 2 1.496 2.6 75 * 25
7219-1125130 1-1/8 2 1.496 2.6 75 * 130
7219-1188025 1-3/16 2 1.575 3.0 75 * 25
7219-1188130 1-3/16 2 1.575 3.0 75 * 130
7219-1250025 1-1/4 2 1.693 3.1 75 HY 25
7219-1250130 1-1/4 2 1.693 3.1 75 HY 130
7219-1375025 1-3/8 2 1.811 3.7 75 * 25
7219-1375130 1-3/8 2 1.811 3.7 75 * 130
7219-1500025 1-1/2 2 1.929 3.9 75 43 25
7219-1500130 1-1/2 2 1.929 3.9 75 43 130
7219-1563025 1-9/16 2 2.008 4.3 75 * 25
219-1563130 1-9/16 2 2.008 4.3 75 * 130
7219-1625025 1-5/8 2 2.087 4.7 75 * 25
7219-1625130 1-5/8 2 2.087 4.7 75 * 130
7219-1750025 1-3/4 2 2.205 5.1 75 * 25
7219-1750130 1-3/4 2 2.205 5.1 75 * 130
7219-2000025 2 2 2.480 5.9 75 43 25
7219-2000130 2 2 2.480 5.9 75 43 130
7219-2188025 2-3/16 2 2.638 7.1 75 * 25
7219-2188130 2-3/16 2 2.638 7.1 75 * 130
7219-2250025 2-1/4 2 2.756 7.9 75 * 25
7219-2250130 2-1/4 2 2.756 7.9 75 * 130
7219-2375025 2-3/8 2 2.874 8.3 75 * 25
7219-2375130 2-3/8 2 2.874 8.3 75 * 130
7219-2500025 2-1/2 2 3.012 8.7 75 * 25
7219-2500130 2-1/2 2 3.012 8.7 75 * 130
7219-2563025 2-9/16 2 3.071 9.0 75 * 25
7219-2563130 2-9/16 2 3.071 9.0 75 * 130
7219-2750025 2-3/4 2 3.307 9.8 75 * 25
7219-2750130 2-3/4 2 3.307 9.8 75 * 130
7219-3000025 3 2 3.543 10.6 75 * 25
7219-3000130 3 2 3.543 10.6 75 * 130
7219-3125025 3-1/8 2 3.701 11.8 75 * 25
7219-3125130 3-1/8 2 3.701 11.8 75 * 130
7219-3375025 3-3/8 2 3.937 12.9 75 * 25
7219-3375130 3-3/8 2 3.937 12.9 75 * 130
7219-3500025 3-1/2 2 4.094 13.6 75 * 25
7219-3500130 3-1/2 2 4.094 13.6 75 * 130
7219-3563025 3-9/16 2 4.134 13.8 75 * 25
7219-3563130 3-9/16 2 4.134 13.8 75 * 130
7219-4000025 4 2 4.567 15.7 75 * 25
7219-4000130 4 2 4.567 15.7 75 * 130
