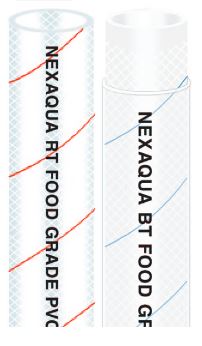

PVC Industrial Hoses | Parker | NEXAQUA Potable Water Hose | 162/164 Series

Nexaqua-162-164

Series 162 and 164 are designed as lightweight, reinforced PVC hoses for potable water. Each features a spiral tracer yarn for color-coded identification, Series 164 incorporates a white tube to inhibit te growth of algae. The all-PVC hose construction is resistant to abrasion, weathering and ultraviolet light.



TUBE

162: Clear PVC

164: White PVC

REINFORCEMENT

162: Multiple textile plies with red tracer

164: Multiple textile plies with blue tracer

COVER Clear PVC; smooth finish
TEMPERATURE RANGE

25°F to 150°F (-5°C to 65°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

INDUSTRY STANDARDS
  • FDA, RoHS complaint
  • Series 162 (only) NSF listed to maximum temperature 180°F (82°C)
APPLICATIONS
  • Potable water
  • Air, mild chemicals
PACKAGING Coils



Part #

(162 or 164)

ID (in) OD (in) Reinf Plies Max Rec WP @ 68°F (psi) Perm Cplg Rec
-06000250 3/8 .565 2 150 *
-08000250 1/2 .705 2 150 *
-10000250 5/8 .835 2 125 *
-12000250 3/4 .980 2 100 *
-16000250 1 1.230 2 75 *
-18000100 1-1/8 1.375 2 75 *

* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
