PVC Industrial Hoses | Parker | NEXSYN General Purpose EPDM/TPV Tubing | 709 Series

Nexsyn-G55

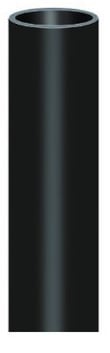

Series 709 tubing is extruded to close tolerances using specially designed thermoplastic vuclanizate (TPV) materials that perform like EPDM rubber. The mechanical and recovery properties are comparable to most vulcanized elastomers and superior to most thermoplastic elastomers. Series 709 is 25-35% lighter than PVC and rubber tubing of the same dimensions. This highly durable tubing is resistant to flex fatique, ozone and ultraviolet light, and has excellent resistance to a wide range of mild acids, alkalis and chemicals.



TUBE Black EDPM/TPV; 65A durometer
TEMPERATURE RANGE

-75°F to 180°F (-60°C to 82°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Mild acids, alkalis, chemicals; water
  • Drain lines, handle grips, light vacuum, peristaltic pumps
VACUUM Light
PACKAGING Cartons; coils



Part # ID (in) OD (in) Max Rec WP @ 68°F (psi)
709-03068102 3/16 3/8 40
709-04078102 1/4 7/16 40
709-06098102 3/8 8/16 35
709-08128102 1/2 3/4 35
709-10148102 5/8 7/8 30
709-12168100 3/4 1 30
709-14188100 7/8 1-1/8 30
709-16208100 1 1-1/4 25
