PVC Industrial Hoses | Parker | NEXWRAP Spiral Wrap Chafe Guard| 475 Series


Series 475 protects bundles of cable, hose or wire from abrasion and chemical attack, enabling easy and flexible routing of multiple lines without removing end terminals or couplings. The lightweight chafe guard installs and disassembles easily, with the open corrugations permitting individual lines and items to exit the bundle at any point in the harness.


MATERIAL Black or white linear low density polyethylene (LLDPE)

-50°F to 140°F (-45°C to 6°C)

  • Hose and tubing bundling, wire harness
  • Resin infusion (manufacturing with fiberglass injection)
  • Assembly lines, fabrication shops, general industrial, manufacturing
PACKAGING Reels, spools

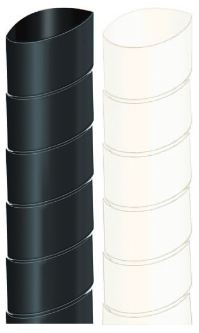

Series 475 - NEXWRAP Natural (White)

Part # ID (in) Recommended Harness Dia - Min (in) Recommended Harness Dia - Max (in)
475-06000704 3/8 3/16 1
475-08000504 1/2 5/16 1-1/2
475-12000501 3/4 1/2 1-1/2
475-16000401 1 3/4 2

Series 475 - NEXWRAP (Black)

Part # ID (in) Recommended Harness Dia - Min (in) Recommended Harness Dia - Max (in)
475-06008704 3/8 3/16 1
475-08008504 1/2 5/16 1-1/2
475-12008501 3/4 1/2 1-1/2
475-16008401 1 3/4 2


How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.



Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
