PVC Industrial Hoses | Parker | THORO-BRAID® Clear PVC Hose | 7581 Series

This product is no longer cataloged by manufacturer and no direct replacement is offered. The information below is for your reference only. Please contact us with your specifications and we can find a hose that meets your requirements.

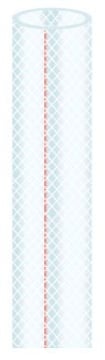

Thorobraid-7581

Series 7581 is a flexible PVC transfer hose for dry abrasive materials such as grains, granules, pellets and powders; beverages and potable water; non-fatty and non-oily foods, and sanitary products. This hose features a smooth tube that is abrasion resistant. will not impart taste or odor, and allows full flow. The clear PVC construction permits visual observation of materials being conveyed. Series 7581 also provides excellent general industrial service i air, flexible conduit and water applications. The red tracer yarn provides easily identifiable color-coding.



TUBE Clear PVC
REINFORCEMENT Multiple textile plies with longitudinal red tracer yarn
COVER Blue tint PVC; smooth finish
TEMPERATURE RANGE

14°F to 140°F (-10°C to 60°C)

Working pressures are at 68°F (20°C). Higher temperatures reduce the available working pressure.

INDUSTRY STANDARDS FDA
APPLICATIONS
  • Beverages, potable and pure water
  • Dry, abrasive materials, flour, grains, granules, pellets, powders, sugar
  • Air, flexible conduit, light vacuum, wire harness
VACUUM Not recommended
COMPARE TO Gates 7744; Jason 4511; Kentak 50H; Pacific Echo 410; Petzetakis 10205; Superflex BTC; Veyance Pliovic 200
PACKAGING Coils



Part # ID (in) OD (in) Reinf Plies Max Rec WP @ 68°F (psi) Perm Cplg Rec
7581-251 1/4 0.490 2 355 *
7581-381 3/8 0.600 2 315 *
7581-501 1/2 0.750 2 215 *
7581-631 5/8 0.870 2 185 *
7581-751 3/4 1.030 2 170 *
7581-1001 1 1.300 2 140 *
7581-1251 1-1/4 1.610 2 115 *
7581-1501 1-1/2 1.890 2 100 *
7581-2001  2 2.400 2 85 *

* Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.
