Specialty Industrial Hoses | Parker | SUPER-FLEX® FL-7 Barrier Fuel Line Hose | 389 Series


SUPER-FLEX-389

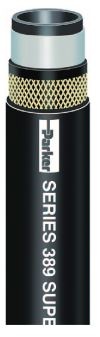

Series 389 is a fuel line/vapor emission hose for refined fuels such as biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol and gasoline. The hose incorporates a THV barrier to resist permeation, multiple aramid plies of reinforcement forcoupling retention, durability and kink resistance, and the cover is resistant to abrasion, oil and weathering. The hose is flexible for easy routing in and around small engines and small engine compartments. Series 389 surpasses all of the California Air Resource Board (CARB)/Small Off-Road Engine (SORE) and Environmental Protection Agency (EPA) stringent permeation requirements of 15g/m2/day. It also meets or exceeds SAEJ30R7 and SAE J30R14T2 specifications and is compatible with Parker SAE J2044 and J2045 Push-to-Connect fittings.

Note: Do not use in marine fuel applications. Refer to Series 7165.


TUBE Black nitrile and translucent THV barrier
REINFORCEMENT Multiple aramid plies
COVER

Black CPE, smooth finish
TEMPERATURE RANGE -40°F to 257°F (-40°C to 125°C)
DESIGN FACTOR 5:1
INDUSTRY STANDARDS CARB 2006 SORE, EPA, SAE J30R7, SAE J30R14T2
APPLICATIONS
  • Low pressure fuel lines on blowers, grinders, mowers, off-road engines, pressure washers, saws
  • Biodiesel (to B20 in dedicated and non-dedicated service), diesel, ethanol, gasoline
  • Agricultural equipment, autos, buses, construction equipment, off-road equipment
VACUUM 24" Hg (3/16" through 3/8" ID); 10" Hg (1/2" through 3/4" ID)
COMPARE TO Avon Greenbar 700; Gates 4219B
PACKAGING Reels

Bulk Hose

Note: Parker's 389 series is now rated to 100 PSI maximum working pressure in all sizes.

Part #

 ID (in) Reinf Plies
 OD (in) Min Bend Rad (in) Max Rec WP (psi) Perm Cplg Rec*
38903 3/16 2 0.406 1.3 100 55
38904 1/4 2 0.500 1.5 100 HY
38905 5/16 2 0.562 2.0 100 HY
38906 3/8 2 0.625 2.5 100 HY
38908 1/2 2 0.781 4.0 100 HY
38910 5/8 2 0.938 5.0 100 *
38912 3/4 2 1.125 6.0 100 *

 *Couplings: Refer to CrimpSource at www.safehose.com for coupling recommendations and crimp specifications.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
