Welding Industrial Hoses | Parker | Welding and Scarf Hose (Grade T Performance) | 7228T/7229T Series


 Welding-Scarfing-7228T-7229T

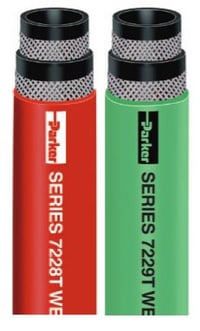

Series 7228T/7229T is a heavy duty welding and scarfing hose featuring a flame and oil resistant tube and cover. Red Series 7228T is compatible with commonly used fuel gases, including acetylene, hydrogen, natural gas, propane and propylene. Green Series 7229T is only for oxygen service. The non-blooming tube minimizes the migration of combustible waxes or plasticizers to the surface of the rubber. Single line welding hose is available in long continuous lengths, providing maximum versatility and ease of handling in a variety of applications where the fuel gas and oxygen sources are separated. The robust construction incorporates premium rubber compounds to provide Grade T performance, and the braided reinforcement provides working pressures greater than conventional welding hose, maximum kink resistance and secure coupling retention. The thick cover is resistant to abrasion, cuts, flame, gouges, mild chemicals, oil and ozone.

TUBE Black chloroprene
REINFORCEMENT Multiple textile braids
COVER

Series 7228T: Red chloroprene; smooth finish

Series 7121: Green chloroprene; smooth finish
TEMPERATURE RANGE

-40°F to 200°F (-40°C to 93°C)

DESIGN FACTOR 4:1
INDUSTRY STANDARDS None applicable
APPLICATIONS
  • Series 7228T: Acetylene, hydrogen, natural gas, propane, propylene
  • Series 7229T: Oxygen
  • Scarfing/deseaming; burning defective areas on the surface of ingots or semi-finished products such as billets
  • Scarfing/tapering: forging the ends of two pieces to be joined to avoid an enlarged joint
VACUUM Not recommended
COMPARE TO Thermoid Green GP/Oxygen
PACKAGING Reels


Series 7228T (Red - Acetylene line only)


Part #

 ID (in) Reinf Plies
 OD (in) Min Bend Rad (in) Max Rec WP (psi)
7228T-382 3/8 2 0.812 4.5 250
7228T-502 1/2 2 0.937 6.0 250

 *Couplings: Bulk welding hose couplings are not sold separately by Parker.

Series 7229T (Green - Oxygen line)

Part #

 ID (in) Reinf Plies
 OD (in) Min Bend Rad (in) Max Rec WP (psi)
7229T-382 3/8 2 0.812 4.5 250
7229T-502 1/2 2 0.937 6.0 250
7229T-502050 1/2 2 0.937 6.0 250
7229T-502100 1/2 2 0.937 6.0 250

 *Couplings: Bulk welding hose couplings are not sold separately by Parker.



How to Order

  • Visit One of Our ParkerStores
  • Click on the quote button below.
 ASK QUESTION!  REQUEST QUOTE





IMPORTANT!
Hose and hose fittings series must be correctly matched. Using any fittings other than those specifically designated by the hose manufacturer for use with each specific hose can lead to hose assembly failure. Hose assembly failures have lead to damage, injury and death.

California Prop 65 Warning WARNING: These products can expose you to chemicals including lead and/or DEHP and/or carbon black, which are known to the State of California to cause cancer or birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
