Polyurethane Tubing | Parker HUFR Series - MicroWeld™

Note: As of October 1, 2018, production of HUFR Series polyurethane tubing will be discontinued. 95FR Series tubing is recommended as a replacement.

Return to Plastic Tubing Selection Page

FEATURES:

Mono-wall construction eliminates the need for skiving tools or knives, reducing installation time
Excellent abrasion resistance
Silicone and halogen free
Weighs 36% less than equivalent covered tubing

Sizes and Specifications

Part Number	Tube O.D. (in)	Tube I.D. (in)	Average Wall Thickness (in)	Working Pressure (psi, at 73°F/23°C)	Minimum Burst (psi, at 73°F/23°C)	Minimum Bend Radius (in)
HUFR-4-045-XX-0500	1/4	.160	.045	175	525	.50
HUFR-6-062-XX-0500	3/8	.251	.062	150	450	.75
HUFR-8-090-XX-0250	1/2	.320	.090	160	475	1.00

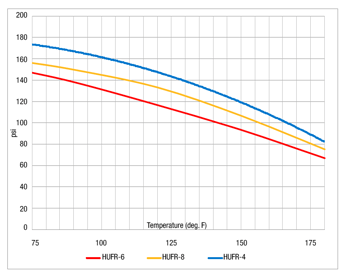

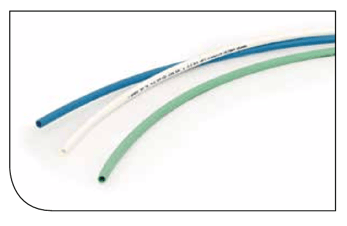

Available Colors	Maximum Working Pressure (psig)

Notes

The suggested operating temperature range for service at rated pressures with compatible fluids is -40°F to 180°F (-40°C to 82°C)
Use with Prestolok PLM fittings
A tube support should be used with HUFR series tubing for maximum holding power where end loading, vibration or pressure spikes may occur. See compatibility chart for plastic tubing with fittings.
