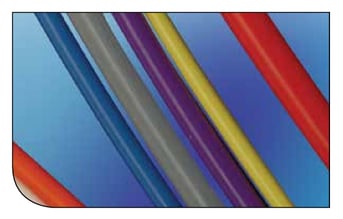

PTFE Beading | Parker Series TFB - Fractional

    Note: As of August 1, 2018, production of Series TFB PTFE beading will be discontinued. Please contact our Sales department for suggested replacements.


    Return to Plastic Tubing Selection Page

    FEATURES:

    • Virgin polytetrafluoroethylene resin
    • Chemically inert
    • Lowest coefficient of friction
    • Superior dielectric strength
    • Excellent heat resistance
    • Self extinguishing
    • Non-wetting
    • Excellent flexlife
    • Laser markable

    CERTIFICATIONS

    • ASTM D1710, Type 1, Grade 1, Class B
    • ASTM D3295
    • FDA Compliant
    • USP Class VI Compliant
    • VW1, UL-83 (natural)

    Sizes and Specifications

    Colors: Natural, Translucent

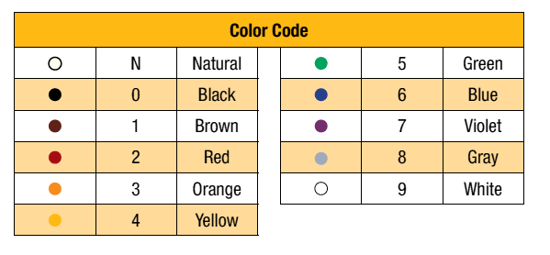

    (Other colors available as custom run - see color code table below)


    Part #

    O.D.

    (in)

    Tolerance

    (in)
    TFB015 .015 ± .002
    TFB020 .020 ± .002
    TFB025 .025 ± .002
    TFB028 .028 ± .002
    TFB031 .031 ± .002
    TFB035 .035 ± .002
    TFB039 .039 ± .002
    TFB043 .043 ± .002
    TFB047 .047 ± .002
    TFL050 .050 ± .002
    TFB055 .055 ± .003
    TFB060 .060 ± .003
    TFB062 .062 ± .003
    TFB070 .070 ± .003
    TFB072 .072 ± .003
    TFB078 .078 ± .004
    TFB080 .080 ± .004
    TFB084 .084 ± .004
    TFB090 .090 ± .004
    TFB094 .094 ± .004
    TFB100 .100 ± .004
    TFB109 .109 ± .004
    TFB115 .115 ± .004
    TFB125 .125 ± .004
    TFB150 .150 ± .004
    TFB188 .188 ± .004



    Notes

    • Working Temperature: -100°F to 500°F (-75°C to 260°C)
