Base Bar Mounting Style NB for 2MNR Series Tie Rod Cylinders | Parker

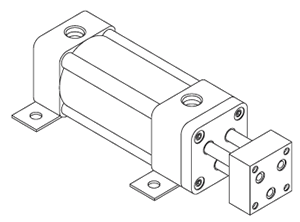

2MNR NB Mounting Style

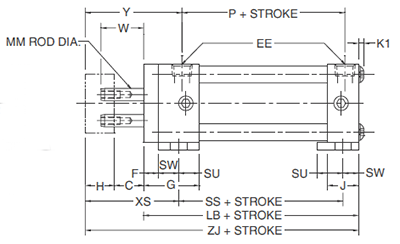

2MNR NB Mounting Style Head Dimensions2MNR NB Mounting Style Body Dimensions

Style NB

 Bore Size
Rod Dia. MM AB  C
E
EE (NPTF)
F G H
J K1 LH ±.000 ST SU SW TS US W XS Y Y LB P SS ZJ
1-1/2 8 7/16 3/4 2 1/4 3/8 1-1/2 3/4 15/16 1/8 15/16 1/4 1-1/8 3/8 2-3/4 3-1/2 1.10 2-1/4 2-3/4 2-3/4 4 2-5/16 2-7/8 5-1/2
 2 12 7/16 3/4 2-1/2 1/4 3/8 1-1/2 3/4 15/16 5/32 15/16 1/4 1-1/8 3/8 3-1/4 4 1.10 2-1/4 2-3/4 2-3/4 4 2-5/16 2-7/8 5-1/2
 2-1/2 16 7/16 3/4 3 3/8 3/8 1-1/2  1 15/16 5/32 15/16 3/8 1-1/8 3/8 3-3/4 4-1/2 1.35 2-1/2 3-1/16 3-1/16 4-1/8 2-3/8 3 5-7/8
 3-1/4 16 9/16 3/4 3-3/4 1/2 5/8 1-3/4  1 1-3/16 3/16 1-3/16 1/2 1-1/4 1/2 4-3/4 5-3/4 1.10 2-7/8 3-7/16 3-7/16 4-7/8 2-5/8 3-1/4 6-5/8
 4 16 9/16 3/4 4-1/2 1/2 5/8 1-3/4  1 1-3/16 3/16 1-3/16 1/2 1-1/4 1/2 5-1/2 6-1/2 1.10 2-7/8 3-7/16 3-7/16 4-7/8 2-5/8 3-1/4 6-5/8
