Cap Clevis Mount Styles BB & BC for 4MAJ Series Tie Rod Cylinders, 6" & 8" Bore Sizes | Parker

Style BB (NFPA MP1) - Cap Fixed Clevis


 4MAJ Large Bore BB Mounting Style

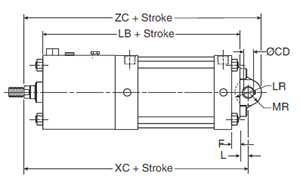

4MAJ Large Bore BB Mounting Style Head Dimensions4MAJ Large Bore BB Mounting Style Body Dimensions

Style BC (NFPA MP2) - Cap Detachable Clevis

4MAJ Large Bore BC Mounting Style

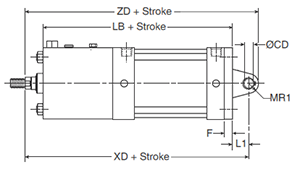

4MAJ Large Bore BC Mounting Style Head Dimensions 4MAJ Large Bore BC Mounting Style Body Dimensions

Styles BB & BC

 Bore Size
Rod # Rod Dia. MM CB +.000 -.002 CD CW
E
F L LR L1 MR MR1 Add Stroke LB XC XD ZC ZD
6 1 1-3/8 1.500 1.001 0.750 6.500 0.750 0.750 1.250 1.500 1.125 1.000 12.125 14.500 15.250 15.625 16.250
6 3 1-3/4 1.500 1.001 0.750 6.500 0.750 0.750 1.250 1.500 1.125 1.000 12.625 15.250 16.000 16.375 17.000
8 1 1-3/8 1.500 1.001 0.750 8.500 0.750 0.750 1.250 1.500 1.125 1.000 12.500 14.875 15.625 16.000 16.625
8 3 1-3/4 1.500 1.001 0.750 8.500 0.750 0.750 1.250 1.500 1.125 1.000 13.000 15.625 16.375 16.750 17.375
